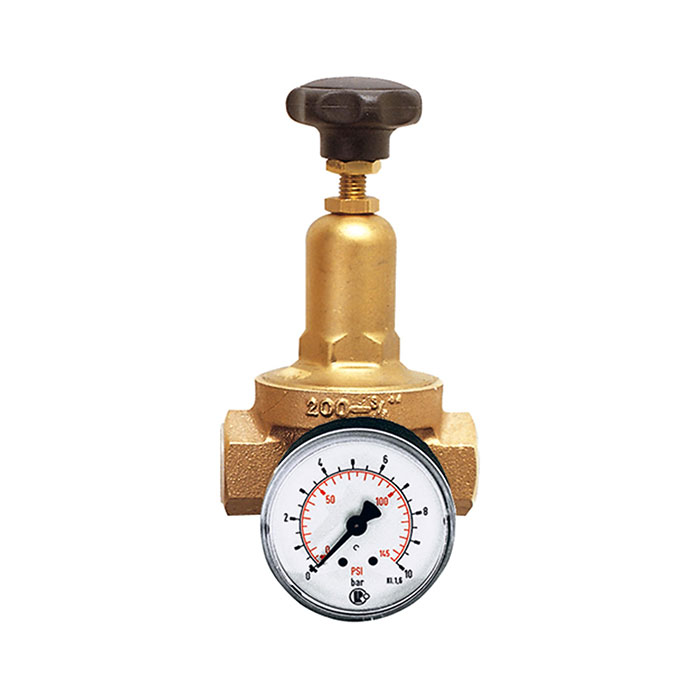

RIEGLER Pressure regulator DRV 200, Standard design, G 2, 1.5 - 8 bar
Type number: 200.08
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure regulator DRV 200, Standard design, non-reversible, incl. pressure gauge, G 2, Control range 1.5 - 8 bar
| Inlet pressure max. | 25 bar |
| Temperature range min. | -15 °C |
| Temperature range max. | 100 °C |
| Housing | Gunmetal 2.1096.01 |
| Sealing material | NBR |
| Spring cover | Gray cast iron |
| Thread | G 2 |
| Control range min. | 1.5 bar |
| Control range max. | 8 bar |
| Flow rate kvs-value | 7.2 m³/h |
| DN | 50 |
| A | 146.5 mm |
| B | 376 mm |
| C | 306 mm |
| D | 70 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Reduction ratio max. | 0 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101432] RIEGLER Pressure regulator DRV 200, Standard design, G 1 1/2, 1.5 - 8 bar](/web/image/product.template/169406/image_128/%5B101432%5D%20RIEGLER%20Pressure%20regulator%20DRV%20200%2C%20Standard%20design%2C%20G%201%201-2%2C%201.5%20-%208%20bar?unique=2d48542)
|
Type number: 200.07 |
490.72 € | |
![[101431] RIEGLER Pressure regulator DRV 200, Standard design, G 1 1/4, 1.5 - 8 bar](/web/image/product.template/169405/image_128/%5B101431%5D%20RIEGLER%20Pressure%20regulator%20DRV%20200%2C%20Standard%20design%2C%20G%201%201-4%2C%201.5%20-%208%20bar?unique=0195013)
|
Type number: 200.06 |
427.69 € | |
![[101430] RIEGLER Pressure regulator DRV 200, Standard design, G 1, 1.5 - 8 bar](/web/image/product.template/169404/image_128/%5B101430%5D%20RIEGLER%20Pressure%20regulator%20DRV%20200%2C%20Standard%20design%2C%20G%201%2C%201.5%20-%208%20bar?unique=a562900)
|
Type number: 200.05 |
305.76 € | |
![[101428] RIEGLER Pressure regulator DRV 200, Standard design, G 1/2, 1.5 - 8 bar](/web/image/product.template/169402/image_128/%5B101428%5D%20RIEGLER%20Pressure%20regulator%20DRV%20200%2C%20Standard%20design%2C%20G%201-2%2C%201.5%20-%208%20bar?unique=7577139)
|
Type number: 200.03 |
154.72 € | |
![[101426] RIEGLER Pressure regulator DRV 200, Standard design, G 1/4, 1.5 - 8 bar](/web/image/product.template/169400/image_128/%5B101426%5D%20RIEGLER%20Pressure%20regulator%20DRV%20200%2C%20Standard%20design%2C%20G%201-4%2C%201.5%20-%208%20bar?unique=306a90b)
|
Type number: 200.01 |
119.35 € | |
![[101429] RIEGLER Pressure regulator DRV 200, Standard design, G 3/4, 1.5 - 8 bar](/web/image/product.template/169403/image_128/%5B101429%5D%20RIEGLER%20Pressure%20regulator%20DRV%20200%2C%20Standard%20design%2C%20G%203-4%2C%201.5%20-%208%20bar?unique=c3fed5e)
|
Type number: 200.04 |
197.56 € | |
![[101427] RIEGLER Pressure regulator DRV 200, Standard design, G 3/8, 1.5 - 8 bar](/web/image/product.template/169401/image_128/%5B101427%5D%20RIEGLER%20Pressure%20regulator%20DRV%20200%2C%20Standard%20design%2C%20G%203-8%2C%201.5%20-%208%20bar?unique=69957ca)
|
Type number: 200.02 |
119.35 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101244] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/140679/image_128/%5B101244%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=2733aaa)
|
Type number: 217-KD |
6.30 € | |

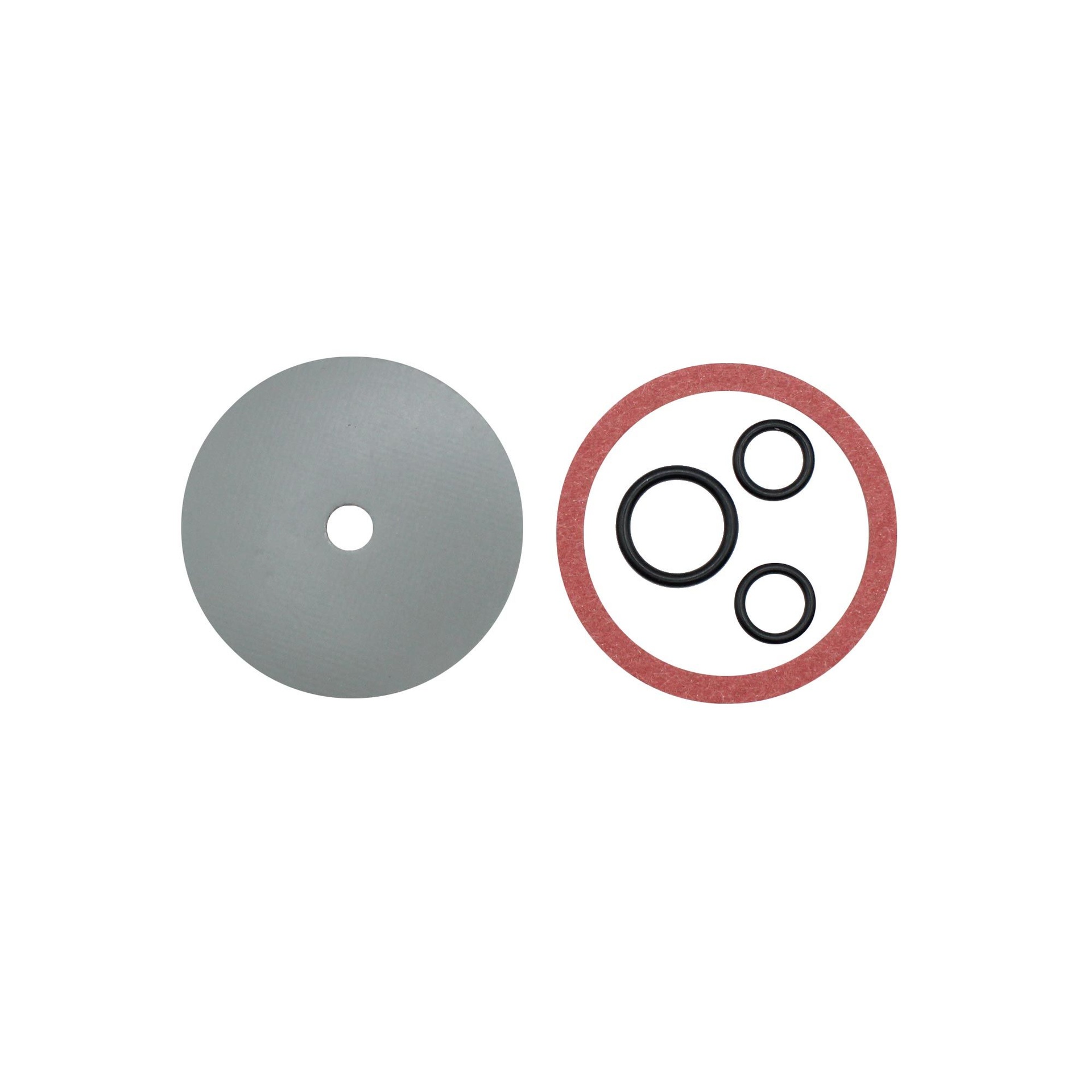

![[101452] RIEGLER Wear part set, for pressure regulator DRV 200, G 2](/web/image/product.template/169426/image_128/%5B101452%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20pressure%20regulator%20DRV%20200%2C%20G%202?unique=cd239d4)
|
Type number: 22.208.4 |
99.01 € | |
