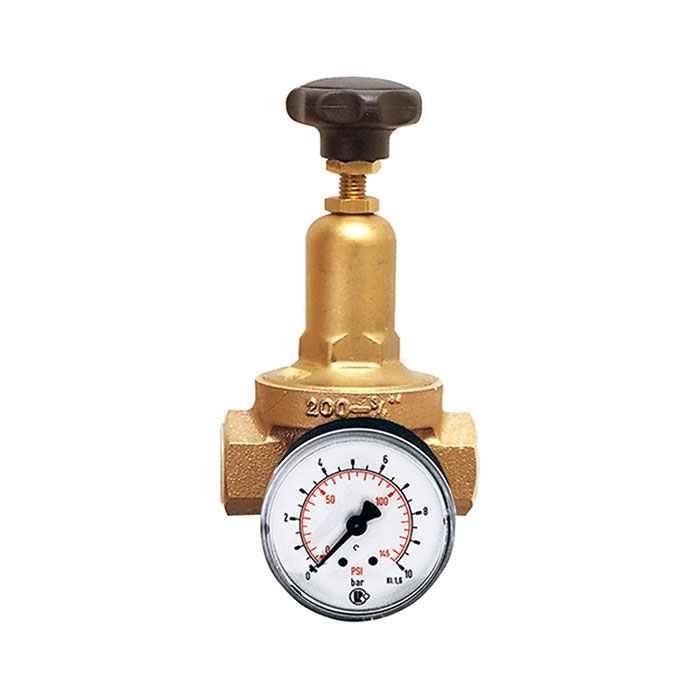

RIEGLER Pressure regulator DRV 200, Standard design, G 1 1/2, 1.5 - 8 bar
Type number: 200.07
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure regulator DRV 200 made of gunmetal 2.1096.01, for compressed air preparation, 1.5 bar - Type 200.07
The RIEGLER DRV 200 pressure regulator, standard version, G 1 1/2, 1.5 - 8 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of gunmetal 2.1096.01 with NBR seals. The control range extends from 1.5 bar to 8 bar with a maximum inlet pressure of 25 bar. The temperature range is between -15 °C and 100 °C. Connection thread G 1 1/2 - suitable for common industry standards. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 25 bar |
| Temperature range min. | -15 °C |
| Temperature range max. | 100 °C |
| Housing | Gunmetal 2.1096.01 |
| Sealing material | NBR |
| Spring cover | Gray cast iron |
| Thread | G 1 1/2 |
| Control range min. | 1.5 bar |
| Control range max. | 8 bar |
| Flow rate kvs-value | 4.5 m³/h |
| DN | 40 |
| A | 108 mm |
| B | 323 mm |
| C | 262 mm |
| D | 61 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Reduction ratio max. | 0 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101431] RIEGLER Pressure regulator DRV 200, Standard design, G 1 1/4, 1.5 - 8 bar](/web/image/product.template/169405/image_128/%5B101431%5D%20RIEGLER%20Pressure%20regulator%20DRV%20200%2C%20Standard%20design%2C%20G%201%201-4%2C%201.5%20-%208%20bar?unique=21d2197)
|
Type number: 200.06 |
421.83 € | |
![[101430] RIEGLER Pressure regulator DRV 200, Standard design, G 1, 1.5 - 8 bar](/web/image/product.template/169404/image_128/%5B101430%5D%20RIEGLER%20Pressure%20regulator%20DRV%20200%2C%20Standard%20design%2C%20G%201%2C%201.5%20-%208%20bar?unique=609ff7e)
|
Type number: 200.05 |
305.75 € | |
![[101428] RIEGLER Pressure regulator DRV 200, Standard design, G 1/2, 1.5 - 8 bar](/web/image/product.template/169402/image_128/%5B101428%5D%20RIEGLER%20Pressure%20regulator%20DRV%20200%2C%20Standard%20design%2C%20G%201-2%2C%201.5%20-%208%20bar?unique=98eaf42)
|
Type number: 200.03 |
154.71 € | |
![[101426] RIEGLER Pressure regulator DRV 200, Standard design, G 1/4, 1.5 - 8 bar](/web/image/product.template/169400/image_128/%5B101426%5D%20RIEGLER%20Pressure%20regulator%20DRV%20200%2C%20Standard%20design%2C%20G%201-4%2C%201.5%20-%208%20bar?unique=4ac9137)
|
Type number: 200.01 |
117.71 € | |
![[101433] RIEGLER Pressure regulator DRV 200, Standard design, G 2, 1.5 - 8 bar](/web/image/product.template/169407/image_128/%5B101433%5D%20RIEGLER%20Pressure%20regulator%20DRV%20200%2C%20Standard%20design%2C%20G%202%2C%201.5%20-%208%20bar?unique=b5eb206)
|
Type number: 200.08 |
732.65 € | |
![[101429] RIEGLER Pressure regulator DRV 200, Standard design, G 3/4, 1.5 - 8 bar](/web/image/product.template/169403/image_128/%5B101429%5D%20RIEGLER%20Pressure%20regulator%20DRV%20200%2C%20Standard%20design%2C%20G%203-4%2C%201.5%20-%208%20bar?unique=dc17acf)
|
Type number: 200.04 |
197.55 € | |
![[101427] RIEGLER Pressure regulator DRV 200, Standard design, G 3/8, 1.5 - 8 bar](/web/image/product.template/169401/image_128/%5B101427%5D%20RIEGLER%20Pressure%20regulator%20DRV%20200%2C%20Standard%20design%2C%20G%203-8%2C%201.5%20-%208%20bar?unique=9966e4b)
|
Type number: 200.02 |
117.71 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101244] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/140679/image_128/%5B101244%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=f8b5efb)
|
Type number: 217-KD |
6.25 € | |

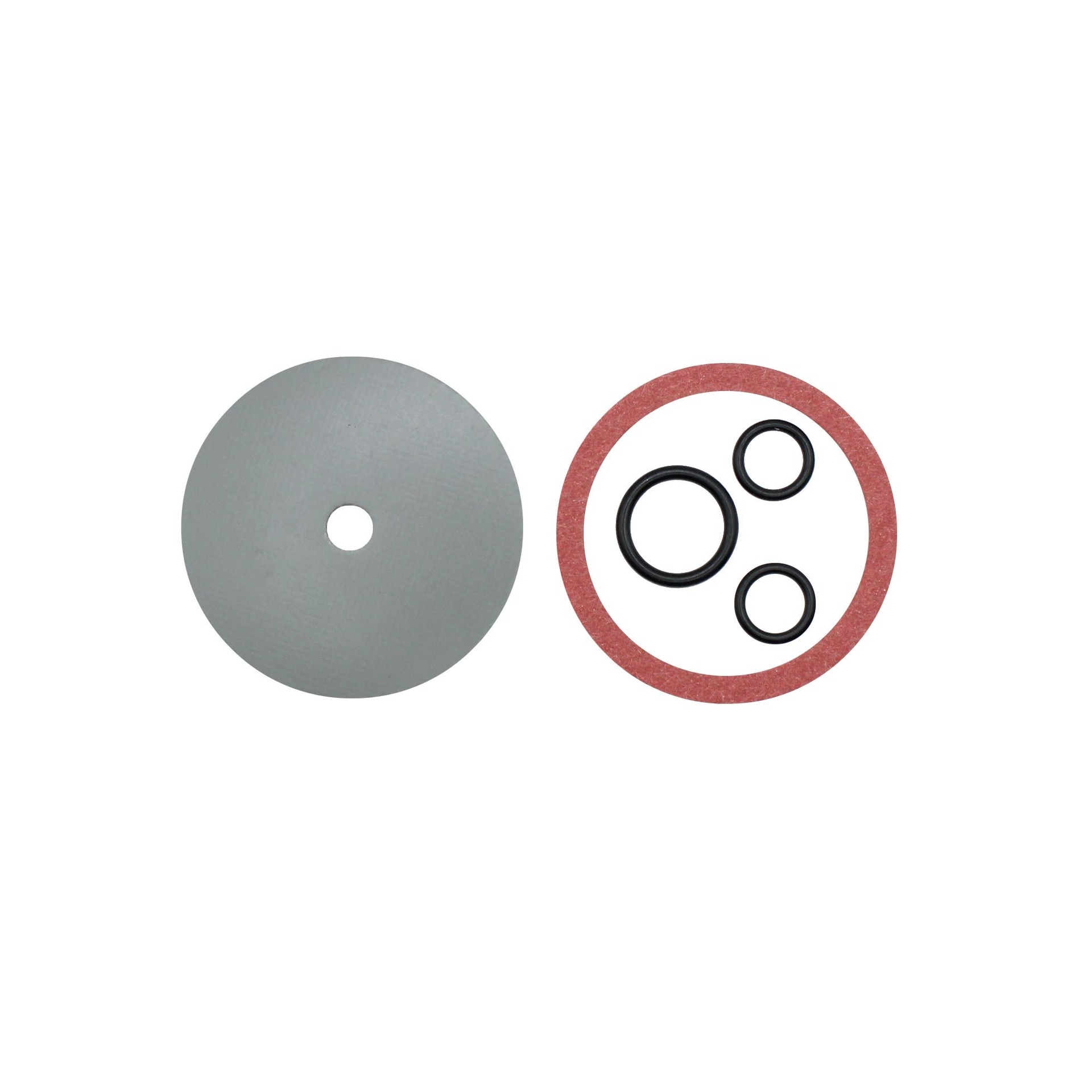

![[101451] RIEGLER Wear part set, for pressure regulator DRV 200, G 1 1/2](/web/image/product.template/169425/image_128/%5B101451%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20pressure%20regulator%20DRV%20200%2C%20G%201%201-2?unique=c026b47)
|
