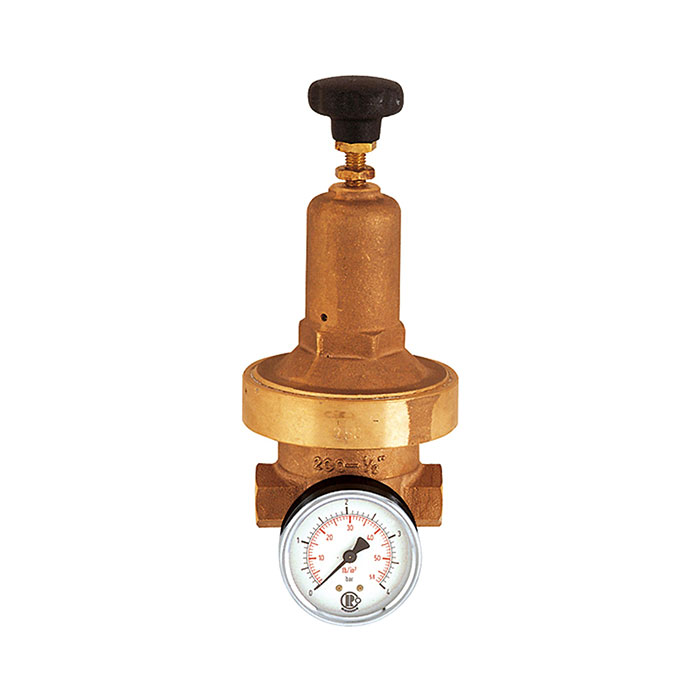

RIEGLER Pressure regulator DRV 250, Low pressure design, G 1/4, 0.2-2 bar
Type number: 300.01
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure regulator DRV 250, low-pressure version, non-reversible, incl. pressure gauge, G 1/4, control range 0.2 - 2 bar, PE max. 25 bar
| Inlet pressure max. | 25 bar |
| Temperature range min. | -15 °C |
| Temperature range max. | 100 °C |
| Housing | Gunmetal 2.1096.01 |
| Sealing material | NBR |
| Spring cover | Pressed brass |
| Thread | G 1/4 |
| Control range min. | 0.2 bar |
| Control range max. | 2 bar |
| Flow rate kvs-value | 0.5 m³/h |
| DN | 8 |
| A | 70 mm |
| B | 185.5 mm |
| C | 140 mm |
| D | 45.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Reduction ratio max. | 0 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

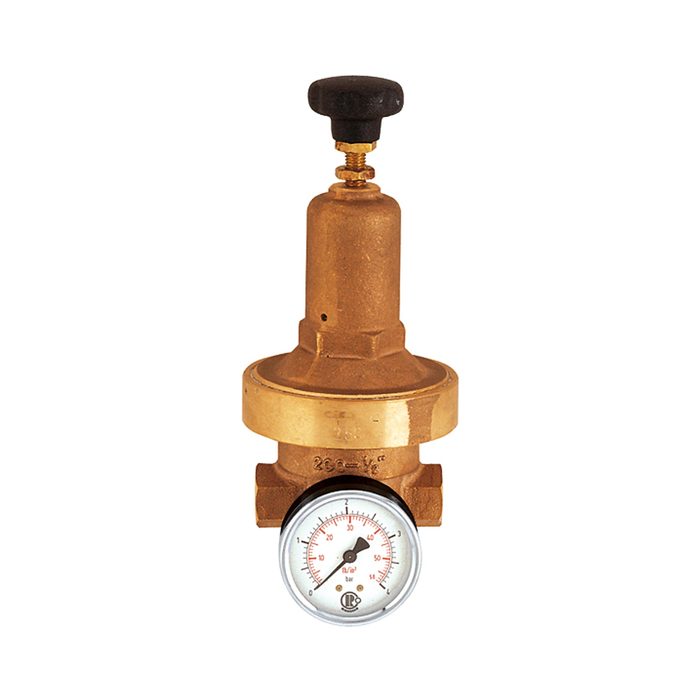

![[101436] RIEGLER Pressure regulator DRV 250, Low pressure design, G 1/2, 0.2-2 bar](/web/image/product.template/169410/image_128/%5B101436%5D%20RIEGLER%20Pressure%20regulator%20DRV%20250%2C%20Low%20pressure%20design%2C%20G%201-2%2C%200.2-2%20bar?unique=fe7066d)
|
Type number: 300.03 |
373.90 € | |
![[101435] RIEGLER Pressure regulator DRV 250, Low pressure design, G 3/8, 0.2-2 bar](/web/image/product.template/169409/image_128/%5B101435%5D%20RIEGLER%20Pressure%20regulator%20DRV%20250%2C%20Low%20pressure%20design%2C%20G%203-8%2C%200.2-2%20bar?unique=6fa9132)
|
Type number: 300.02 |
169.22 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

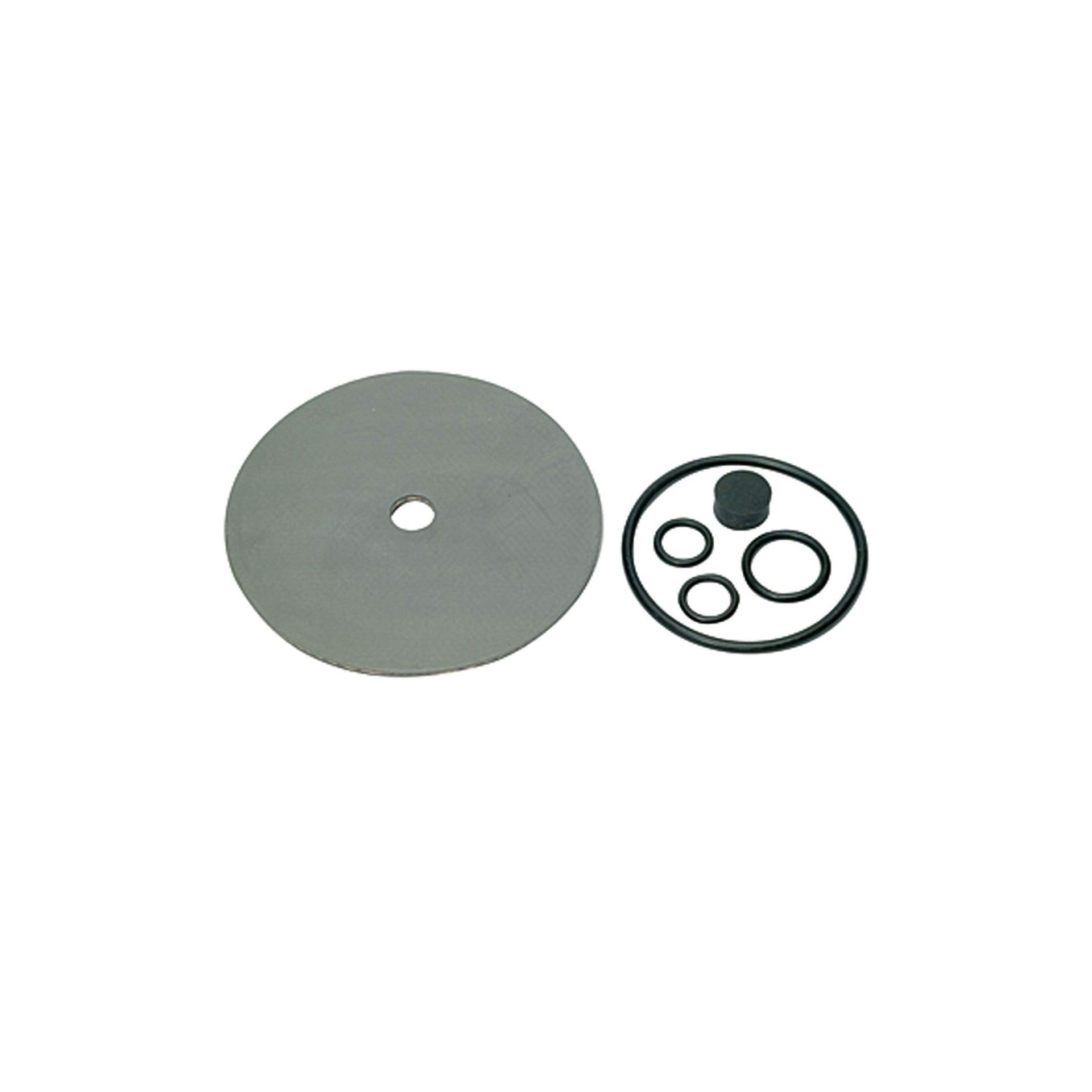

![[101453] RIEGLER Wear part set, for pressure regulator DRV 250, G 1/4](/web/image/product.template/169427/image_128/%5B101453%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20pressure%20regulator%20DRV%20250%2C%20G%201-4?unique=c32ecbf)
|
Type number: 22.301.4 |
28.27 € | |
