RIEGLER Pressure regulator DRV 250, Low pressure design, G 3/8, 0.2-2 bar
Type number: 300.02
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure regulator DRV 250 made of gunmetal 2.1096.01, for compressed air preparation, 0.2 bar - Type 300.02
The RIEGLER pressure regulator DRV 250, low pressure version, G 3/8, 0.2 - 2 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of gunmetal 2.1096.01 with NBR seals. The control range extends from 0.2 bar to 2 bar with a maximum inlet pressure of 25 bar. The temperature range is between -15 °C and 100 °C. G 3/8 connection thread - suitable for common industry standards. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 25 bar |
| Temperature range min. | -15 °C |
| Temperature range max. | 100 °C |
| Housing | Gunmetal 2.1096.01 |
| Sealing material | NBR |
| Spring cover | Pressed brass |
| Thread | G 3/8 |
| Control range min. | 0.2 bar |
| Control range max. | 2 bar |
| Flow rate kvs-value | 0.6 m³/h |
| DN | 10 |
| A | 70 mm |
| B | 185.5 mm |
| C | 140 mm |
| D | 45.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Reduction ratio max. | 0 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101436] RIEGLER Pressure regulator DRV 250, Low pressure design, G 1/2, 0.2-2 bar](/web/image/product.template/169410/image_128/%5B101436%5D%20RIEGLER%20Pressure%20regulator%20DRV%20250%2C%20Low%20pressure%20design%2C%20G%201-2%2C%200.2-2%20bar?unique=828b11f)
|
Type number: 300.03 |
373.90 € | |

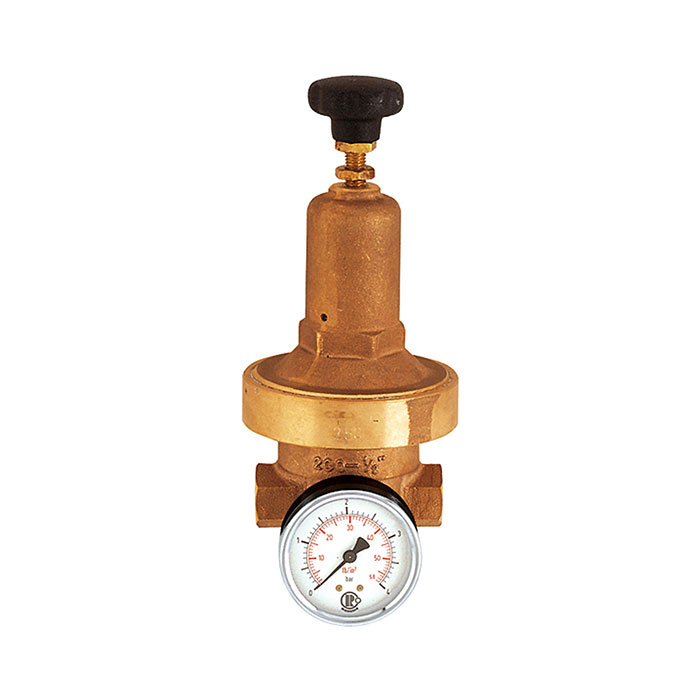

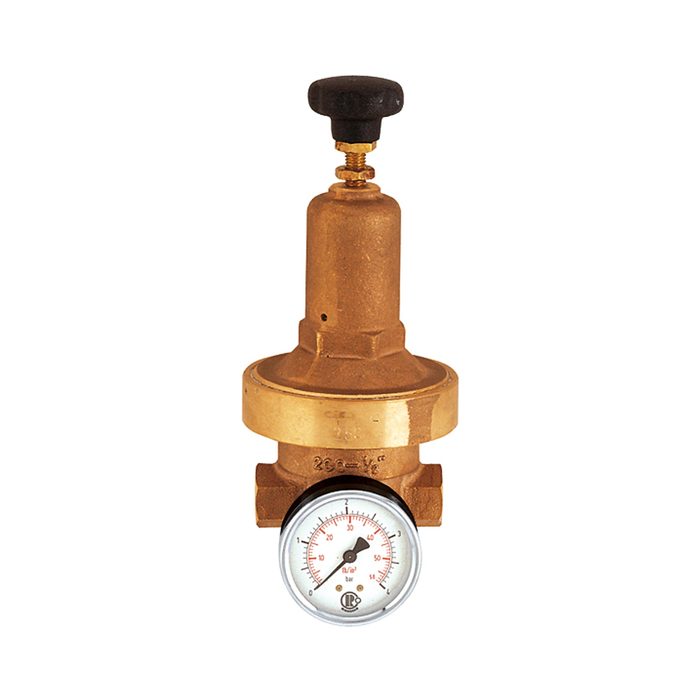

![[101434] RIEGLER Pressure regulator DRV 250, Low pressure design, G 1/4, 0.2-2 bar](/web/image/product.template/169408/image_128/%5B101434%5D%20RIEGLER%20Pressure%20regulator%20DRV%20250%2C%20Low%20pressure%20design%2C%20G%201-4%2C%200.2-2%20bar?unique=67adf58)
|
Type number: 300.01 |
169.22 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

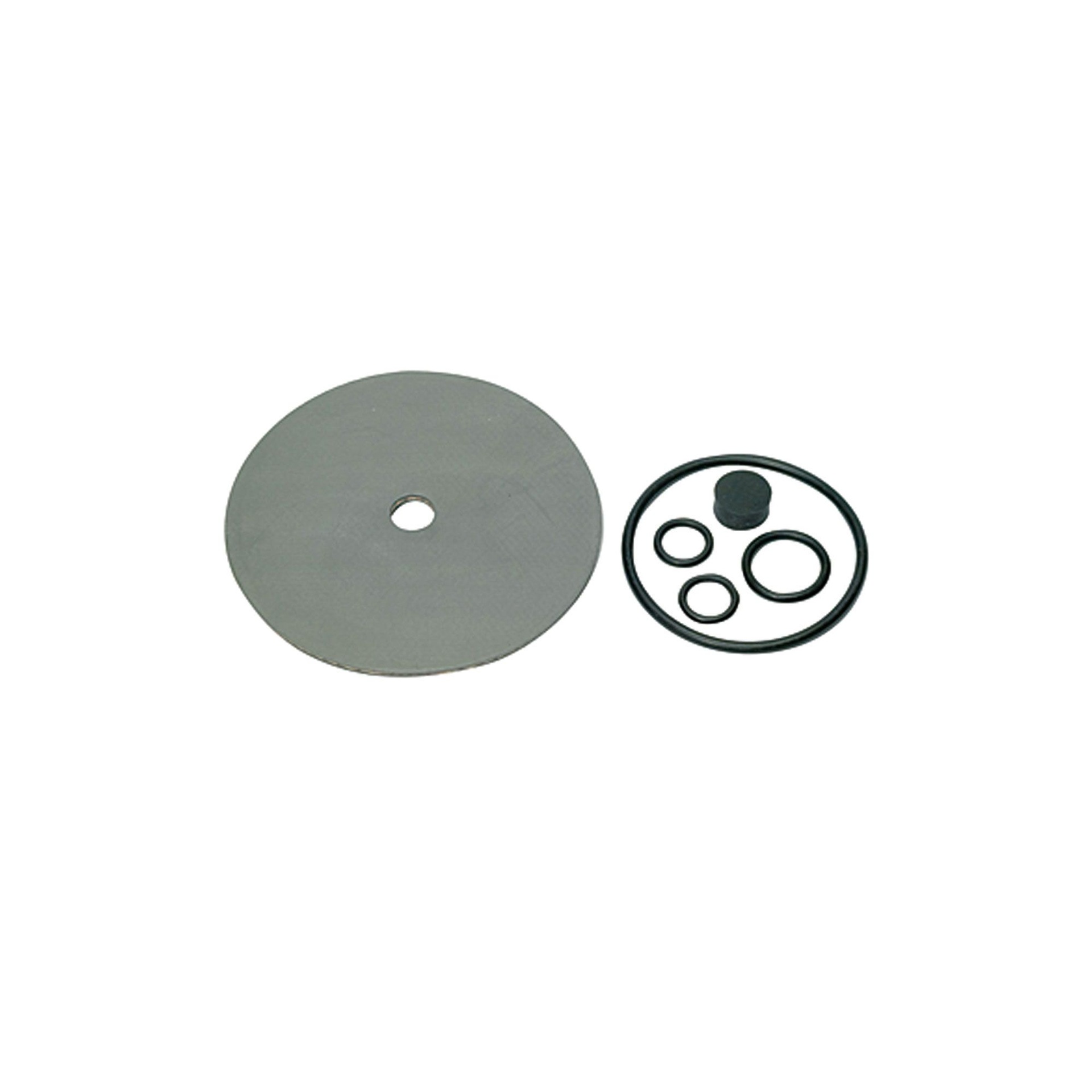

![[101454] RIEGLER Wear part set, for pressure regulator DRV 250, G 3/8](/web/image/product.template/169428/image_128/%5B101454%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20pressure%20regulator%20DRV%20250%2C%20G%203-8?unique=2d91448)
|
Type number: 22.302.4 |
27.89 € | |
