RIEGLER Pressure regulator DRV 225, High pressure design, G 1 1/2, 1.5-20
Type number: 400.07
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure regulator DRV 225, high-pressure version, non-reversible, incl. pressure gauge, G 1 1/2, control range 1.5 - 20 bar, PE max. 40 bar
| Inlet pressure max. | 40 bar |
| Temperature range min. | -15 °C |
| Temperature range max. | 100 °C |
| Housing | Gunmetal 2.1096.01 |
| Sealing material | NBR |
| Spring cover | Gray cast iron |
| Thread | G 1 1/2 |
| Control range min. | 1.5 bar |
| Control range max. | 20 bar |
| Flow rate kvs-value | 4.5 m³/h |
| DN | 40 |
| A | 108 mm |
| B | 392 mm |
| C | 331 mm |
| D | 61 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Reduction ratio max. | 0 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101442] RIEGLER Pressure regulator DRV 225, High pressure design, G 1 1/4, 1.5-20](/web/image/product.template/169416/image_128/%5B101442%5D%20RIEGLER%20Pressure%20regulator%20DRV%20225%2C%20High%20pressure%20design%2C%20G%201%201-4%2C%201.5-20?unique=beb4133)
|
Type number: 400.06 |
908.47 € | |
![[101441] RIEGLER Pressure regulator DRV 225, High pressure design, G 1, 1.5-20 bar](/web/image/product.template/169415/image_128/%5B101441%5D%20RIEGLER%20Pressure%20regulator%20DRV%20225%2C%20High%20pressure%20design%2C%20G%201%2C%201.5-20%20bar?unique=16d9102)
|
Type number: 400.05 |
680.06 € | |
![[101439] RIEGLER Pressure regulator DRV 225, High pressure design, G 1/2, 1.5 - 20](/web/image/product.template/169413/image_128/%5B101439%5D%20RIEGLER%20Pressure%20regulator%20DRV%20225%2C%20High%20pressure%20design%2C%20G%201-2%2C%201.5%20-%2020?unique=d023694)
|
Type number: 400.03 |
374.30 € | |
![[101437] RIEGLER Pressure regulator DRV 225, High pressure design, G 1/4, 1.5 - 20](/web/image/product.template/169411/image_128/%5B101437%5D%20RIEGLER%20Pressure%20regulator%20DRV%20225%2C%20High%20pressure%20design%2C%20G%201-4%2C%201.5%20-%2020?unique=a7a9dbd)
|
Type number: 400.01 |
289.37 € | |

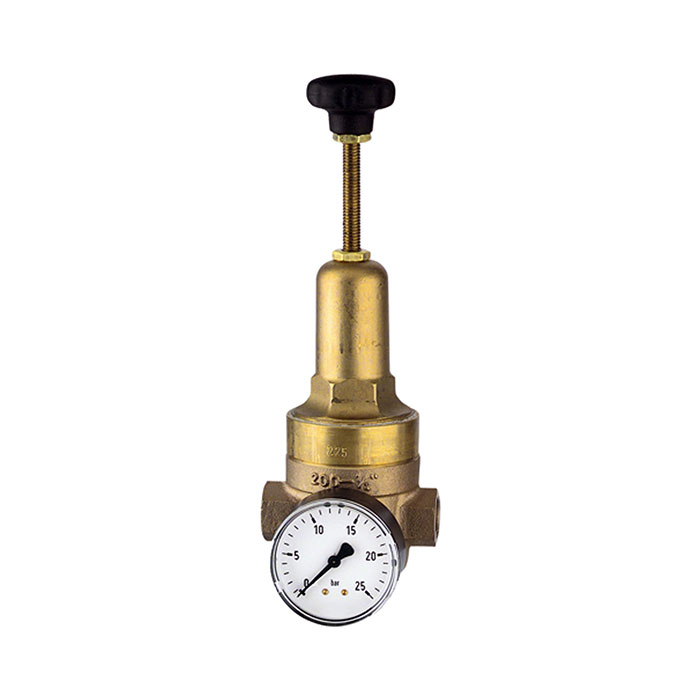

![[101444] RIEGLER Pressure regulator DRV 225, High pressure design, G 2, 1.5-20 bar](/web/image/product.template/169418/image_128/%5B101444%5D%20RIEGLER%20Pressure%20regulator%20DRV%20225%2C%20High%20pressure%20design%2C%20G%202%2C%201.5-20%20bar?unique=6d32dca)
|
