RIEGLER Pressure regulator DRV 225, High pressure design, G 2, 1.5-20 bar
Type number: 400.08
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure regulator DRV 225 made of gunmetal 2.1096.01, for compressed air preparation, 1.5 bar - Type 400.08
The RIEGLER pressure regulator DRV 225, high-pressure version, G 2, 1.5 - 20 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of gunmetal 2.1096.01 with NBR seals. The control range extends from 1.5 bar to 20 bar with a maximum inlet pressure of 40 bar. The temperature range is between -15 °C and 100 °C. G 2 connection thread - suitable for common industry standards. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 40 bar |
| Temperature range min. | -15 °C |
| Temperature range max. | 100 °C |
| Housing | Gunmetal 2.1096.01 |
| Sealing material | NBR |
| Spring cover | Gray cast iron |
| Thread | G 2 |
| Control range min. | 1.5 bar |
| Control range max. | 20 bar |
| Flow rate kvs-value | 7.2 m³/h |
| DN | 50 |
| A | 146.5 mm |
| B | 419 mm |
| C | 349 mm |
| D | 70 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Reduction ratio max. | 0 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101443] RIEGLER Pressure regulator DRV 225, High pressure design, G 1 1/2, 1.5-20](/web/image/product.template/169417/image_128/%5B101443%5D%20RIEGLER%20Pressure%20regulator%20DRV%20225%2C%20High%20pressure%20design%2C%20G%201%201-2%2C%201.5-20?unique=811dd18)
|
Type number: 400.07 |
1,109.21 € | |

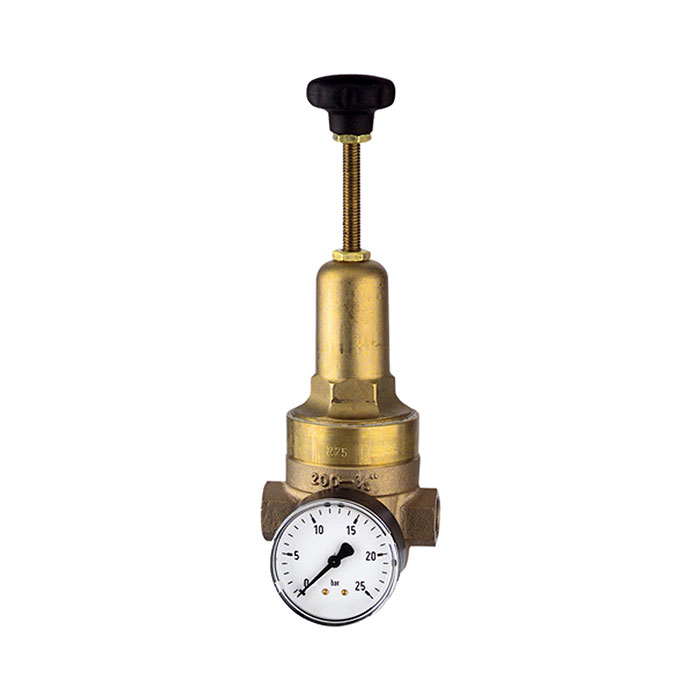

![[101442] RIEGLER Pressure regulator DRV 225, High pressure design, G 1 1/4, 1.5-20](/web/image/product.template/169416/image_128/%5B101442%5D%20RIEGLER%20Pressure%20regulator%20DRV%20225%2C%20High%20pressure%20design%2C%20G%201%201-4%2C%201.5-20?unique=83c56da)
|
