RIEGLER Pre-filter without differential pressure gauge, 3 µm, G 2
Type number: 429.5612
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Vorfilter ohne Differenzdruckmanometer, 3 µm, G 2, Eingangsdruck 4 - 12 bar, Mediums-Umgebungstemperatur 5 °C bis 60 °C
| Inlet pressure min. | 4 bar |
| Inlet pressure max. | 12 bar |
| Housing | Aluminum |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.5% |
| Filter element | Borosilicate microfiber fabric |
| Filter fineness | 3 µm |
| Medium temperature min. | 5 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | 5 °C |
| Ambient temperature max. | 60 °C |
| Efficiency | 99.99 |
| Particle separation | from 3 µm |
| Filter container | Plastic |
| Thread | G 2 |
| Flow rate | 13000 l/min |
| A | 118 mm |
| C | 72 mm |
| D | 1238 mm |
| B2 | 810 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

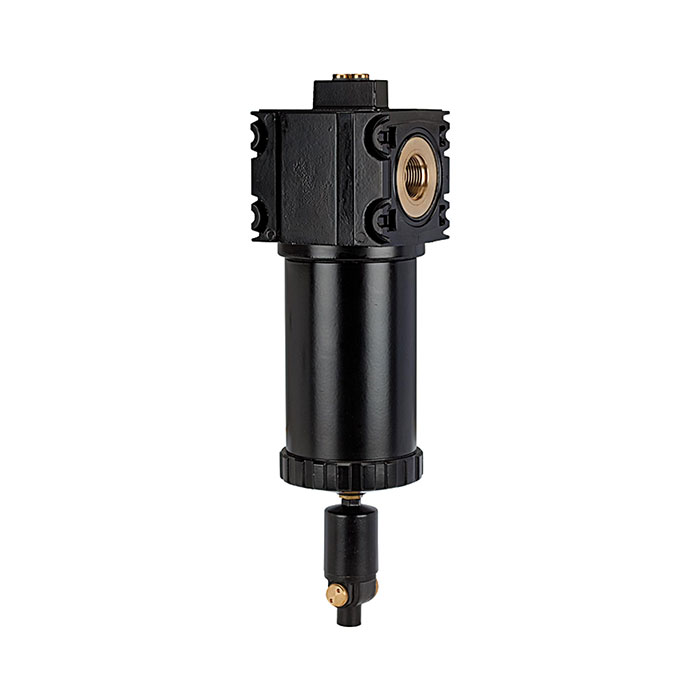

![[101556] RIEGLER Pre-filter without differential pressure gauge, 3 µm, G 1](/web/image/product.template/169530/image_128/%5B101556%5D%20RIEGLER%20Pre-filter%20without%20differential%20pressure%20gauge%2C%203%20%C2%B5m%2C%20G%201?unique=010134c)
|
Type number: 429.5309 |
526.02 € | |
![[101558] RIEGLER Pre-filter without differential pressure gauge, 3 µm, G 1 1/2](/web/image/product.template/169532/image_128/%5B101558%5D%20RIEGLER%20Pre-filter%20without%20differential%20pressure%20gauge%2C%203%20%C2%B5m%2C%20G%201%201-2?unique=010134c)
|
Type number: 429.5511 |
663.87 € | |
![[101557] RIEGLER Pre-filter without differential pressure gauge, 3 µm, G 1 1/4](/web/image/product.template/169531/image_128/%5B101557%5D%20RIEGLER%20Pre-filter%20without%20differential%20pressure%20gauge%2C%203%20%C2%B5m%2C%20G%201%201-4?unique=58d0a04)
|
Type number: 429.5410 |
639.52 € | |
![[101553] RIEGLER Pre-filter without differential pressure gauge, 3 µm, G 3/8](/web/image/product.template/169527/image_128/%5B101553%5D%20RIEGLER%20Pre-filter%20without%20differential%20pressure%20gauge%2C%203%20%C2%B5m%2C%20G%203-8?unique=010134c)
|
Type number: 429.5104 |
262.53 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

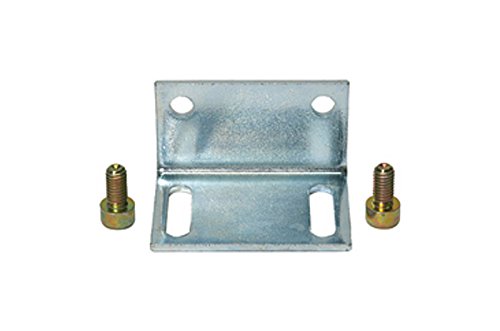

![[101170] RIEGLER Mounting set with 2 screws for G 1 to G 2](/web/image/product.template/140606/image_128/%5B101170%5D%20RIEGLER%20Mounting%20set%20with%202%20screws%20for%20G%201%20to%20G%202?unique=9958692)
|
Type number: 429/27 |
11.02 € | |
![[101599] RIEGLER Connection set for G 1 to G 2](/web/image/product.template/169573/image_128/%5B101599%5D%20RIEGLER%20Connection%20set%20for%20G%201%20to%20G%202?unique=f402f71)
|
Type number: 429/33 |
19.77 € | |
![[101601] RIEGLER Differential pressure gauge, 0 - 2 bar](/web/image/product.template/169575/image_128/%5B101601%5D%20RIEGLER%20Differential%20pressure%20gauge%2C%200%20-%202%20bar?unique=e282850)
|
Type number: 5429.10 |
125.14 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

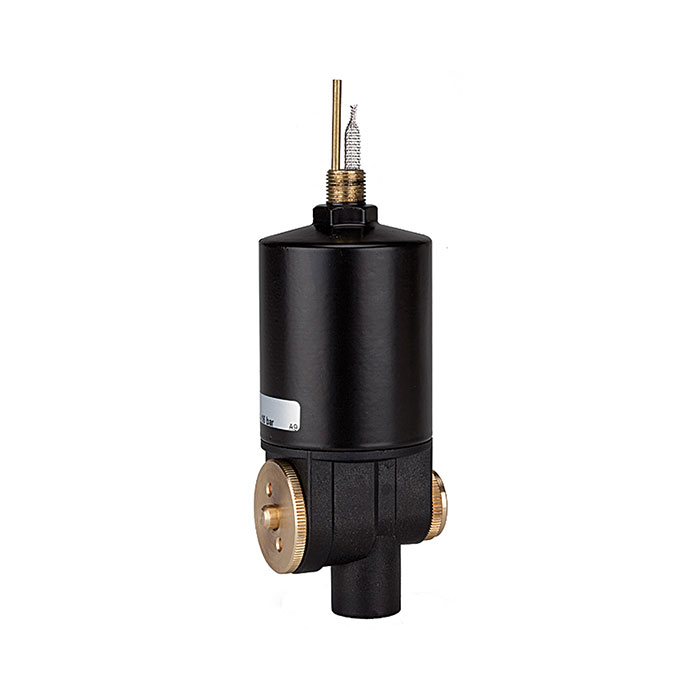

![[101602] RIEGLER Automatic bleeder valve A, G 1/4 IT / G 1/8 ET](/web/image/product.template/169576/image_128/%5B101602%5D%20RIEGLER%20Automatic%20bleeder%20valve%20A%2C%20G%201-4%20IT%20-%20G%201-8%20ET?unique=bc35053)
|
Type number: 65/0-S |
67.85 € | |

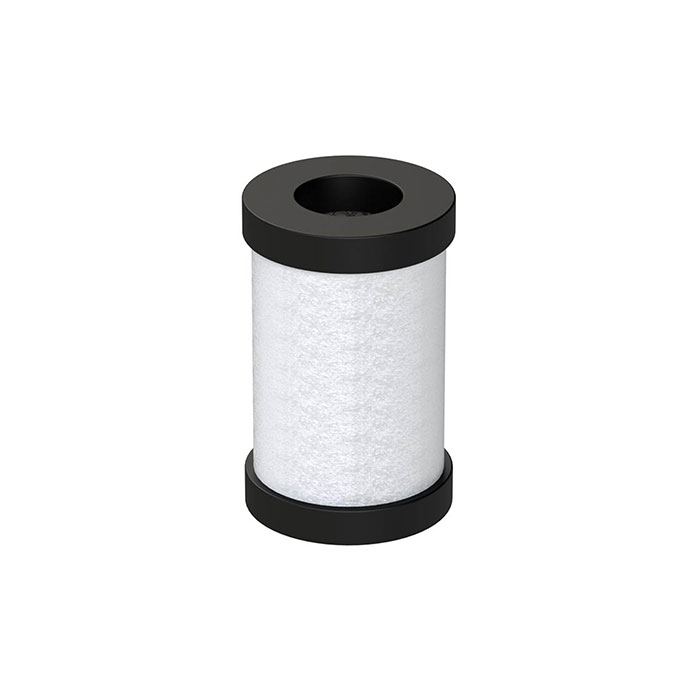

![[101597] RIEGLER Filter element, for pre-filter, G 2](/web/image/product.template/169571/image_128/%5B101597%5D%20RIEGLER%20Filter%20element%2C%20for%20pre-filter%2C%20G%202?unique=034f921)
|
Type number: 429/62 |
267.76 € | |
