RIEGLER pre-filter without differential pressure gauge, 1 µm, G 1/2
Typennummer: FSPV.G12.OM
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

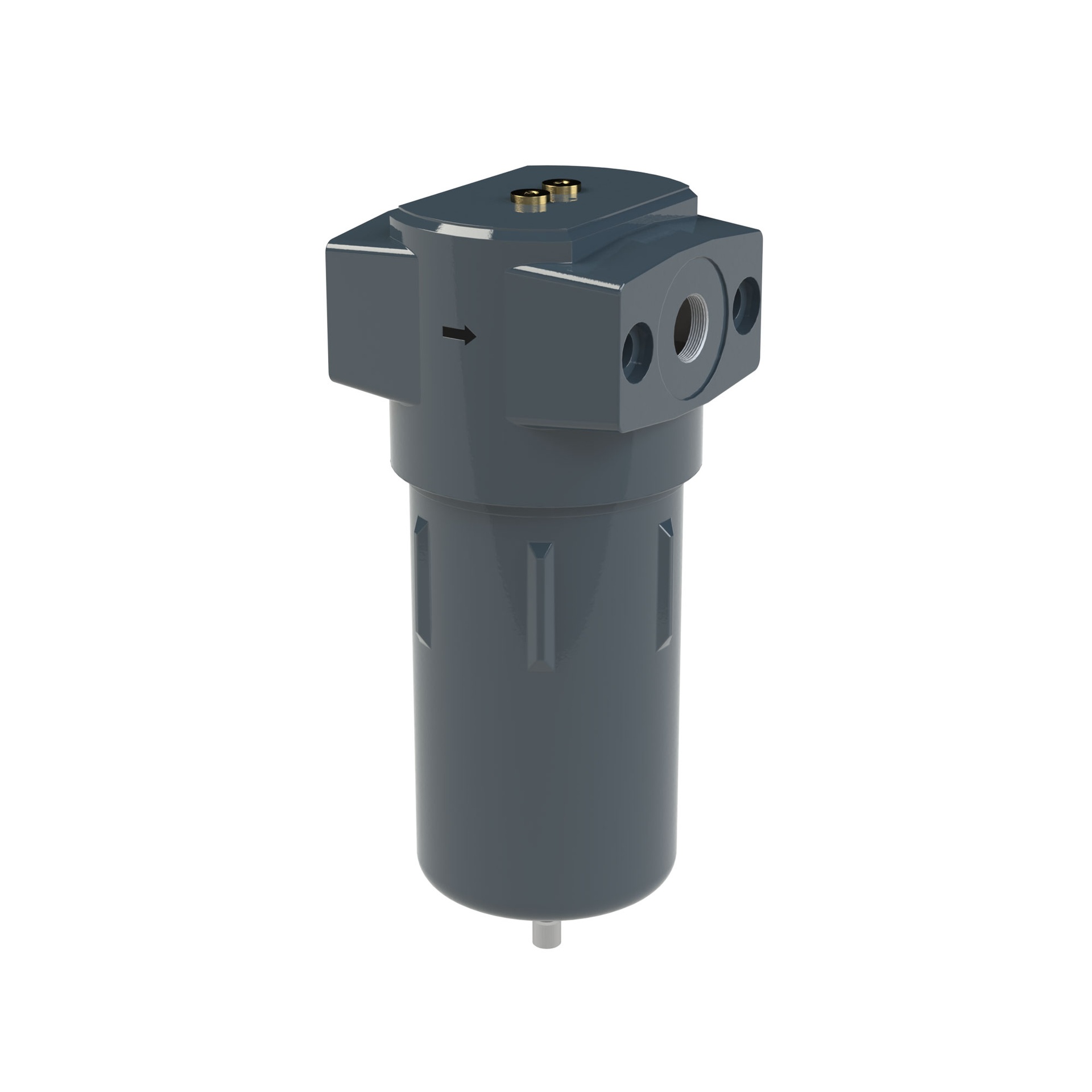

RIEGLER Pre-filter without differential pressure gauge made of aluminum, for compressed air treatment, G 1/2 - type FSPV.G12.OM
The RIEGLER pre-filter without differential pressure gauge, 1 µm, G 1/2 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of aluminum. The maximum inlet pressure is 16 bar. The temperature range is between 1.5 °C and 80 °C. Connection thread G 1/2 - suitable for common industry standards. Filter fineness 1 µm. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Efficiency | 999.99 |
| Display range of the | 1 bar |
| Execution | without differential pressure gauge |
| Flow 1 | 1170 l/min |
| Steam trap | automatic drain valve |
| D | 272 mm |
| A | 87 mm |
| Filter element | Cellulose |
| Temperature range min. | 1.5 °C |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Particle separation | 1 µm |
| Filter fineness | 1 µm |
| Display range of the | 0 bar |
| Inlet pressure max. | 16 bar |
| C | 21 mm |
| Inlet pressure min. | 4 bar |
| CAS No. SVHC 1 | 7439-92-1 |
| Temperature range max. | 80 °C |
| Housing | Aluminum |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Thread | G 1/2 |
| Class name | PLUS |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[146967] RIEGLER differential pressure gauge, 0 - 1 bar](/web/image/product.template/284052/image_128/%5B146967%5D%20RIEGLER%20differential%20pressure%20gauge%2C%200%20-%201%20bar?unique=e001d13)
|
Typennummer: FSPDM.0-1B |
53.26 € | |
![[147701] RIEGLER connection set for 2 filters, G 1/4 to G 1/2](/web/image/product.template/284399/image_128/%5B147701%5D%20RIEGLER%20connection%20set%20for%202%20filters%2C%20G%201-4%20to%20G%201-2?unique=ed30352)
|
Typennummer: VBSFSP.2.G14-G12 |
36.45 € | |
![[147703] RIEGLER connection set for 3 filters, G 1/4 to G 1/2](/web/image/product.template/284401/image_128/%5B147703%5D%20RIEGLER%20connection%20set%20for%203%20filters%2C%20G%201-4%20to%20G%201-2?unique=a862248)
|
Typennummer: VBSFSP.3.G14-G12 |
57.22 € | |
![[147705] RIEGLER wall mounting set for 1 filter, G 1/4 to G 1/2](/web/image/product.template/284403/image_128/%5B147705%5D%20RIEGLER%20wall%20mounting%20set%20for%201%20filter%2C%20G%201-4%20to%20G%201-2?unique=4a1db21)
|
Typennummer: WMSFSP.G14-G12 |
38.07 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[147707] RIEGLER Automatic drain valve, pre-filter, microfilter, G 1/4 - G 1 1/2](/web/image/product.template/284405/image_128/%5B147707%5D%20RIEGLER%20Automatic%20drain%20valve%2C%20pre-filter%2C%20microfilter%2C%20G%201-4%20-%20G%201%201-2?unique=e2b7adf)
|
Typennummer: AAFSPVM.G14-G112 |
58.02 € | |
