RIEGLER Microfilter with differential pressure gauge, 0.01 µm, G 1 1/4
Type number: 430.2410
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Microfilter with differential pressure gauge, 0.01 µm, G 1 1/4, inlet pressure 4 - 12 bar, ambient medium temperature 5 °C to 60 °C
| Inlet pressure min. | 4 bar |
| Inlet pressure max. | 12 bar |
| Housing | Aluminum |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1.5% |
| Filter element | Borosilicate microfiber fabric |
| Filter fineness | 0.01 µm |
| Medium temperature min. | 5 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | 5 °C |
| Ambient temperature max. | 60 °C |
| Efficiency | 9999.99 |
| Filter container | Plastic |
| Thread | G 1 1/4 |
| Flow rate | 4580 l/min |
| Display range of the | 0 bar |
| Display range of the | 2 bar |
| A | 118 mm |
| C | 72 mm |
| D | 658 mm |
| B1 | 617.5 mm |
| B2 | 520 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

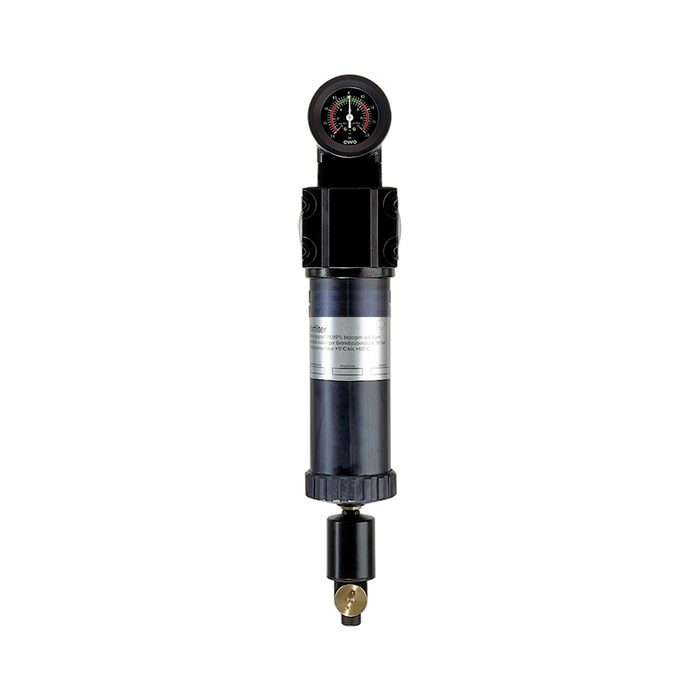

![[101564] RIEGLER Microfilter with differential pressure gauge, 0.01 µm, G 1](/web/image/product.template/169538/image_128/%5B101564%5D%20RIEGLER%20Microfilter%20with%20differential%20pressure%20gauge%2C%200.01%20%C2%B5m%2C%20G%201?unique=150876c)
|
Type number: 430.2309 |
617.99 € | |
![[101566] RIEGLER Microfilter with differential pressure gauge, 0.01 µm, G 1 1/2](/web/image/product.template/169540/image_128/%5B101566%5D%20RIEGLER%20Microfilter%20with%20differential%20pressure%20gauge%2C%200.01%20%C2%B5m%2C%20G%201%201-2?unique=150876c)
|
Type number: 430.2511 |
746.95 € | |
![[101567] RIEGLER Microfilter with differential pressure gauge, 0.01 µm, G 2](/web/image/product.template/169541/image_128/%5B101567%5D%20RIEGLER%20Microfilter%20with%20differential%20pressure%20gauge%2C%200.01%20%C2%B5m%2C%20G%202?unique=150876c)
|
Type number: 430.2612 |
904.17 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101599] RIEGLER Connection set for G 1 to G 2](/web/image/product.template/169573/image_128/%5B101599%5D%20RIEGLER%20Connection%20set%20for%20G%201%20to%20G%202?unique=6a47760)
|
Type number: 429/33 |
19.77 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101602] RIEGLER Automatic bleeder valve A, G 1/4 IT / G 1/8 ET](/web/image/product.template/169576/image_128/%5B101602%5D%20RIEGLER%20Automatic%20bleeder%20valve%20A%2C%20G%201-4%20IT%20-%20G%201-8%20ET?unique=e47dd1b)
|
Type number: 65/0-S |
67.85 € | |
![[101601] RIEGLER Differential pressure gauge, 0 - 2 bar](/web/image/product.template/169575/image_128/%5B101601%5D%20RIEGLER%20Differential%20pressure%20gauge%2C%200%20-%202%20bar?unique=553d518)
|
Type number: 5429.10 |
17.39 € | |

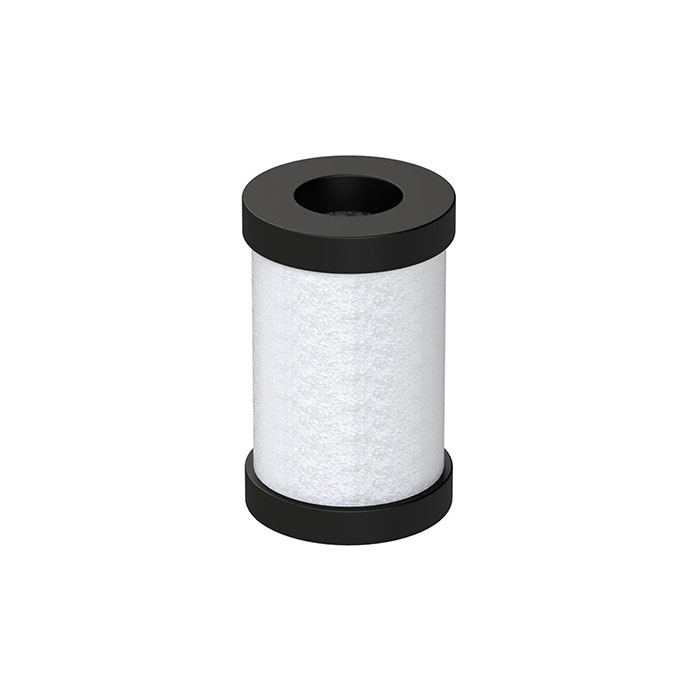

![[101606] RIEGLER Filter element, for microfilter, G 1 1/4](/web/image/product.template/169580/image_128/%5B101606%5D%20RIEGLER%20Filter%20element%2C%20for%20microfilter%2C%20G%201%201-4?unique=15f70aa)
|
Type number: 430/9 |
142.74 € | |
