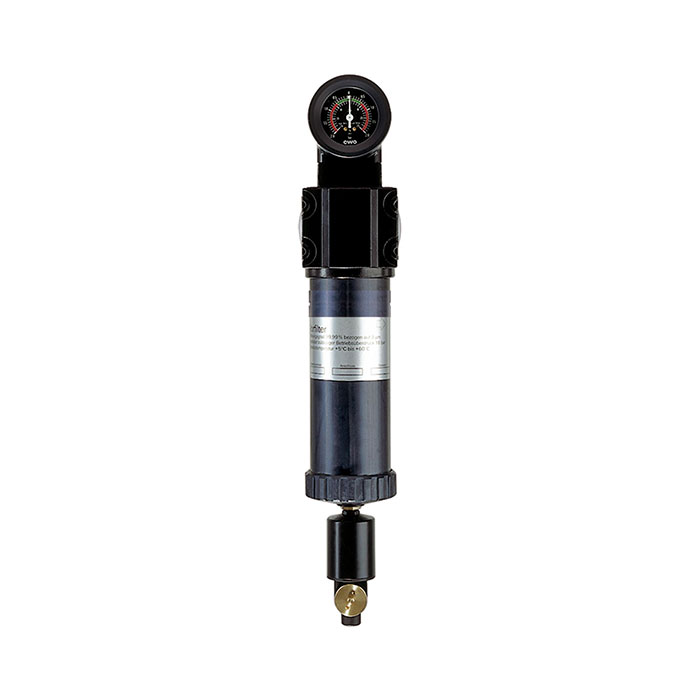

RIEGLER Microfilter with differential pressure gauge, 0.01 µm, G 1 1/2
Type number: 430.2511
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Microfilter with differential pressure gauge made of aluminum, for compressed air treatment, G 1 1/2 - Type 430.2511
The RIEGLER microfilter with differential pressure gauge, 0.01 µm, G 1 1/2 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of aluminum. The maximum inlet pressure is 12 bar. The permissible medium temperature is between 5 °C and 60 °C. Connection thread G 1 1/2 - suitable for common industry standards. The flow rate is 6500 l/min (at P1 = 6 bar and pressure drop Δp = 1.5%). Filter fineness 0.01 µm. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure min. | 4 bar |
| Inlet pressure max. | 12 bar |
| Housing | Aluminum |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1.5% |
| Filter element | Borosilicate microfiber fabric |
| Filter fineness | 0.01 µm |
| Medium temperature min. | 5 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | 5 °C |
| Ambient temperature max. | 60 °C |
| Efficiency | 9999.99 |
| Filter container | Plastic |
| Thread | G 1 1/2 |
| Flow rate | 6500 l/min |
| Display range of the | 0 bar |
| Display range of the | 2 bar |
| A | 118 mm |
| C | 72 mm |
| D | 858 mm |
| B1 | 717.5 mm |
| B2 | 620 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101564] RIEGLER Microfilter with differential pressure gauge, 0.01 µm, G 1](/web/image/product.template/169538/image_128/%5B101564%5D%20RIEGLER%20Microfilter%20with%20differential%20pressure%20gauge%2C%200.01%20%C2%B5m%2C%20G%201?unique=23064b7)
|
Type number: 430.2309 |
609.53 € | |
![[101565] RIEGLER Microfilter with differential pressure gauge, 0.01 µm, G 1 1/4](/web/image/product.template/169539/image_128/%5B101565%5D%20RIEGLER%20Microfilter%20with%20differential%20pressure%20gauge%2C%200.01%20%C2%B5m%2C%20G%201%201-4?unique=23064b7)
|
Type number: 430.2410 |
561.05 € | |
![[101567] RIEGLER Microfilter with differential pressure gauge, 0.01 µm, G 2](/web/image/product.template/169541/image_128/%5B101567%5D%20RIEGLER%20Microfilter%20with%20differential%20pressure%20gauge%2C%200.01%20%C2%B5m%2C%20G%202?unique=23064b7)
|
Type number: 430.2612 |
891.79 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101599] RIEGLER Connection set for G 1 to G 2](/web/image/product.template/169573/image_128/%5B101599%5D%20RIEGLER%20Connection%20set%20for%20G%201%20to%20G%202?unique=111eb27)
|
Type number: 429/33 |
19.50 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101602] RIEGLER Automatic bleeder valve A, G 1/4 IT / G 1/8 ET](/web/image/product.template/169576/image_128/%5B101602%5D%20RIEGLER%20Automatic%20bleeder%20valve%20A%2C%20G%201-4%20IT%20-%20G%201-8%20ET?unique=300c306)
|
Type number: 65/0-S |
67.21 € | |
![[101601] RIEGLER Differential pressure gauge, 0 - 2 bar](/web/image/product.template/169575/image_128/%5B101601%5D%20RIEGLER%20Differential%20pressure%20gauge%2C%200%20-%202%20bar?unique=3f88a91)
|
Type number: 5429.10 |
125.14 € | |

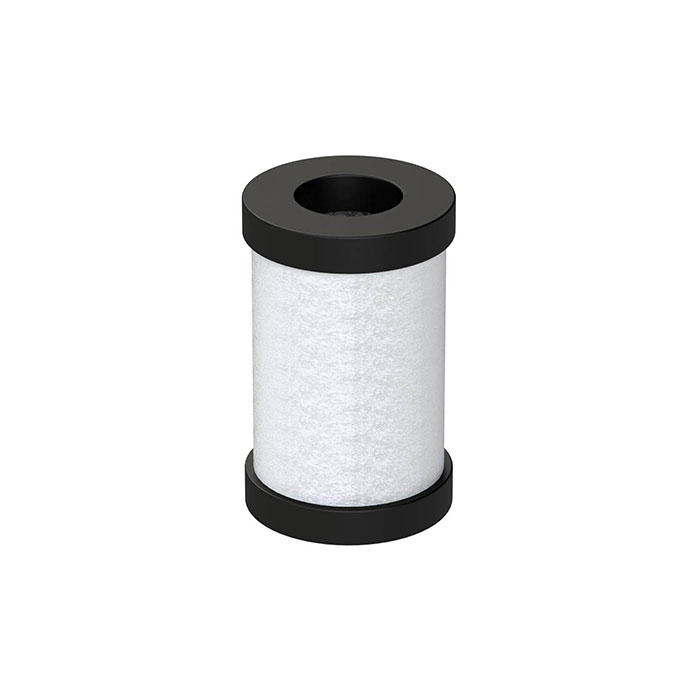

![[101607] RIEGLER Filter element, for microfilter, G 1 1/2](/web/image/product.template/169581/image_128/%5B101607%5D%20RIEGLER%20Filter%20element%2C%20for%20microfilter%2C%20G%201%201-2?unique=fc166a8)
|
