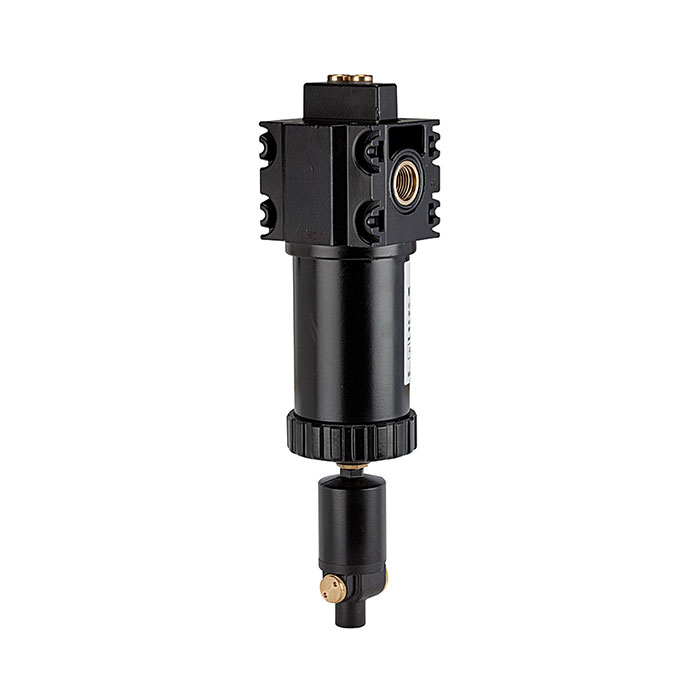

RIEGLER Microfilter without differential pressure gauge, 0.01 µm, G 1 1/4
Type number: 430.5410
EAN: 4047322086943
Microfilter without differential pressure gauge, 0.01 µm, G 1 1/4, inlet pressure 4 - 12 bar, ambient medium temperature 5 °C to 60 °C
| Inlet pressure min. | 4 bar |
| Inlet pressure max. | 12 bar |
| Housing | Aluminum |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1.5% |
| Filter element | Borosilicate microfiber fabric |
| Filter fineness | 0.01 µm |
| Medium temperature min. | 5 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | 5 °C |
| Ambient temperature max. | 60 °C |
| Efficiency | 9999.99 |
| Filter container | Plastic |
| Thread | G 1 1/4 |
| Flow rate | 4580 l/min |
| A | 118 mm |
| C | 72 mm |
| D | 658 mm |
| B2 | 520 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | PLUS |
