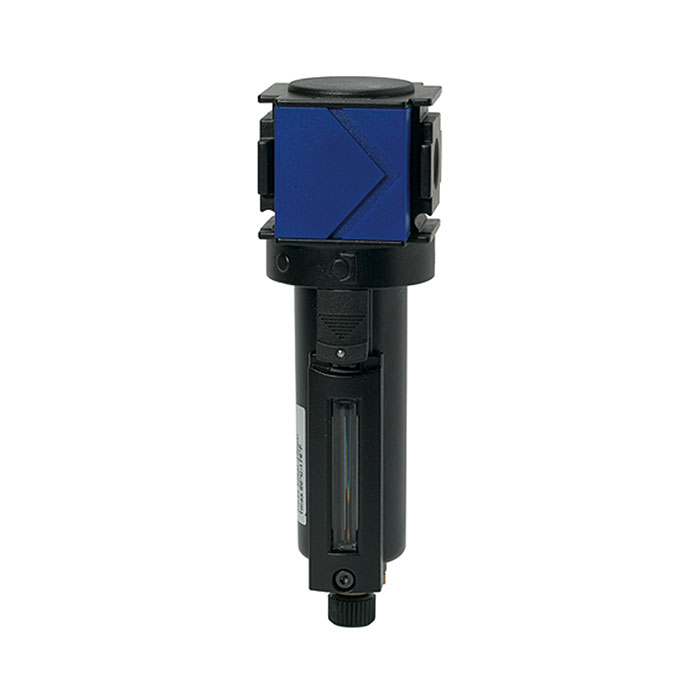

RIEGLER Microfilter »variobloc«, Metal container, 0.01 µm, Size 1, G 1/4
Type number: VM 22 M
EAN: 4047322169004
Microfilter "variobloc" with metal container incl. sight tube, 0.01 µm, BG 1, G 1/4, PE max. 20 bar, medium temp. max. 80 °C
| Inlet pressure max. | 20 bar |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Series | variobloc |
| Container | Metal container with sight tube |
| Filter fineness | 0.01 µm |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 80 °C |
| Efficiency | 999.99 |
| Air quality according to ISO 8573.1 | Class 1 dirt, class 1 oil |
| Thread | G 1/4 |
| Flow rate | 370 l/min |
| BG | 1 |
| A | 48 mm |
| B | 155 mm |
| C | 22 mm |
| Class name | PLUS |
