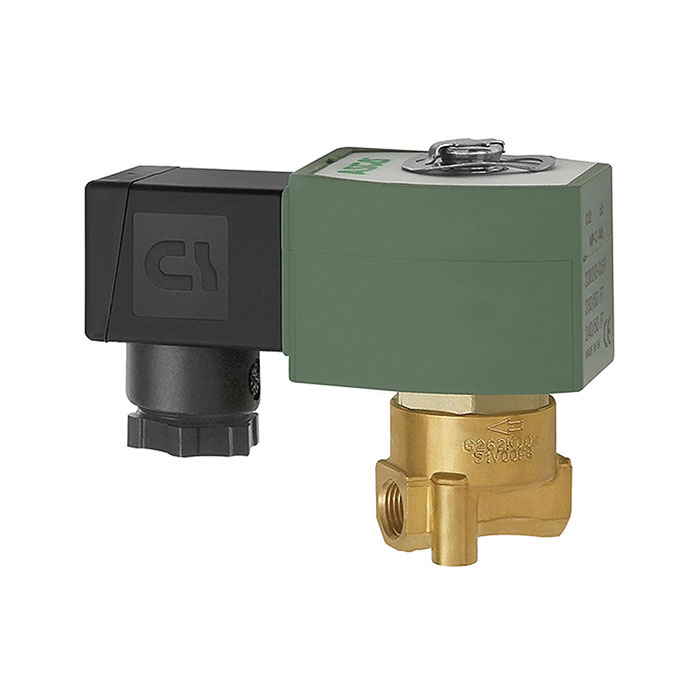

RIEGLER 2/2-way solenoid valve, NO, directly operated, 230 V, 50 - 60 Hz
Type number: MV 2215
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
2/2-way solenoid valve, MS, NO, direct acting, 230V, 50-60Hz, med temp -25 to +80°C, ambient temp -25 to +55°C, NBR, G1/4, PN 0-11bar
| Housing | Brass |
| Sealing material | NBR |
| Protection class | IP 65 (when using the cable plug) |
| Electrical connection | ISO 4400, cable socket (Pg 11P) |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 11 bar |
| Medium temperature min. | -25 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | -25 °C |
| Ambient temperature max. | 55 °C |
| Interior parts | Stainless steel |
| Valve seat | Brass |
| Thread | G 1/4 |
| DN | 45325 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| Design | 2 |
| Function | normally open (NO) |
| A | 80 mm |
| B | 40 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[102827] RIEGLER 2/2-way solenoid valve, NO, directly operated, 230 V, 50 - 60 Hz](/web/image/product.template/170799/image_128/%5B102827%5D%20RIEGLER%202-2-way%20solenoid%20valve%2C%20NO%2C%20directly%20operated%2C%20230%20V%2C%2050%20-%2060%20Hz?unique=320699c)
|
Type number: MV 2214 |
129.73 € | |
![[102828] RIEGLER 2/2-way solenoid valve, NO, directly operated, 230 V, 50 - 60 Hz](/web/image/product.template/170800/image_128/%5B102828%5D%20RIEGLER%202-2-way%20solenoid%20valve%2C%20NO%2C%20directly%20operated%2C%20230%20V%2C%2050%20-%2060%20Hz?unique=00ec002)
|
Type number: MV 2234 |
157.21 € | |
![[102830] RIEGLER 2/2-way solenoid valve, NO, directly operated, 230 V, 50 - 60 Hz](/web/image/product.template/170802/image_128/%5B102830%5D%20RIEGLER%202-2-way%20solenoid%20valve%2C%20NO%2C%20directly%20operated%2C%20230%20V%2C%2050%20-%2060%20Hz?unique=26e590f)
|
Type number: MV 2235 |
200.82 € | |
