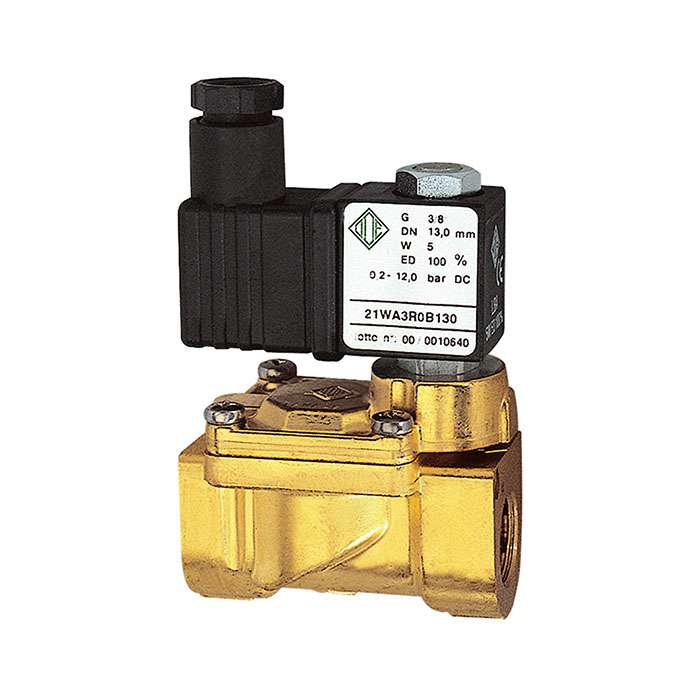

RIEGLER 2/2-sol.valve,NC,pilot oper.,230V,50Hz,10VA,NBR,G1/2,PN0.2-16bar
Type number: MV 1361
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2/2-MV made of brass, for industrial systems, max. 16 bar - Type MV 1361
The RIEGLER 2/2-MV,MS,NC,pre-set,230V,50Hz,10VA,NBR,G1/2,PN0,2-12bar switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of brass with NBR seals. The operating pressure range is 0.2 bar to 16 bar. The permissible medium temperature is between -10 °C and 90 °C. Connection thread G 1/2 - suitable for common industry standards. Protection class IP 65 (when using the cable plug). Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Brass |
| Sealing material | NBR |
| Protection class | IP 65 (when using the cable plug) |
| Electrical connection | for cable plug PG 9/PG 11, to ISO 4400 |
| Operating pressure min. | 0.2 bar |
| Max. operating pressure | 16 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Interior parts | Stainless steel |
| Valve seat | Brass |
| Thread | G 1/2 |
| DN | 13 |
| Design | 5 |
| Function | normally closed (NC) |
| A | 40 mm |
| B | 66 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
