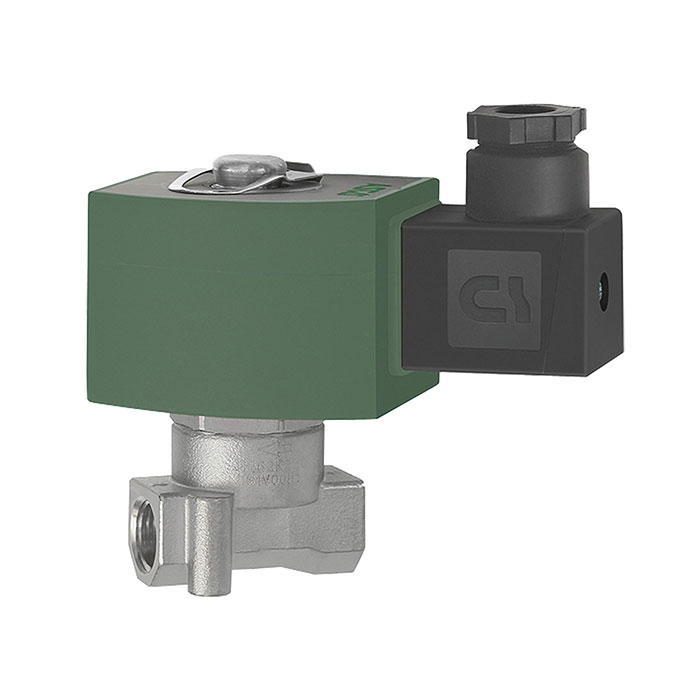

RIEGLER 2/2-way sol. valve,AISI 304,NBR,NC, dir. op., 230 V,NPT 1/8
Type number: MV 100 ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2/2-way MV. made of stainless steel 1.4301, for industrial systems, max. 25 bar - Type MV 100 ES
The RIEGLER 2/2-way MV,ES,NBR,NC,direct acting,230 V,50-60Hz,NPT 1/8,PN 0-22 bar switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of stainless steel 1.4301 with NBR seals. The operating pressure range is 0 bar to 25 bar. The permissible medium temperature is between -25 °C and 80 °C. Connection thread NPT 1/8 - suitable for common industry standards. Protection class IP 65 (when using the cable plug). Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Stainless steel 1.4301 |
| Sealing material | NBR |
| Protection class | IP 65 (when using the cable plug) |
| Electrical connection | for cable plug PG 11 P, to DIN 4400 |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 25 bar |
| Medium temperature min. | -25 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | -25 °C |
| Ambient temperature max. | 55 °C |
| Interior parts | Stainless steel |
| Valve seat | Stainless steel 1.4301 |
| Thread | NPT 1/8 |
| DN | 45384 |
| Design | 1 |
| Function | normally closed (NC) |
| A | 91 mm |
| B | 30 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | MAX |
