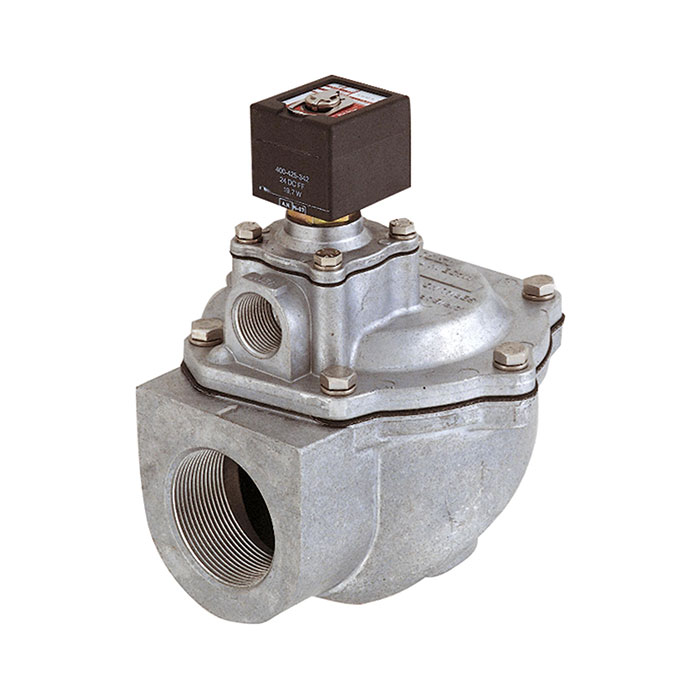

RIEGLER Pulse diaphragm valve, NC, 24 V DC internal pre-control, G 2
Type number: MV 4214 G
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Impulse diaphragm valve, NC, 24 V DC internal pilot control, max. medium temperature 85 °C, G 2, PN 0.35 - 8.5 bar, CR diaphragm
| Housing | Aluminum |
| Sealing material | NBR |
| Membrane | CR |
| Protection class | IP 65 (when using the appliance inlet/line socket) |
| Electrical connection | ISO 4400 appliance inlet/line socket |
| Operating pressure min. | 0.35 bar |
| Max. operating pressure | 8.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 85 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 85 °C |
| Interior parts | Stainless steel |
| Thread | G 2 |
| DN | 66 |
| Design | 2 |
| Function | normally closed (NC) |
| A | 80 mm |
| B | 168 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Vent connection | G 3/4 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[199904] RIEGLER Pulse diaphragm valve, NC, 24 V DC internal pre-control, G 1](/web/image/product.template/226437/image_128/%5B199904%5D%20RIEGLER%20Pulse%20diaphragm%20valve%2C%20NC%2C%2024%20V%20DC%20internal%20pre-control%2C%20G%201?unique=65ee91b)
|
Typennummer: MV 4212-1 G |
125.85 € | |
![[102992] RIEGLER Pulse diaphragm valve, NC, 24 V DC internal pre-control, G 2 1/2](/web/image/product.template/170961/image_128/%5B102992%5D%20RIEGLER%20Pulse%20diaphragm%20valve%2C%20NC%2C%2024%20V%20DC%20internal%20pre-control%2C%20G%202%201-2?unique=3f5b5bf)
|
Type number: MV 4215 G |
347.56 € | |

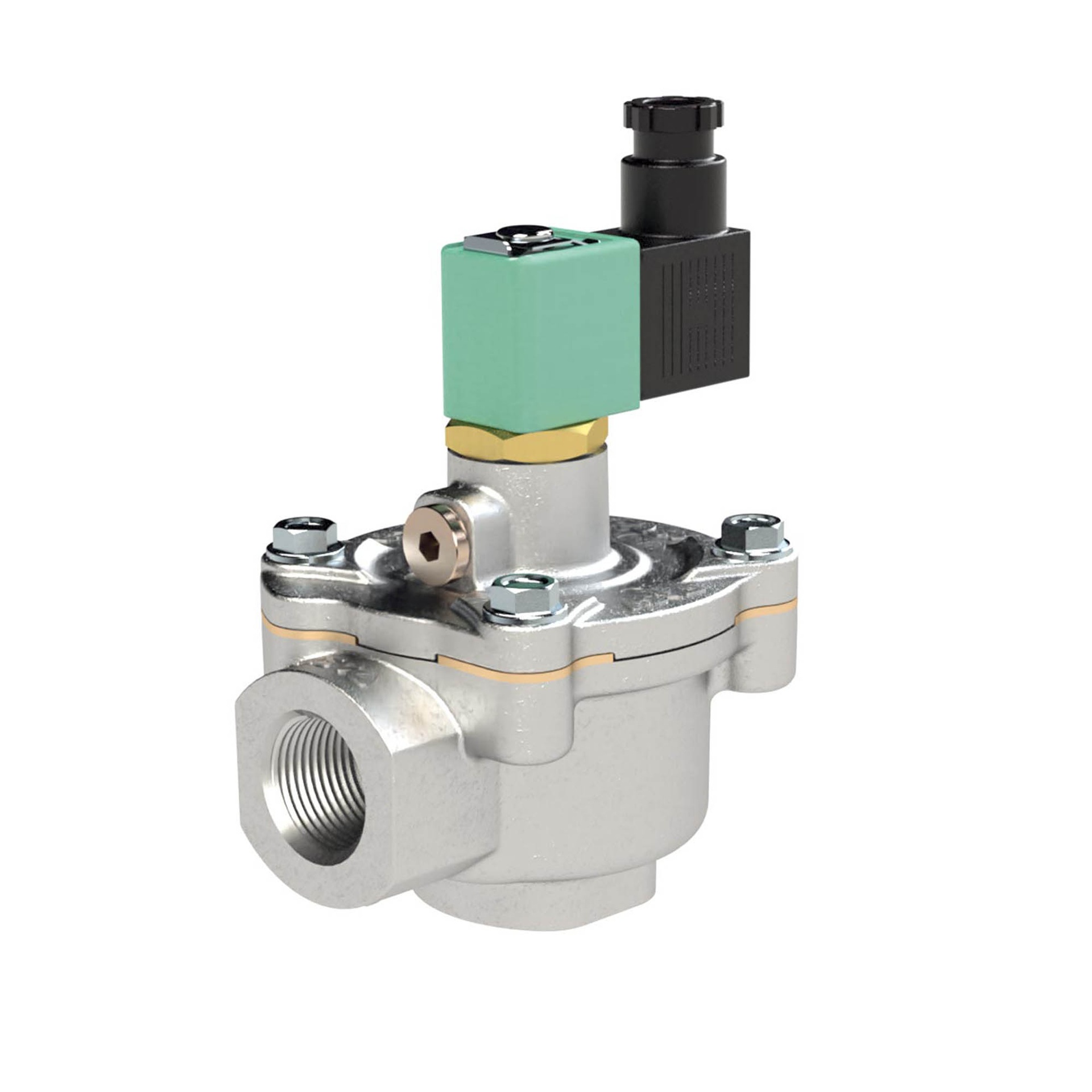

![[199903] RIEGLER Pulse diaphragm valve, NC, 24 V DC internal pre-control, G 3/4](/web/image/product.template/222602/image_128/%5B199903%5D%20RIEGLER%20Pulse%20diaphragm%20valve%2C%20NC%2C%2024%20V%20DC%20internal%20pre-control%2C%20G%203-4?unique=405b6d0)
|
Typennummer: MV 4211-1 G |
111.34 € | |
![[199905] RIEGLER Pulse diaphragm valve, NC, 24 V DC int. pilot control, G 1 1/2, CR](/web/image/product.template/267914/image_128/%5B199905%5D%20RIEGLER%20Pulse%20diaphragm%20valve%2C%20NC%2C%2024%20V%20DC%20int.%20pilot%20control%2C%20G%201%201-2%2C%20CR?unique=c4c4ae1)
|
Typennummer: MV 4213-1 G |
224.86 € | |
