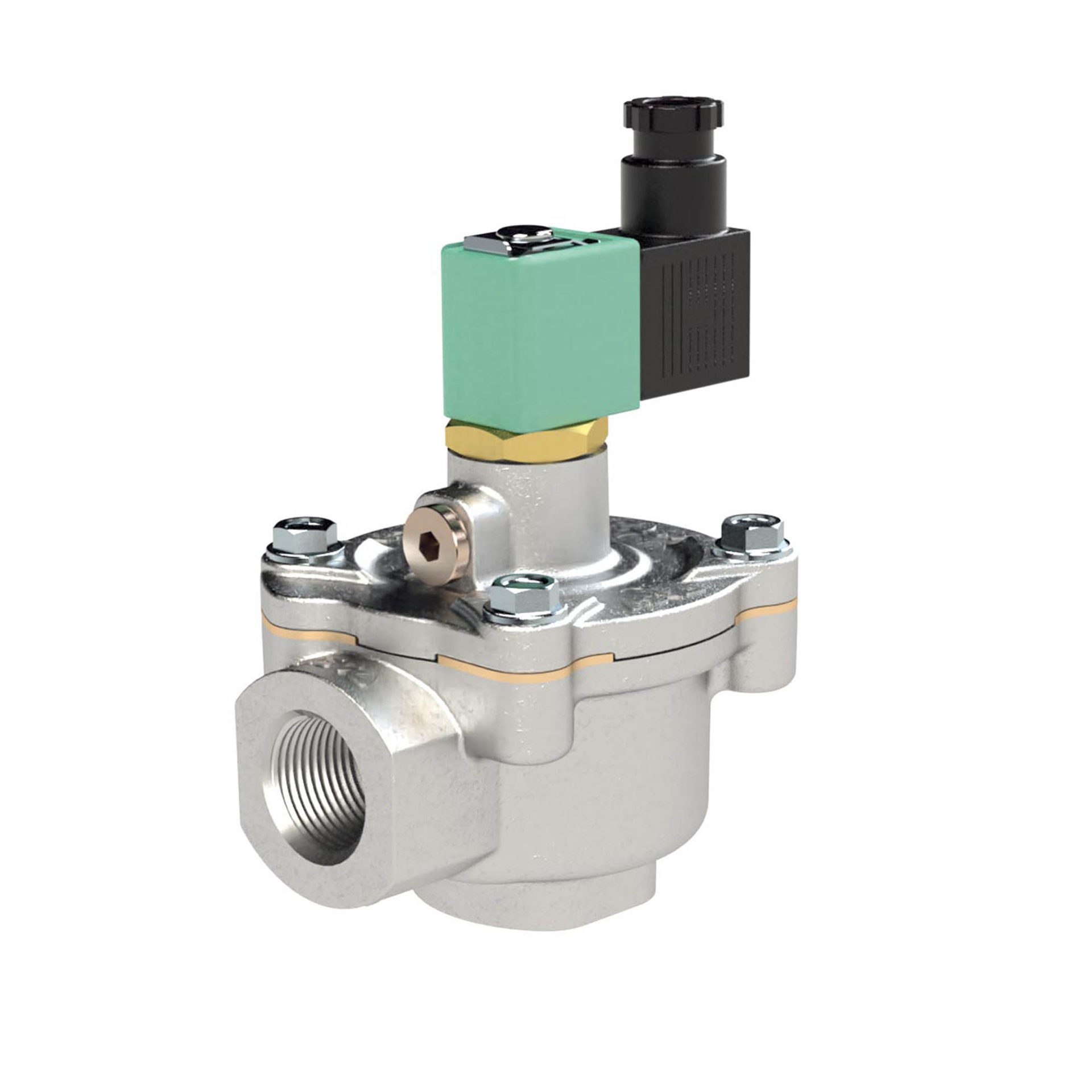

RIEGLER Pulse diaphragm valve, NC, 24 V DC internal pre-control, G 1
Typennummer: MV 4212-1 G
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Impulse diaphragm valve made of aluminum, for industrial systems, max. 8.5 bar - Type MV 4212-1 G
The RIEGLER pulse diaphragm valve, NC, 24 V DC int. pilot control, G 1, TPE switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of aluminum with NBR seals. The operating pressure range is 2 bar to 8.5 bar. The permissible medium temperature is between -15 °C and 85 °C. Connection thread G 1 - suitable for common industry standards. Suitable for air, purge gas, raw gas. Protection class IP 65 (when using the cable plug/line socket). Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Medium | Air, purge gas, raw gas |
| Housing | Aluminum |
| Sealing material | NBR |
| Membrane | TPE |
| Protection class | IP 65 (when using the appliance inlet/line socket) |
| Electrical connection | ISO 4400 appliance inlet/line socket |
| Operating pressure min. | 2 bar |
| Max. operating pressure | 8.5 bar |
| Medium temperature min. | -15 °C |
| Medium temperature max. | 85 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 85 °C |
| Interior parts | Stainless steel |
| Thread | G 1 |
| DN | 32 |
| Design | 1 |
| Function | normally closed (NC) |
| A | 61 mm |
| B | 90 mm |
| Vent connection | - |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[102991] RIEGLER Pulse diaphragm valve, NC, 24 V DC internal pre-control, G 2](/web/image/product.template/170960/image_128/%5B102991%5D%20RIEGLER%20Pulse%20diaphragm%20valve%2C%20NC%2C%2024%20V%20DC%20internal%20pre-control%2C%20G%202?unique=1a2ff42)
|
Type number: MV 4214 G |
329.38 € | |

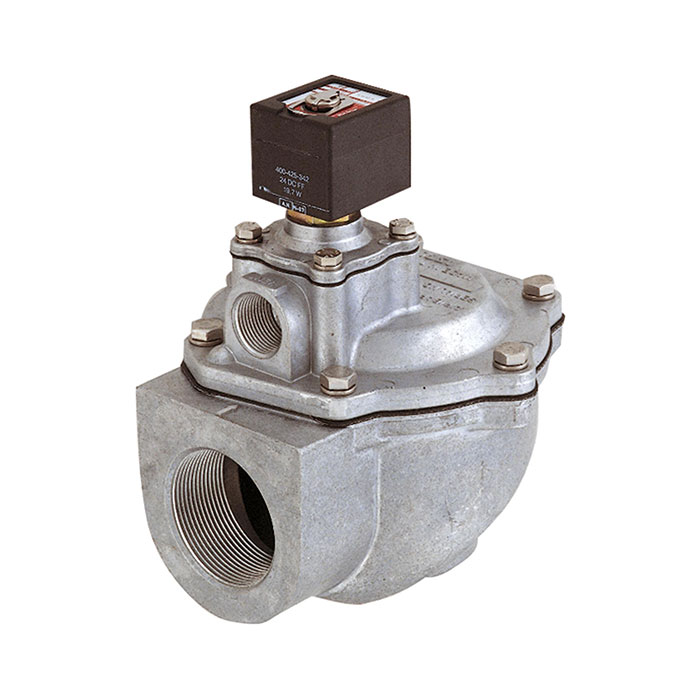

![[102992] RIEGLER Pulse diaphragm valve, NC, 24 V DC internal pre-control, G 2 1/2](/web/image/product.template/170961/image_128/%5B102992%5D%20RIEGLER%20Pulse%20diaphragm%20valve%2C%20NC%2C%2024%20V%20DC%20internal%20pre-control%2C%20G%202%201-2?unique=2829dd6)
|
Type number: MV 4215 G |
347.56 € | |
![[199903] RIEGLER Pulse diaphragm valve, NC, 24 V DC internal pre-control, G 3/4](/web/image/product.template/222602/image_128/%5B199903%5D%20RIEGLER%20Pulse%20diaphragm%20valve%2C%20NC%2C%2024%20V%20DC%20internal%20pre-control%2C%20G%203-4?unique=d7b8137)
|
Typennummer: MV 4211-1 G |
109.81 € | |

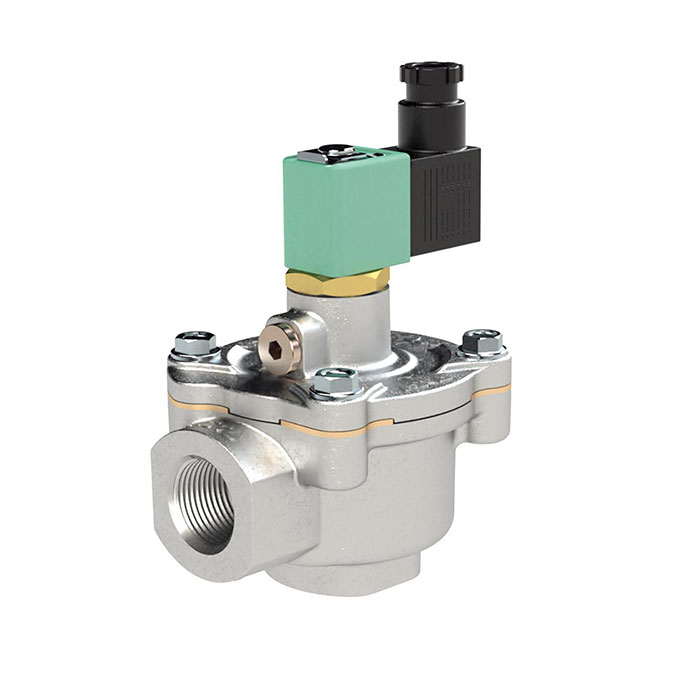

![[199905] RIEGLER Pulse diaphragm valve, NC, 24 V DC int. pilot control, G 1 1/2, CR](/web/image/product.template/267914/image_128/%5B199905%5D%20RIEGLER%20Pulse%20diaphragm%20valve%2C%20NC%2C%2024%20V%20DC%20int.%20pilot%20control%2C%20G%201%201-2%2C%20CR?unique=fd0ac60)
|
