RIEGLER Ball drain valve, Stainless steel 1.4408, G 1/2 ET, DN 15
Type number: KAH.12-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ball outlet valve made of stainless steel 1.4408, for industrial systems, G 1/2 AG - type KAH.12-ES
The RIEGLER ball outlet valve, stainless steel 1.4408, G 1/2 AG, DN 15 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of stainless steel 1.4408 with NBR seals. The operating temperature is between -10 °C and 150 °C. Connection thread G 1/2 AG (G thread to ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Sealing material | NBR |
| Material | Stainless steel 1.4408 |
| Area of application | Water, gaseous and non-aggressive media, compressed air |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 150 °C |
| DN | 15 |
| PN | 16 bar |
| Thread standard | G-thread according to ISO 228-1 |
| for hose | LW 13 mm |
| A | 90 mm |
| L | 149 mm |
| H | 91 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 1/2 AG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | 14408 |
| Thread material | Stainless steel 1.4408 |
| Grommet connection thread | G 3/4 |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

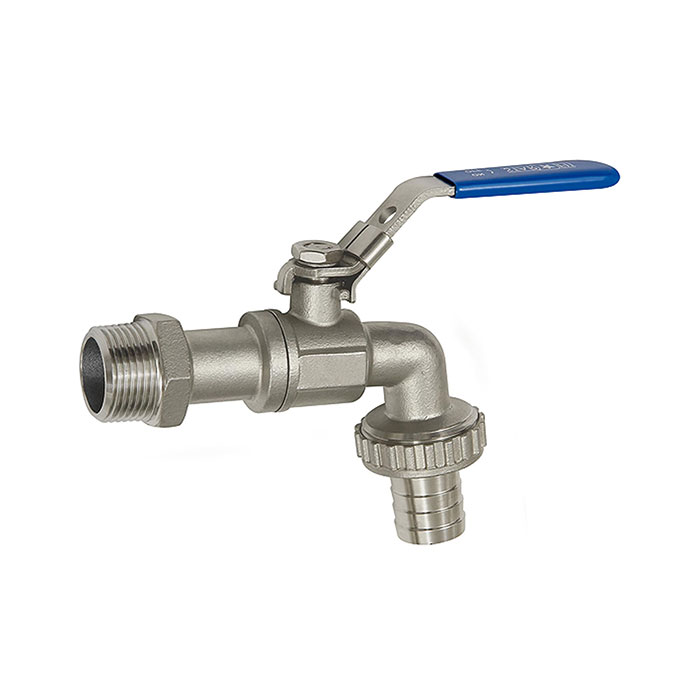

![[103422] RIEGLER Ball drain valve, Stainless steel 1.4408, G 1 ET, DN 25](/web/image/product.template/171388/image_128/%5B103422%5D%20RIEGLER%20Ball%20drain%20valve%2C%20Stainless%20steel%201.4408%2C%20G%201%20ET%2C%20DN%2025?unique=63cd4eb)
|
