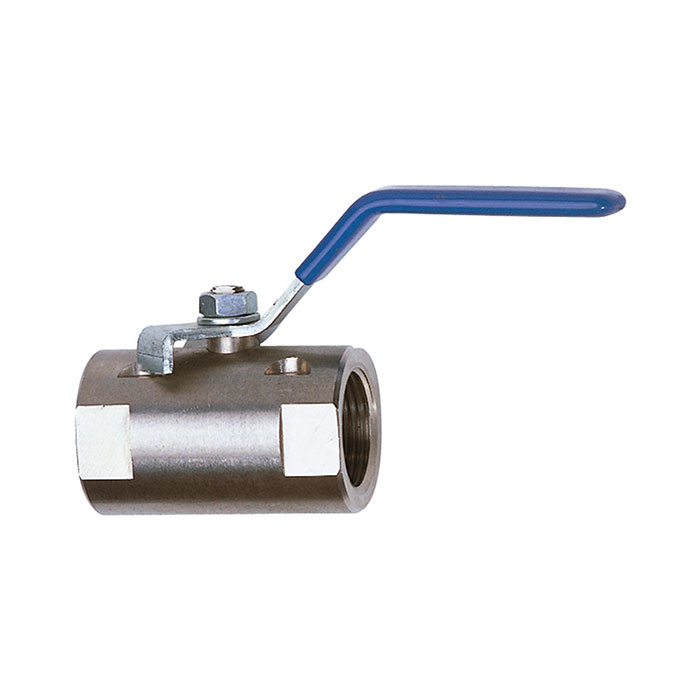

RIEGLER Stainless steel ball valve, 1-piece, Reduced passage, G 1/2

https://www.filcom-technik.de/web/image/product.template/171391/image_1920?unique=cd87bd4

Type number: 398.04

EAN: 4047322082501

39.57 € 39.57 EUR 39.57 € VAT Included

51.16 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

103425

EAN :

4047322082501

Category :

2-Way Ball Valves

Weight :

0.25 kg

Stainless steel ball valve 1.4401/1.4408, 1-piece, reduced passage, operating temp. -20 °C to 150 °C, G 1/2, DN 15, PN max. 63 bar

Housing Stainless steel 1.4401/1.4408
Ball Stainless steel 1.4401
Ball seal RPTFE (15% glass fiber reinforced)
Spindle seal PTFE
Hand lever Stainless steel 1.4301, with plastic coating
Operating temperature min. -20 °C
Operating temperature max. 150 °C
Operating pressure max. 63 bar (depending on temperature)
Thread G 1/2
DN 15
Thread standard G-thread according to DIN EN ISO 228-1
A 110 mm
B 57 mm
L 56.5 mm
REACH SVHC1 Substance Name no
CAS No. SVHC 1 none CAS No.
RoHS material information RoHS compliant
Exception no exception
REACH Info no SVHC substance contained
Share of SVHC SCIP no SVHC substance
Class name STAINLESS STEEL
