RIEGLER Stainless steel ball valve, 1-piece, Full passage, G 1/4
Type number: 398.02
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel ball valve made of stainless steel 1.4401/1.4408, for industrial installations, G 1/4 - Type 398.02
The RIEGLER stainless steel ball valve, 1-piece, full bore, G 1/4 opens or shuts off the media flow with a quarter turn - full bore with minimal pressure loss. The housing is made of stainless steel 1.4401/1.4408. The operating temperature is between -20 °C and 150 °C. G 1/4 connection thread (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Stainless steel 1.4401/1.4408 |
| Ball | Stainless steel 1.4401 |
| Ball seal | RPTFE (15% glass fiber reinforced) |
| Spindle seal | PTFE |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Operating pressure | max. 63 bar (depending on temperature) |
| Thread | G 1/4 |
| DN | 8 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| A | 60 mm |
| B | 30 mm |
| L | 39.8 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103424] RIEGLER Stainless steel ball valve, 1-piece, Full passage, G 3/8](/web/image/product.template/171390/image_128/%5B103424%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%201-piece%2C%20Full%20passage%2C%20G%203-8?unique=3af1fc8)
|
Type number: 398.03 |
36.00 € | |

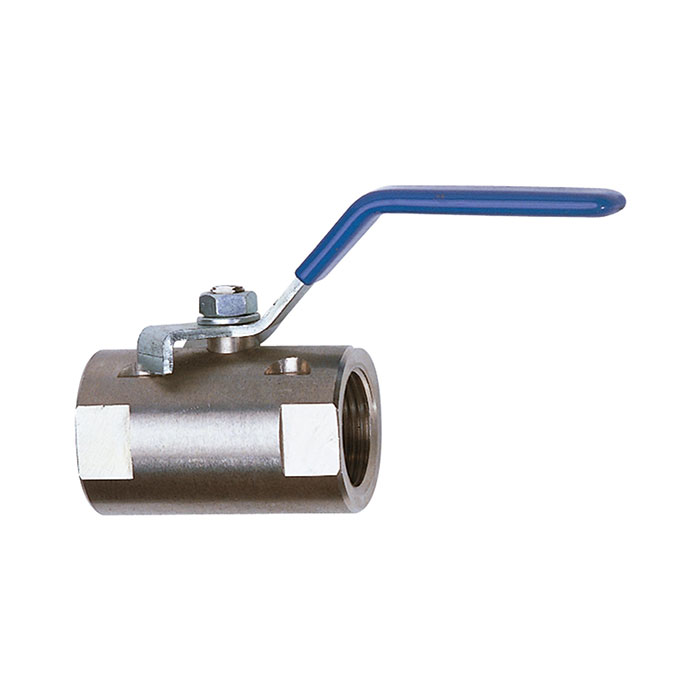

![[103427] RIEGLER Stainless steel ball valve, 1-piece, Reduced passage, G 1](/web/image/product.template/171393/image_128/%5B103427%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%201-piece%2C%20Reduced%20passage%2C%20G%201?unique=9e4f134)
|
