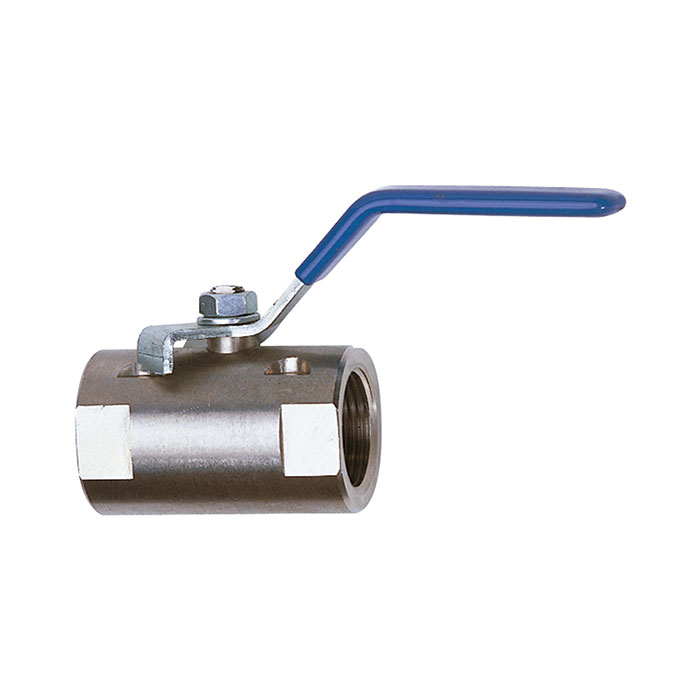

RIEGLER Stainless steel ball valve, 1-piece, Reduced passage, G 1 1/4
Type number: 398.07
EAN: 4047322082532
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Stainless steel ball valve 1.4401/1.4408, 1-piece, reduced passage, operating temp. -20 °C to 150 °C, G 1 1/4, DN 32, PN max. 63 bar
| Housing | Stainless steel 1.4401/1.4408 |
| Ball | Stainless steel 1.4401 |
| Ball seal | RPTFE (15% glass fiber reinforced) |
| Spindle seal | PTFE |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Operating pressure | max. 63 bar (depending on temperature) |
| Thread | G 1 1/4 |
| DN | 32 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| A | 152 mm |
| B | 75 mm |
| L | 77.6 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
