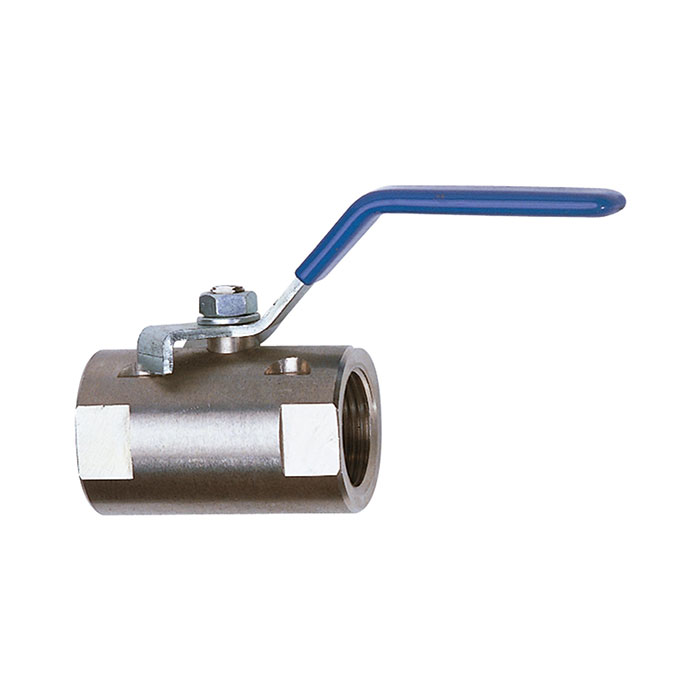

RIEGLER Stainless steel ball valve, 1-piece, Reduced passage, G 1 1/2
Type number: 398.08
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel ball valve made of stainless steel 1.4401/1.4408, for industrial installations, G 1 1/2 - Type 398.08
The RIEGLER stainless steel ball valve, 1-piece, reduced passage, G 1 1/2 opens or shuts off the media flow with a quarter turn - full passage with minimal pressure loss. The housing is made of stainless steel 1.4401/1.4408. The operating temperature is between -20 °C and 150 °C. Connection thread G 1 1/2 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Stainless steel 1.4401/1.4408 |
| Ball | Stainless steel 1.4401 |
| Ball seal | RPTFE (15% glass fiber reinforced) |
| Spindle seal | PTFE |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Operating pressure | max. 63 bar (depending on temperature) |
| Thread | G 1 1/2 |
| DN | 40 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| A | 150 mm |
| B | 80 mm |
| L | 87 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
