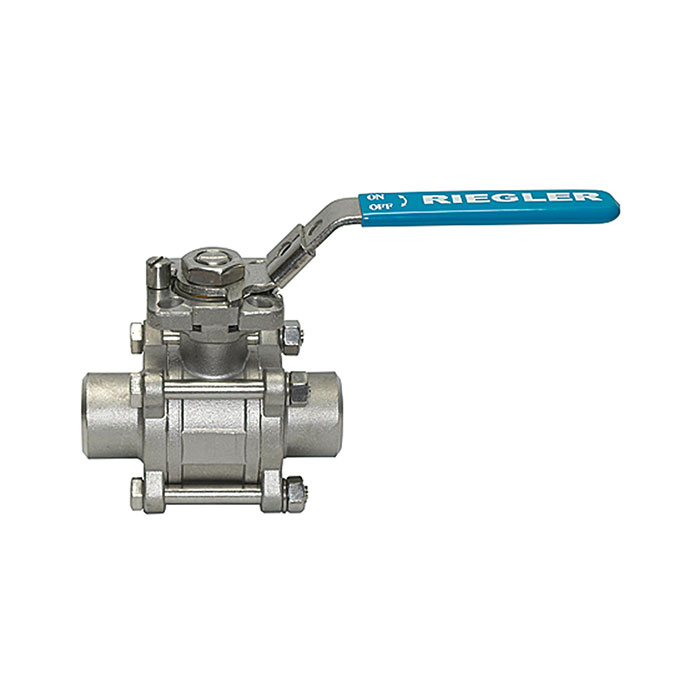

RIEGLER Stainless steel ball valve, weld-on studs, for tube O.D. 48 mm
Type number: 391.07
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Stainless steel ball valve, 3-piece, weld-on ends, full bore, operating temp. -20°C to 150°C, PN max. 63 bar, for pipe outer ø 48 mm
| Housing | Stainless steel 1.4408 |
| Ball | Stainless steel 1.4408 |
| Ball seal | RPTFE (15% glass fiber reinforced) |
| Spindle seal | RPTFE (15% glass fiber reinforced) |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Operating pressure | max. 63 bar (depending on temperature) |
| A | 182 mm |
| B | 110 mm |
| L | 125 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| ISO 5211 | F 05 / F 07 |
| Class name | STAINLESS STEEL |
| Bore diameter padlock | approx. 7.5 mm |
