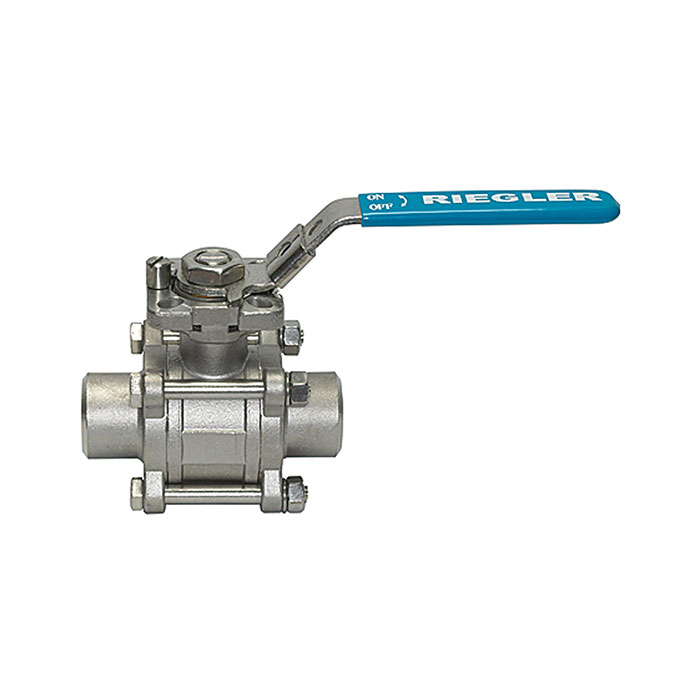

RIEGLER Stainless steel ball valve, weld-on studs, for tube O.D. 17 mm
Type number: 391.01
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER ES ball valve made of stainless steel 1.4408, for industrial systems - Type 391.01
The RIEGLER ES ball valve, 3-piece, weld-on ends, full bore, DN 8 opens or shuts off the media flow with a quarter turn - full bore with minimal pressure loss. The housing is made of stainless steel 1.4408. The operating temperature is between -20 °C and 150 °C. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Stainless steel 1.4408 |
| Ball | Stainless steel 1.4408 |
| Ball seal | RPTFE (15% glass fiber reinforced) |
| Spindle seal | RPTFE (15% glass fiber reinforced) |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Operating pressure | max. 63 bar (depending on temperature) |
| A | 123 mm |
| B | 74 mm |
| L | 70 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| ISO 5211 | F 03 / F 04 |
| Class name | STAINLESS STEEL |
| Bore diameter padlock | approx. 7.5 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

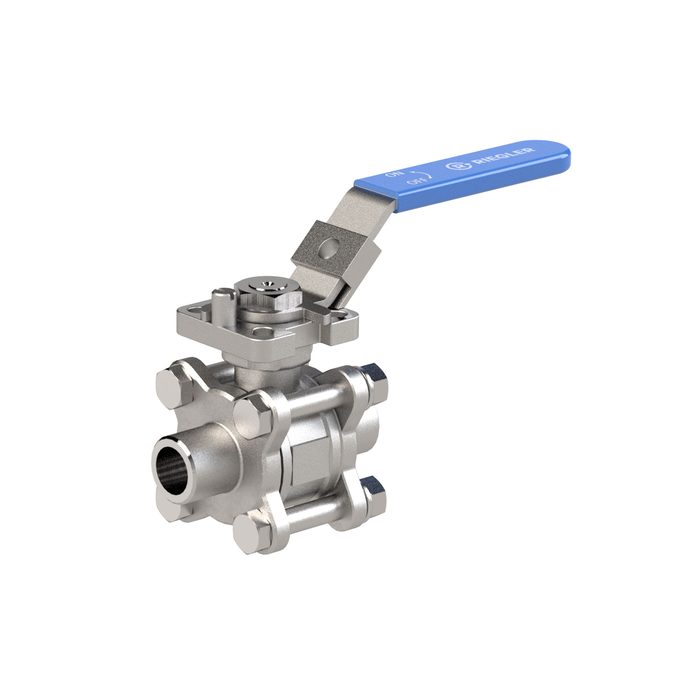

![[103456] RIEGLER Stainless steel ball valve, weld-on studs, for tube O.D. 17 mm](/web/image/product.template/171419/image_128/%5B103456%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20weld-on%20studs%2C%20for%20tube%20O.D.%2017%20mm?unique=8ceda91)
|
Type number: 391.02 |
57.56 € | |
![[103457] RIEGLER Stainless steel ball valve, weld-on studs, for tube O.D. 21.3 mm](/web/image/product.template/171420/image_128/%5B103457%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20weld-on%20studs%2C%20for%20tube%20O.D.%2021.3%20mm?unique=e489785)
|
Type number: 391.03 |
63.74 € | |
![[103458] RIEGLER Stainless steel ball valve, weld-on studs, for tube O.D. 26.7 mm](/web/image/product.template/171421/image_128/%5B103458%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20weld-on%20studs%2C%20for%20tube%20O.D.%2026.7%20mm?unique=2c7f494)
|
Type number: 391.04 |
72.08 € | |
![[103459] RIEGLER Stainless steel ball valve, weld-on studs, for tube O.D. 33.6 mm](/web/image/product.template/171422/image_128/%5B103459%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20weld-on%20studs%2C%20for%20tube%20O.D.%2033.6%20mm?unique=28d1a11)
|
Type number: 391.05 |
95.28 € | |
![[103460] RIEGLER Stainless steel ball valve, weld-on studs, for tube O.D. 42.4 mm](/web/image/product.template/171423/image_128/%5B103460%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20weld-on%20studs%2C%20for%20tube%20O.D.%2042.4%20mm?unique=6bde09d)
|
Type number: 391.06 |
136.09 € | |
![[103461] RIEGLER Stainless steel ball valve, weld-on studs, for tube O.D. 48 mm](/web/image/product.template/171424/image_128/%5B103461%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20weld-on%20studs%2C%20for%20tube%20O.D.%2048%20mm?unique=41d8c33)
|
Type number: 391.07 |
193.03 € | |
![[103462] RIEGLER Stainless steel ball valve, weld-on studs, for tube O.D. 60.5 mm](/web/image/product.template/171425/image_128/%5B103462%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20weld-on%20studs%2C%20for%20tube%20O.D.%2060.5%20mm?unique=56dbcf6)
|
Type number: 391.08 |
273.83 € | |
