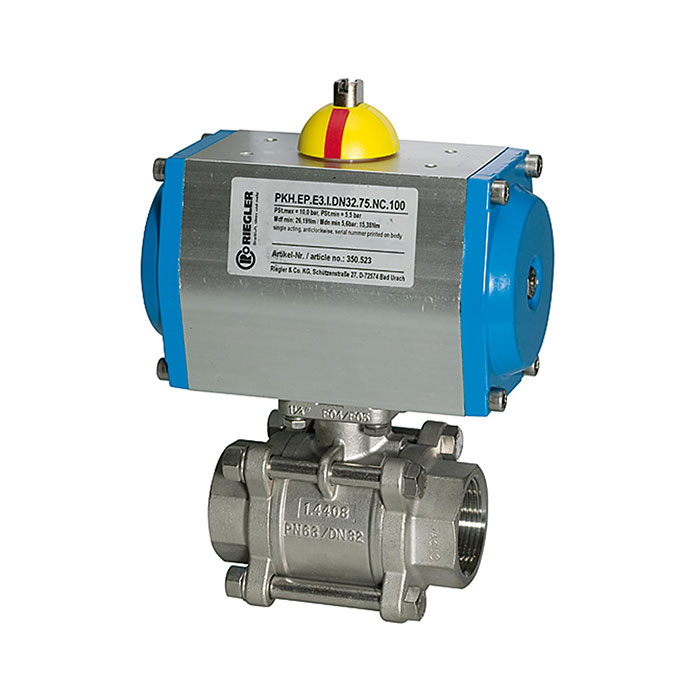

RIEGLER Stainless steel ball valve, Pneumat. actuation drive, Rp 3/4
Type number: 350.511/1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER ES-Kuha for industrial systems, max. 63 bar, Rp 3/4 - Type 350.511/1
The RIEGLER ES-Kuha, pneumat. Actuator, double acting, Rp3/4, DN 20, L=116 opens or shuts off the media flow with a quarter turn - full flow with minimum pressure loss. Designed for a maximum operating pressure of 63 bar. The operating temperature is between -20 °C and 70 °C. Rp 3/4 connection thread - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Actuator control pressure max. | 10 bar |
| Control pressure recommended | 5.5 bar |
| Max. operating pressure | 63 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Rotation angle | 90 ° |
| Valve adapter | according to NAMUR |
| Drive material | Anodized aluminum |
| Drive sealing material | NBR |
| Material ball valve | Stainless steel 1.4401, with ISO flange plate |
| Sealing material ball valve | PTFE |
| Thread | Rp 3/4 |
| DN | 20 |
| SW | 35 mm |
| A | 116 mm |
| B | 139 mm |
| D | 27 mm |
| L | 80 mm |
| Execution | double-acting |
| Class name | STAINLESS STEEL |
