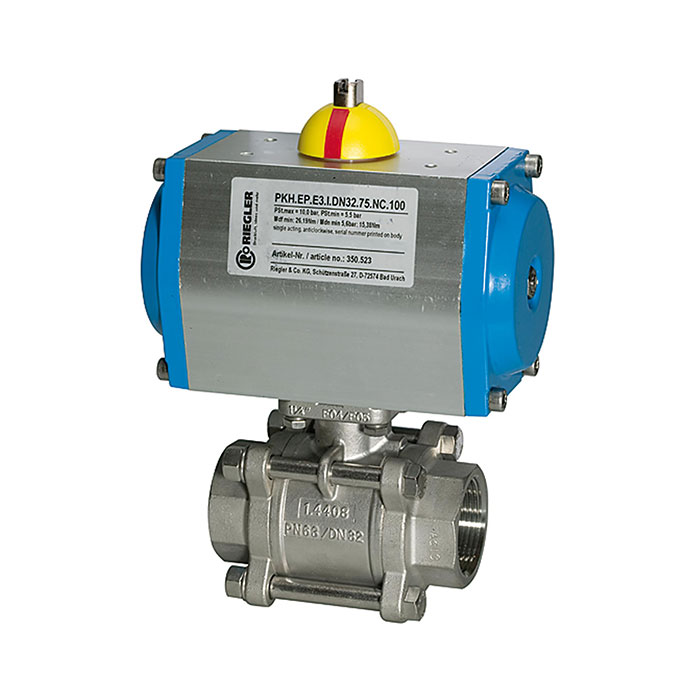

RIEGLER Stainless steel ball valve, Pneumat. actuation drive, Rp 2 1/2
Type number: 350.516
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER ES-Kuha for industrial systems, max. 63 bar, Rp 2 1/2 - Type 350.516
The RIEGLER ES-Kuha, pneumat. Actuator, double-acting, Rp 2 1/2, DN 65 opens or shuts off the media flow with a quarter turn - full flow with minimum pressure loss. Designed for a maximum operating pressure of 63 bar. The operating temperature is between -20 °C and 70 °C. Rp 2 1/2 connection thread - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Actuator control pressure max. | 10 bar |
| Control pressure recommended | 5.5 bar |
| Max. operating pressure | 63 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Rotation angle | 90 ° |
| Valve adapter | according to NAMUR |
| Drive material | Anodized aluminum |
| Drive sealing material | NBR |
| Material ball valve | Stainless steel 1.4401, with ISO flange plate |
| Sealing material ball valve | PTFE |
| Thread | Rp 2 1/2 |
| DN | 65 |
| SW | 89 mm |
| A | 180 mm |
| B | 238 mm |
| D | 60 mm |
| L | 185 mm |
| Execution | double-acting |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103599] RIEGLER Stainless steel ball valve, Pneumat. actuation drive, Rp 1](/web/image/product.template/171561/image_128/%5B103599%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Pneumat.%20actuation%20drive%2C%20Rp%201?unique=5b48e06)
|
Type number: 350.512 |
349.40 € | |
![[103601] RIEGLER Stainless steel ball valve, Pneumat. actuation drive, Rp 1 1/2](/web/image/product.template/171563/image_128/%5B103601%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Pneumat.%20actuation%20drive%2C%20Rp%201%201-2?unique=1e87453)
|
Type number: 350.514 |
477.76 € | |
![[103600] RIEGLER Stainless steel ball valve, Pneumat. actuation drive, Rp 1 1/4](/web/image/product.template/171562/image_128/%5B103600%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Pneumat.%20actuation%20drive%2C%20Rp%201%201-4?unique=a8778e1)
|
Type number: 350.513 |
417.64 € | |
![[103595] RIEGLER Stainless steel ball valve, Pneumat. actuation drive, Rp 1/2](/web/image/product.template/171557/image_128/%5B103595%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Pneumat.%20actuation%20drive%2C%20Rp%201-2?unique=c0453f9)
|
Type number: 350.510 |
269.70 € | |
![[103596] RIEGLER Stainless steel ball valve, Pneumat. actuation drive, Rp 1/2](/web/image/product.template/171558/image_128/%5B103596%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Pneumat.%20actuation%20drive%2C%20Rp%201-2?unique=0aa573d)
|
Type number: 350.510/1 |
230.54 € | |
![[103602] RIEGLER Stainless steel ball valve, Pneumat. actuation drive, Rp 2](/web/image/product.template/171564/image_128/%5B103602%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Pneumat.%20actuation%20drive%2C%20Rp%202?unique=52f26ed)
|
Type number: 350.515 |
546.10 € | |
![[103604] RIEGLER Stainless steel ball valve, Pneumat. actuation drive, Rp 3](/web/image/product.template/171566/image_128/%5B103604%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Pneumat.%20actuation%20drive%2C%20Rp%203?unique=3caba16)
|
Type number: 350.517 |
1,217.02 € | |
![[103598] RIEGLER Stainless steel ball valve, Pneumat. actuation drive, Rp 3/4](/web/image/product.template/171560/image_128/%5B103598%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Pneumat.%20actuation%20drive%2C%20Rp%203-4?unique=e866e96)
|
Type number: 350.511/1 |
246.27 € | |

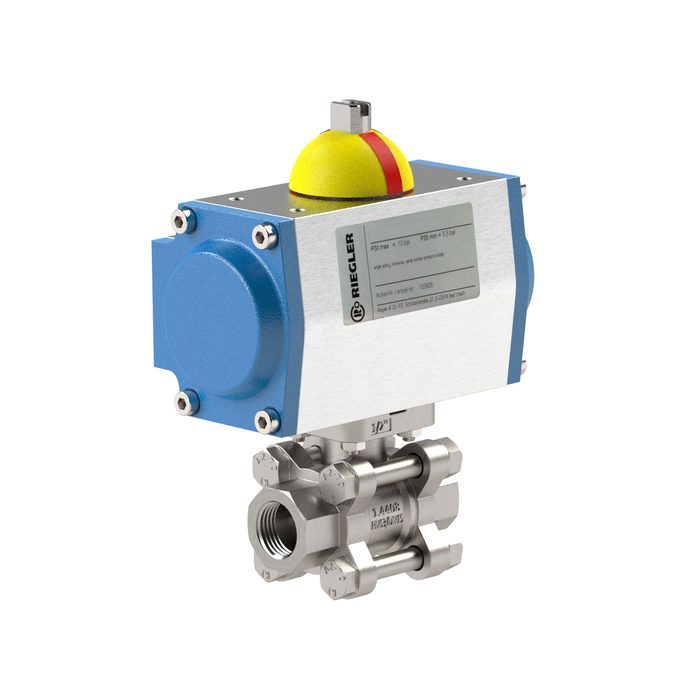

![[103597] RIEGLER Stainless steel ball valve, Pneumat. actuation drive, Rp 3/4](/web/image/product.template/171559/image_128/%5B103597%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Pneumat.%20actuation%20drive%2C%20Rp%203-4?unique=d72797e)
|
