RIEGLER Stainless steel ball valve, Pneumat. actuation drive, Rp 1
Type number: 350.522
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER ES-Kuha for industrial systems, max. 63 bar, Rp 1 - Type 350.522
The RIEGLER ES-Kuha, pneumat. Actuator, single-acting, Rp 1, DN 25 opens or shuts off the media flow with a quarter turn - full flow with minimum pressure loss. Designed for a maximum operating pressure of 63 bar. The operating temperature is between -20 °C and 70 °C. Rp 1 connection thread - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Actuator control pressure max. | 10 bar |
| Control pressure recommended | 5.5 bar |
| Max. operating pressure | 63 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Rotation angle | 90 ° |
| Valve adapter | according to NAMUR |
| Drive material | Anodized aluminum |
| Drive sealing material | NBR |
| Material ball valve | Stainless steel 1.4401, with ISO flange plate |
| Sealing material ball valve | PTFE |
| Thread | Rp 1 |
| DN | 25 |
| SW | 41 mm |
| A | 137 mm |
| B | 170 mm |
| D | 33 mm |
| L | 90 mm |
| Execution | single-acting - spring-closing |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103610] RIEGLER Stainless steel ball valve, Pneumat. actuation drive, Rp 1 1/2](/web/image/product.template/171572/image_128/%5B103610%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Pneumat.%20actuation%20drive%2C%20Rp%201%201-2?unique=4ac1975)
|
Type number: 350.524 |
643.50 € | |

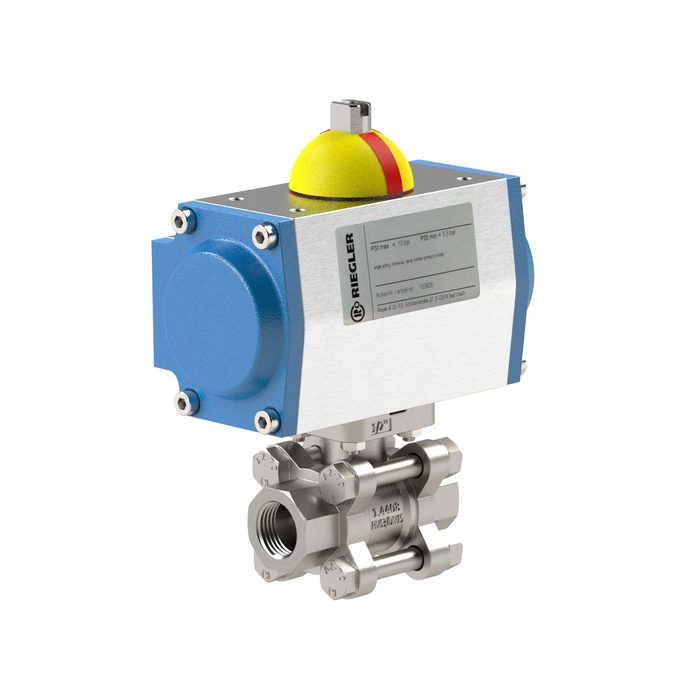

![[103609] RIEGLER Stainless steel ball valve, Pneumat. actuation drive, Rp 1 1/4](/web/image/product.template/171571/image_128/%5B103609%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Pneumat.%20actuation%20drive%2C%20Rp%201%201-4?unique=4e1c443)
|
