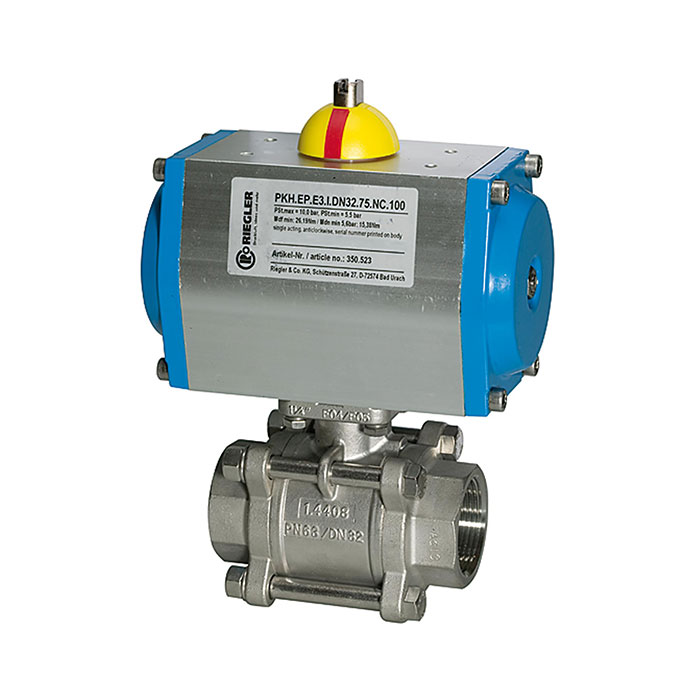

RIEGLER Stainless steel ball valve, Pneumat. actuation drive, Rp 1 1/4
Type number: 350.523
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
2-way stainless steel ball valve, pneumat. Actuator, single-acting, operating temp. -20 °C to 70 °C, Rp 1 1/4, DN 32, PN max. 63 bar
| Actuator control pressure max. | 10 bar |
| Control pressure recommended | 5.5 bar |
| Max. operating pressure | 63 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Rotation angle | 90 ° |
| Valve adapter | according to NAMUR |
| Drive material | Anodized aluminum |
| Drive sealing material | NBR |
| Material ball valve | Stainless steel 1.4401, with ISO flange plate |
| Sealing material ball valve | PTFE |
| Thread | Rp 1 1/4 |
| DN | 32 |
| SW | 50 mm |
| A | 161 mm |
| B | 188 mm |
| D | 37 mm |
| L | 110 mm |
| Execution | single-acting - spring-closing |
| Class name | STAINLESS STEEL |
