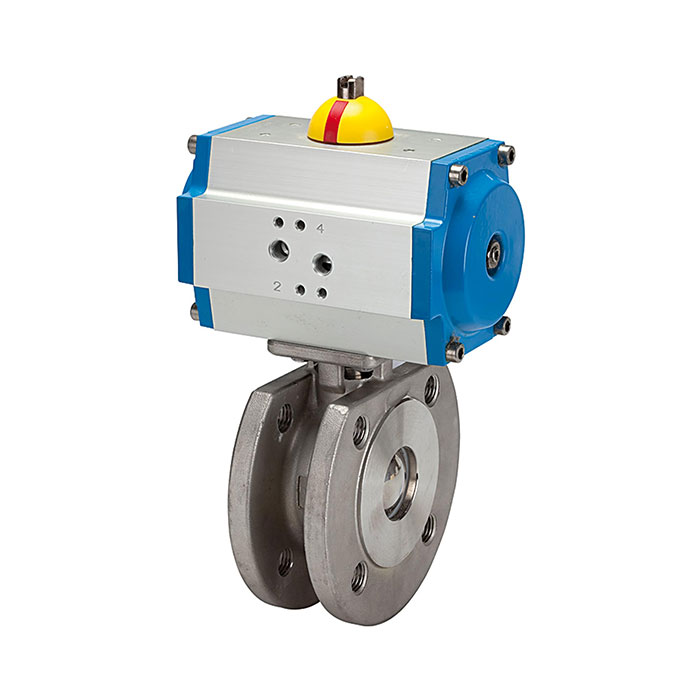

RIEGLER Compact flange ball valve, Pneumat. actuation drive, DN 65
Type number: 350.1065
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Compact flange Kuha for industrial systems - Type 350.1065
The RIEGLER compact flanged Kuha, pneu. Actuator, double-acting, ES, DN 65 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Control pressure max. | 5.5 bar |
| Rotation angle | 90 ° |
| Valve adapter | according to NAMUR |
| Operating temperature | -10 °C to 200 °C (depending on operating pressure) |
| Drive material | Anodized aluminum |
| Drive sealing material | NBR |
| Material ball valve | Stainless steel 1.4408, with ISO flange plate |
| Sealing material ball valve | PTFE |
| DN | 65 |
| PN | 16 bar |
| A | 180 mm |
| B | 205 mm |
| C | 100 mm |
| D | 185 mm |
| Execution | double-acting |
| E | 122 mm |
| F | 92.5 mm |
| Class name | STAINLESS STEEL |
