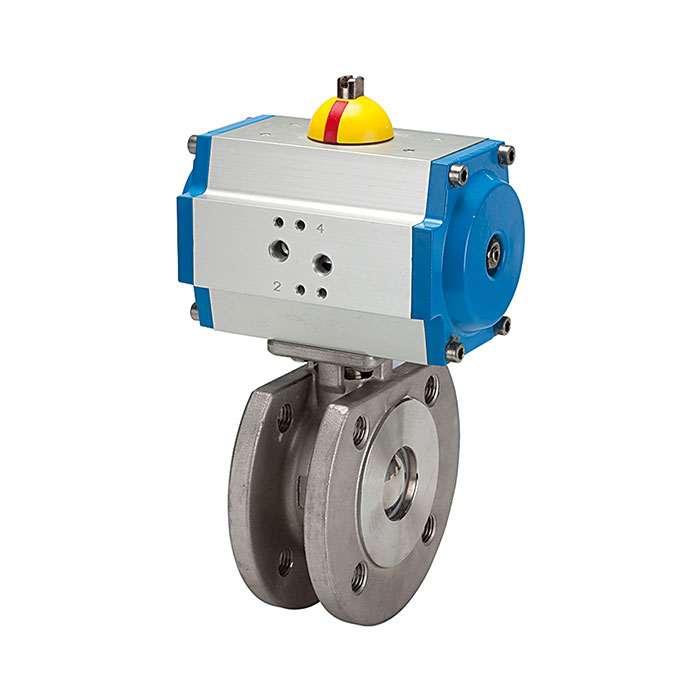

RIEGLER Compact flange ball valve, Pneumat. actuation drive, DN 80
Type number: 350.1080
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Compact flange ball valve, Pneumat. actuation drive, double-acting, Stainless steel, Operating temp. -10°C to 200°C, PN max 16 bar
| Control pressure max. | 5.5 bar |
| Rotation angle | 90 ° |
| Valve adapter | according to NAMUR |
| Operating temperature | -10 °C to 200 °C (depending on operating pressure) |
| Drive material | Anodized aluminum |
| Drive sealing material | NBR |
| Material ball valve | Stainless steel 1.4408, with ISO flange plate |
| Sealing material ball valve | PTFE |
| DN | 80 |
| PN | 16 bar |
| A | 209 mm |
| B | 240 mm |
| C | 120 mm |
| D | 200 mm |
| Execution | double-acting |
| E | 138 mm |
| F | 110.5 mm |
| Class name | STAINLESS STEEL |
