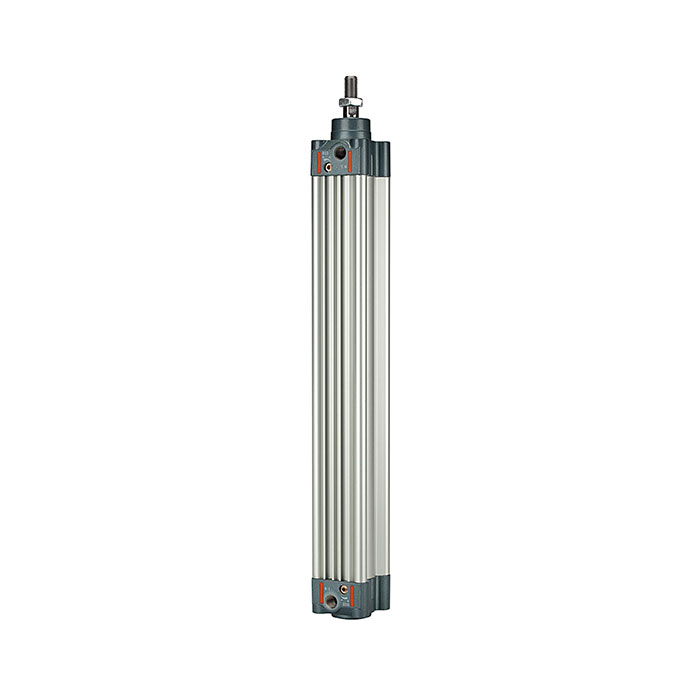

RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 800, G 3/8
Type number: 5.DMD.63800
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Standard cylinder, ISO 15552, double-acting, solenoid, piston Ø 63, stroke 800, G 3/8, max. working pressure 10 bar, temp. -10 °C to 80 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Medium | Lubricated or non-lubricated, filtered compressed air (if lubricated, then continuous) |
| Sealing material | NBR |
| Working pressure max. | 10 bar |
| Pipe | Aluminium profile tube with integrated T-slots, anodized |
| Structure | End caps / profile tube with self-tapping screws |
| Piston Ø | 63 mm |
| Function | double-acting |
| Response pressure min. | 0.3 bar |
| Stroke | 800 mm |
| Piston rods AG | M16x1.5 |
| Piston rod Ø | 20 mm |
| Piston rod thread | M16x1.5 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 3/8 |
| Piston rod | C45 steel, hard chrome-plated |
| Piston | POM |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Magnet | with magnet |
| Standard | according to ISO 15552 |
| Damping | with adjustable damping |
| Thread piston rod | External thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106246] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 100, G 1/2](/web/image/product.template/174193/image_128/%5B106246%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20100%2C%20G%201-2?unique=17b610a)
|
Type number: 5.DMD.100100 |
226.83 € | |
![[106247] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 125, G 1/2](/web/image/product.template/174194/image_128/%5B106247%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20125%2C%20G%201-2?unique=98e0202)
|
Type number: 5.DMD.100125 |
232.00 € | |
![[106248] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 160, G 1/2](/web/image/product.template/174195/image_128/%5B106248%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20160%2C%20G%201-2?unique=3b4b050)
|
Type number: 5.DMD.100160 |
238.50 € | |
![[106249] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 200, G 1/2](/web/image/product.template/174196/image_128/%5B106249%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20200%2C%20G%201-2?unique=a25ca3e)
|
Type number: 5.DMD.100200 |
244.03 € | |
![[106250] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 250, G 1/2](/web/image/product.template/174197/image_128/%5B106250%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20250%2C%20G%201-2?unique=a9df445)
|
Type number: 5.DMD.100250 |
256.97 € | |
![[106243] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 25, G 1/2](/web/image/product.template/174190/image_128/%5B106243%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%2025%2C%20G%201-2?unique=6a02a56)
|
Type number: 5.DMD.100025 |
207.92 € | |
![[106251] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 320, G 1/2](/web/image/product.template/174198/image_128/%5B106251%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20320%2C%20G%201-2?unique=b8bb3a7)
|
Type number: 5.DMD.100320 |
272.12 € | |
![[106252] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 400, G 1/2](/web/image/product.template/174199/image_128/%5B106252%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20400%2C%20G%201-2?unique=078f446)
|
Type number: 5.DMD.100400 |
288.60 € | |
![[106253] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 500, G 1/2](/web/image/product.template/174200/image_128/%5B106253%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20500%2C%20G%201-2?unique=a62adfa)
|
Type number: 5.DMD.100500 |
309.17 € | |
![[106244] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 50, G 1/2](/web/image/product.template/174191/image_128/%5B106244%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%2050%2C%20G%201-2?unique=f220617)
|
Type number: 5.DMD.100050 |
212.96 € | |
![[106254] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 600, G 1/2](/web/image/product.template/174201/image_128/%5B106254%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20600%2C%20G%201-2?unique=22d6afb)
|
Type number: 5.DMD.100600 |
324.30 € | |
![[106255] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 800, G 1/2](/web/image/product.template/174202/image_128/%5B106255%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20800%2C%20G%201-2?unique=ba0f696)
|
Type number: 5.DMD.100800 |
365.83 € | |
![[106245] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 80, G 1/2](/web/image/product.template/174192/image_128/%5B106245%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%2080%2C%20G%201-2?unique=6e0bf30)
|
Type number: 5.DMD.100080 |
222.08 € | |
![[106259] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 100, G 1/2](/web/image/product.template/174206/image_128/%5B106259%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20100%2C%20G%201-2?unique=7ba5dc4)
|
Type number: 5.DMD.125100 |
331.64 € | |
![[106260] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 125, G 1/2](/web/image/product.template/174207/image_128/%5B106260%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20125%2C%20G%201-2?unique=4e7cda9)
|
Type number: 5.DMD.125125 |
339.48 € | |
![[106261] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 160, G 1/2](/web/image/product.template/174208/image_128/%5B106261%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20160%2C%20G%201-2?unique=8a615f8)
|
Type number: 5.DMD.125160 |
350.42 € | |
![[106262] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 200, G 1/2](/web/image/product.template/174209/image_128/%5B106262%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20200%2C%20G%201-2?unique=dad64a2)
|
Type number: 5.DMD.125200 |
364.01 € | |
![[106263] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 250, G 1/2](/web/image/product.template/174210/image_128/%5B106263%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20250%2C%20G%201-2?unique=e05aacd)
|
Type number: 5.DMD.125250 |
373.41 € | |
![[106256] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 25, G 1/2](/web/image/product.template/174203/image_128/%5B106256%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%2025%2C%20G%201-2?unique=dba50d7)
|
Type number: 5.DMD.125025 |
308.17 € | |
![[106264] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 320, G 1/2](/web/image/product.template/174211/image_128/%5B106264%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20320%2C%20G%201-2?unique=a9c4501)
|
Type number: 5.DMD.125320 |
400.49 € | |
![[106265] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 400, G 1/2](/web/image/product.template/174212/image_128/%5B106265%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20400%2C%20G%201-2?unique=3545868)
|
Type number: 5.DMD.125400 |
426.95 € | |
![[106266] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 500, G 1/2](/web/image/product.template/174213/image_128/%5B106266%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20500%2C%20G%201-2?unique=8aadb0f)
|
Type number: 5.DMD.125500 |
452.09 € | |
![[106257] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 50, G 1/2](/web/image/product.template/174204/image_128/%5B106257%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%2050%2C%20G%201-2?unique=efb1e62)
|
Type number: 5.DMD.125050 |
312.59 € | |
![[106267] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 600, G 1/2](/web/image/product.template/174214/image_128/%5B106267%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20600%2C%20G%201-2?unique=29efb62)
|
Type number: 5.DMD.125600 |
481.45 € | |
![[106268] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 800, G 1/2](/web/image/product.template/174215/image_128/%5B106268%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20800%2C%20G%201-2?unique=35e2e92)
|
Type number: 5.DMD.125800 |
543.20 € | |
![[106258] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 80, G 1/2](/web/image/product.template/174205/image_128/%5B106258%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%2080%2C%20G%201-2?unique=6fe4860)
|
Type number: 5.DMD.125080 |
320.94 € | |
![[106181] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 100, G 1/8](/web/image/product.template/174128/image_128/%5B106181%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20100%2C%20G%201-8?unique=e5570d7)
|
Type number: 5.DMD.32100 |
75.84 € | |
![[106182] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 125, G 1/8](/web/image/product.template/174129/image_128/%5B106182%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20125%2C%20G%201-8?unique=2df2a0a)
|
Type number: 5.DMD.32125 |
77.55 € | |
![[106183] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 160, G 1/8](/web/image/product.template/174130/image_128/%5B106183%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20160%2C%20G%201-8?unique=c00e209)
|
Type number: 5.DMD.32160 |
79.94 € | |
![[106184] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 200, G 1/8](/web/image/product.template/174131/image_128/%5B106184%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20200%2C%20G%201-8?unique=bb90b77)
|
Type number: 5.DMD.32200 |
82.66 € | |
![[106185] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 250, G 1/8](/web/image/product.template/174132/image_128/%5B106185%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20250%2C%20G%201-8?unique=95e195d)
|
Type number: 5.DMD.32250 |
86.16 € | |
![[106178] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 25, G 1/8](/web/image/product.template/174125/image_128/%5B106178%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2025%2C%20G%201-8?unique=744c4cd)
|
Type number: 5.DMD.32025 |
70.77 € | |
![[106186] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 320, G 1/8](/web/image/product.template/174133/image_128/%5B106186%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20320%2C%20G%201-8?unique=4c15bf3)
|
Type number: 5.DMD.32320 |
90.83 € | |
![[106187] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 400, G 1/8](/web/image/product.template/174134/image_128/%5B106187%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20400%2C%20G%201-8?unique=91da06e)
|
Type number: 5.DMD.32400 |
97.32 € | |
![[106188] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 500, G 1/8](/web/image/product.template/174135/image_128/%5B106188%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20500%2C%20G%201-8?unique=b1fc51b)
|
Type number: 5.DMD.32500 |
102.77 € | |
![[106179] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 50, G 1/8](/web/image/product.template/174126/image_128/%5B106179%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2050%2C%20G%201-8?unique=c80948a)
|
Type number: 5.DMD.32050 |
73.47 € | |
![[106189] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 600, G 1/8](/web/image/product.template/174136/image_128/%5B106189%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20600%2C%20G%201-8?unique=5f918fd)
|
Type number: 5.DMD.32600 |
109.55 € | |
![[106190] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 800, G 1/8](/web/image/product.template/174137/image_128/%5B106190%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20800%2C%20G%201-8?unique=606348a)
|
Type number: 5.DMD.32800 |
124.85 € | |
![[106180] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 80, G 1/8](/web/image/product.template/174127/image_128/%5B106180%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2080%2C%20G%201-8?unique=57fd89b)
|
Type number: 5.DMD.32080 |
74.49 € | |
![[106194] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 100, G 1/4](/web/image/product.template/174141/image_128/%5B106194%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20100%2C%20G%201-4?unique=b034da6)
|
Type number: 5.DMD.40100 |
87.38 € | |
![[106195] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 125, G 1/4](/web/image/product.template/174142/image_128/%5B106195%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20125%2C%20G%201-4?unique=7ffd604)
|
Type number: 5.DMD.40125 |
89.54 € | |
![[106196] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 160, G 1/4](/web/image/product.template/174143/image_128/%5B106196%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20160%2C%20G%201-4?unique=997d979)
|
Type number: 5.DMD.40160 |
92.57 € | |
![[106197] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 200, G 1/4](/web/image/product.template/174144/image_128/%5B106197%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20200%2C%20G%201-4?unique=cdeed09)
|
Type number: 5.DMD.40200 |
97.07 € | |
![[106198] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 250, G 1/4](/web/image/product.template/174145/image_128/%5B106198%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20250%2C%20G%201-4?unique=784faa7)
|
Type number: 5.DMD.40250 |
101.70 € | |
![[106191] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 25, G 1/4](/web/image/product.template/174138/image_128/%5B106191%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2025%2C%20G%201-4?unique=b47e8a2)
|
Type number: 5.DMD.40025 |
82.94 € | |
![[106199] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 320, G 1/4](/web/image/product.template/174146/image_128/%5B106199%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20320%2C%20G%201-4?unique=451a5b0)
|
Type number: 5.DMD.40320 |
106.02 € | |
![[106200] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 400, G 1/4](/web/image/product.template/174147/image_128/%5B106200%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20400%2C%20G%201-4?unique=e193660)
|
Type number: 5.DMD.40400 |
114.75 € | |
![[106201] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 500, G 1/4](/web/image/product.template/174148/image_128/%5B106201%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20500%2C%20G%201-4?unique=b5d6d3d)
|
Type number: 5.DMD.40500 |
121.87 € | |
![[106192] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 50, G 1/4](/web/image/product.template/174139/image_128/%5B106192%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2050%2C%20G%201-4?unique=585748c)
|
Type number: 5.DMD.40050 |
83.06 € | |
![[106202] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 600, G 1/4](/web/image/product.template/174149/image_128/%5B106202%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20600%2C%20G%201-4?unique=d2ea76f)
|
Type number: 5.DMD.40600 |
130.09 € | |
![[106203] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 800, G 1/4](/web/image/product.template/174150/image_128/%5B106203%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20800%2C%20G%201-4?unique=a844c5e)
|
Type number: 5.DMD.40800 |
149.76 € | |
![[106193] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 80, G 1/4](/web/image/product.template/174140/image_128/%5B106193%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2080%2C%20G%201-4?unique=9072b61)
|
Type number: 5.DMD.40080 |
86.83 € | |
![[106207] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 100, G 1/4](/web/image/product.template/174154/image_128/%5B106207%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20100%2C%20G%201-4?unique=ad4552b)
|
Type number: 5.DMD.50100 |
102.92 € | |
![[106208] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 125, G 1/4](/web/image/product.template/174155/image_128/%5B106208%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20125%2C%20G%201-4?unique=8dbd387)
|
Type number: 5.DMD.50125 |
107.00 € | |
![[106209] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 160, G 1/4](/web/image/product.template/174156/image_128/%5B106209%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20160%2C%20G%201-4?unique=a6efa09)
|
Type number: 5.DMD.50160 |
110.69 € | |
![[106210] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 200, G 1/4](/web/image/product.template/174157/image_128/%5B106210%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20200%2C%20G%201-4?unique=287d97c)
|
Type number: 5.DMD.50200 |
114.92 € | |
![[106211] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 250, G 1/4](/web/image/product.template/174158/image_128/%5B106211%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20250%2C%20G%201-4?unique=1b52866)
|
Type number: 5.DMD.50250 |
120.21 € | |
![[106204] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 25, G 1/4](/web/image/product.template/174151/image_128/%5B106204%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2025%2C%20G%201-4?unique=633e50a)
|
Type number: 5.DMD.50025 |
96.15 € | |
![[106212] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 320, G 1/4](/web/image/product.template/174159/image_128/%5B106212%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20320%2C%20G%201-4?unique=af72810)
|
Type number: 5.DMD.50320 |
127.62 € | |
![[106213] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 400, G 1/4](/web/image/product.template/174160/image_128/%5B106213%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20400%2C%20G%201-4?unique=4943705)
|
Type number: 5.DMD.50400 |
136.08 € | |
![[106214] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 500, G 1/4](/web/image/product.template/174161/image_128/%5B106214%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20500%2C%20G%201-4?unique=3dc5fca)
|
Type number: 5.DMD.50500 |
144.63 € | |
![[106205] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 50, G 1/4](/web/image/product.template/174152/image_128/%5B106205%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2050%2C%20G%201-4?unique=8c8137d)
|
Type number: 5.DMD.50050 |
97.69 € | |
![[106215] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 600, G 1/4](/web/image/product.template/174162/image_128/%5B106215%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20600%2C%20G%201-4?unique=e3c9a63)
|
Type number: 5.DMD.50600 |
157.25 € | |
![[106216] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 800, G 1/4](/web/image/product.template/174163/image_128/%5B106216%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20800%2C%20G%201-4?unique=886519f)
|
Type number: 5.DMD.50800 |
175.44 € | |
![[106206] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 80, G 1/4](/web/image/product.template/174153/image_128/%5B106206%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2080%2C%20G%201-4?unique=7681373)
|
Type number: 5.DMD.50080 |
102.23 € | |
![[106220] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 100, G 3/8](/web/image/product.template/174167/image_128/%5B106220%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20100%2C%20G%203-8?unique=9d0163c)
|
Type number: 5.DMD.63100 |
122.86 € | |
![[106221] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 125, G 3/8](/web/image/product.template/174168/image_128/%5B106221%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20125%2C%20G%203-8?unique=8101d38)
|
Type number: 5.DMD.63125 |
125.82 € | |
![[106222] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 160, G 3/8](/web/image/product.template/174169/image_128/%5B106222%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20160%2C%20G%203-8?unique=403e1a5)
|
Type number: 5.DMD.63160 |
128.16 € | |
![[106223] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 200, G 3/8](/web/image/product.template/174170/image_128/%5B106223%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20200%2C%20G%203-8?unique=7f6ebbf)
|
Type number: 5.DMD.63200 |
132.84 € | |
![[106224] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 250, G 3/8](/web/image/product.template/174171/image_128/%5B106224%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20250%2C%20G%203-8?unique=68c5441)
|
Type number: 5.DMD.63250 |
138.68 € | |
![[106217] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 25, G 3/8](/web/image/product.template/174164/image_128/%5B106217%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2025%2C%20G%203-8?unique=9290316)
|
Type number: 5.DMD.63025 |
112.07 € | |
![[106225] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 320, G 3/8](/web/image/product.template/174172/image_128/%5B106225%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20320%2C%20G%203-8?unique=ec65710)
|
Type number: 5.DMD.63320 |
146.44 € | |
![[106226] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 400, G 3/8](/web/image/product.template/174173/image_128/%5B106226%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20400%2C%20G%203-8?unique=2392a2b)
|
Type number: 5.DMD.63400 |
155.74 € | |
![[106227] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 500, G 3/8](/web/image/product.template/174174/image_128/%5B106227%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20500%2C%20G%203-8?unique=0341155)
|
Type number: 5.DMD.63500 |
169.72 € | |
![[106218] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 50, G 3/8](/web/image/product.template/174165/image_128/%5B106218%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2050%2C%20G%203-8?unique=59787f3)
|
Type number: 5.DMD.63050 |
115.32 € | |
![[106228] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 600, G 3/8](/web/image/product.template/174175/image_128/%5B106228%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20600%2C%20G%203-8?unique=1765a1f)
|
Type number: 5.DMD.63600 |
181.55 € | |
![[106219] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 80, G 3/8](/web/image/product.template/174166/image_128/%5B106219%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2080%2C%20G%203-8?unique=e267d38)
|
Type number: 5.DMD.63080 |
120.48 € | |
![[106233] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 100, G 3/8](/web/image/product.template/174180/image_128/%5B106233%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20100%2C%20G%203-8?unique=bd477d9)
|
Type number: 5.DMD.80100 |
171.41 € | |
![[106234] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 125, G 3/8](/web/image/product.template/174181/image_128/%5B106234%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20125%2C%20G%203-8?unique=fd3ed6a)
|
Type number: 5.DMD.80125 |
175.47 € | |
![[106235] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 160, G 3/8](/web/image/product.template/174182/image_128/%5B106235%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20160%2C%20G%203-8?unique=e7373bd)
|
Type number: 5.DMD.80160 |
178.64 € | |
![[106236] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 200, G 3/8](/web/image/product.template/174183/image_128/%5B106236%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20200%2C%20G%203-8?unique=0706982)
|
Type number: 5.DMD.80200 |
187.63 € | |
![[106237] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 250, G 3/8](/web/image/product.template/174184/image_128/%5B106237%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20250%2C%20G%203-8?unique=cd26a1a)
|
Type number: 5.DMD.80250 |
195.74 € | |
![[106230] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 25, G 3/8](/web/image/product.template/174177/image_128/%5B106230%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%2025%2C%20G%203-8?unique=57d4553)
|
Type number: 5.DMD.80025 |
156.60 € | |
![[106238] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 320, G 3/8](/web/image/product.template/174185/image_128/%5B106238%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20320%2C%20G%203-8?unique=83fb65f)
|
Type number: 5.DMD.80320 |
204.23 € | |
![[106239] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 400, G 3/8](/web/image/product.template/174186/image_128/%5B106239%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20400%2C%20G%203-8?unique=6071021)
|
Type number: 5.DMD.80400 |
217.03 € | |
![[106240] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 500, G 3/8](/web/image/product.template/174187/image_128/%5B106240%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20500%2C%20G%203-8?unique=d6e229f)
|
Type number: 5.DMD.80500 |
235.57 € | |
![[106231] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 50, G 3/8](/web/image/product.template/174178/image_128/%5B106231%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%2050%2C%20G%203-8?unique=79a9844)
|
Type number: 5.DMD.80050 |
161.07 € | |
![[106241] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 600, G 3/8](/web/image/product.template/174188/image_128/%5B106241%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20600%2C%20G%203-8?unique=a45ad51)
|
Type number: 5.DMD.80600 |
249.01 € | |
![[106242] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 800, G 3/8](/web/image/product.template/174189/image_128/%5B106242%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20800%2C%20G%203-8?unique=d01ea6e)
|
Type number: 5.DMD.80800 |
280.16 € | |
![[106232] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 80, G 3/8](/web/image/product.template/174179/image_128/%5B106232%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%2080%2C%20G%203-8?unique=f2cd26a)
|
Type number: 5.DMD.80080 |
168.17 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

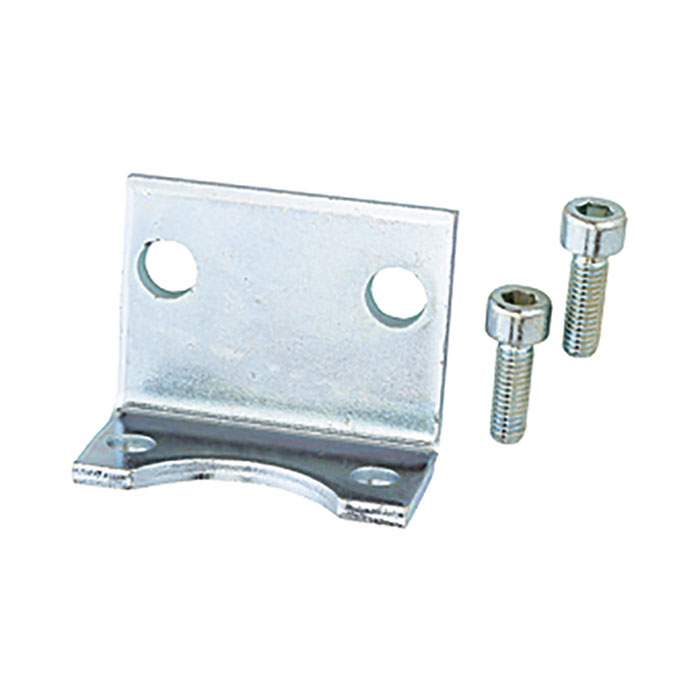

![[106128] RIEGLER Foot fastening, ISO 15552, for compact/standard cyl., Piston Ø 63](/web/image/product.template/174075/image_128/%5B106128%5D%20RIEGLER%20Foot%20fastening%2C%20ISO%2015552%2C%20for%20compact-standard%20cyl.%2C%20Piston%20%C3%98%2063?unique=58445dd)
|
Type number: 450.14-M |
10.94 € | |

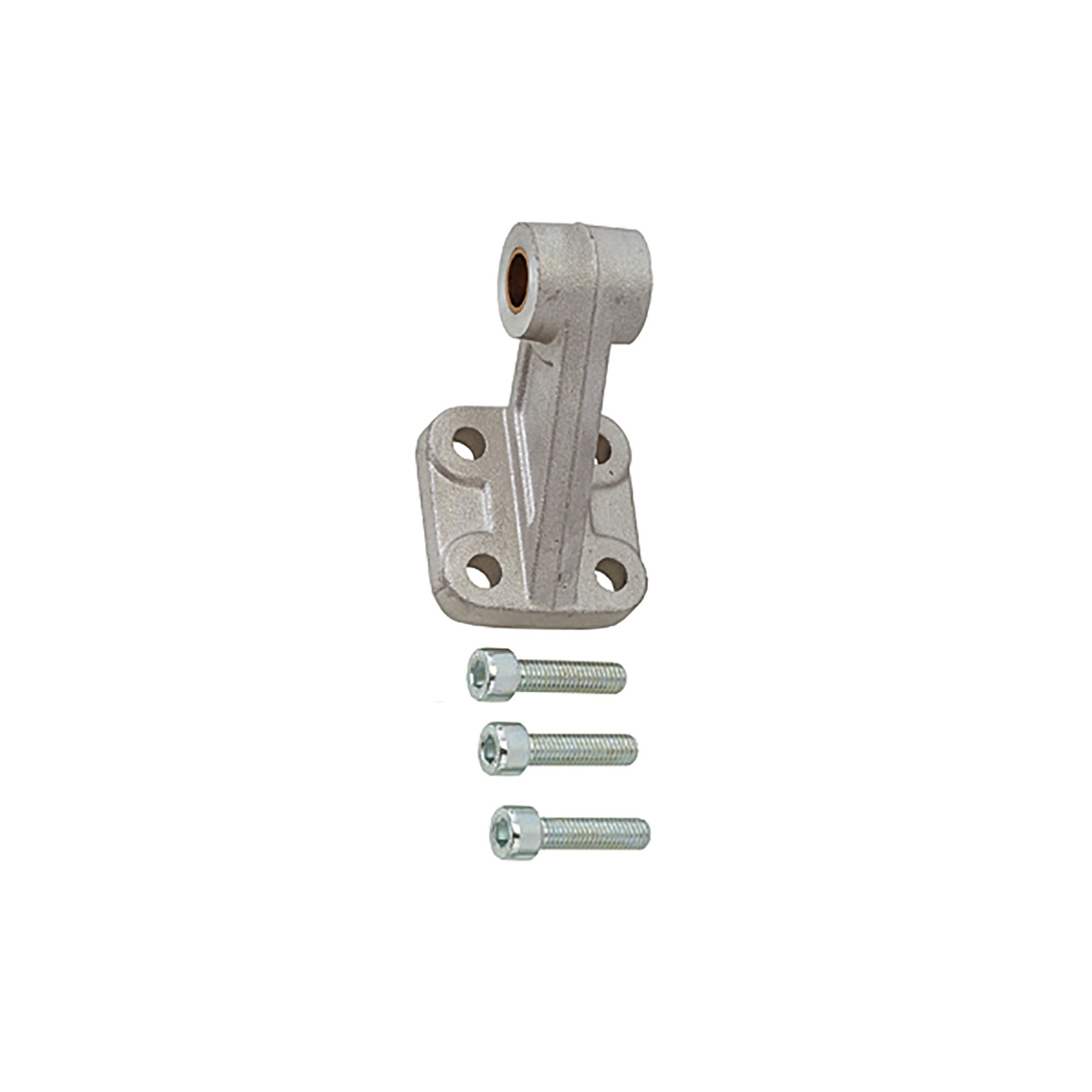

![[106140] RIEGLER Counter bearing CETOP, for ISO15552, ISO21287, Ø63, with 4 screws](/web/image/product.template/174087/image_128/%5B106140%5D%20RIEGLER%20Counter%20bearing%20CETOP%2C%20for%20ISO15552%2C%20ISO21287%2C%20%C3%9863%2C%20with%204%20screws?unique=05714df)
|
Type number: 437.26-M |
38.23 € | |
![[106162] RIEGLER Front or floor flange, ISO 15552, ISO 21287, Piston Ø 63](/web/image/product.template/174109/image_128/%5B106162%5D%20RIEGLER%20Front%20or%20floor%20flange%2C%20ISO%2015552%2C%20ISO%2021287%2C%20Piston%20%C3%98%2063?unique=06dc9aa)
|
Type number: 450.040-M |
22.94 € | |
![[106167] RIEGLER Piston rod nut, for compact/standard cyl., Piston Ø 80-100/50-63](/web/image/product.template/174114/image_128/%5B106167%5D%20RIEGLER%20Piston%20rod%20nut%2C%20for%20compact-standard%20cyl.%2C%20Piston%20%C3%98%2080-100-50-63?unique=67cd7d2)
|
Type number: 435.83-M |
1.99 € | |
![[106168] RIEGLER Threaded plate for the T-nut, for compact/standard cylinder, M4](/web/image/product.template/174115/image_128/%5B106168%5D%20RIEGLER%20Threaded%20plate%20for%20the%20T-nut%2C%20for%20compact-standard%20cylinder%2C%20M4?unique=7af2e15)
|
Type number: 235.11-M |
5.45 € | |
![[106169] RIEGLER Threaded plate for the T-nut, for compact/standard cylinder, M3](/web/image/product.template/174116/image_128/%5B106169%5D%20RIEGLER%20Threaded%20plate%20for%20the%20T-nut%2C%20for%20compact-standard%20cylinder%2C%20M3?unique=f11963d)
|
Type number: 235.12-M |
5.45 € | |
![[106384] RIEGLER Cover belts for the T-slot, Piston Ø 32-125/32-63](/web/image/product.template/175441/image_128/%5B106384%5D%20RIEGLER%20Cover%20belts%20for%20the%20T-slot%2C%20Piston%20%C3%98%2032-125-32-63?unique=3ce693a)
|
Type number: 455.06-M |
4.24 € | |
![[125522] RIEGLER Threaded plate for the T-nut, for compact/standard cylinder M3/M4](/web/image/product.template/202499/image_128/%5B125522%5D%20RIEGLER%20Threaded%20plate%20for%20the%20T-nut%2C%20for%20compact-standard%20cylinder%20M3-M4?unique=2f56be9)
|
Type number: 235.05-M |
5.95 € | |

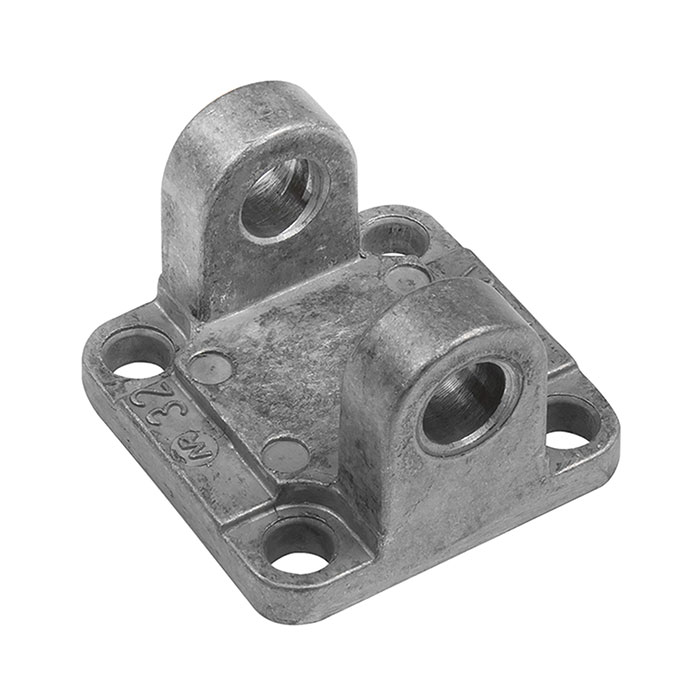

![[156661] RIEGLER Female hinge model, ISO 15552, ISO 21287, Ø63](/web/image/product.template/213397/image_128/%5B156661%5D%20RIEGLER%20Female%20hinge%20model%2C%20ISO%2015552%2C%20ISO%2021287%2C%20%C3%9863?unique=50dff91)
|
Typennummer: 453.004 |
21.59 € | |

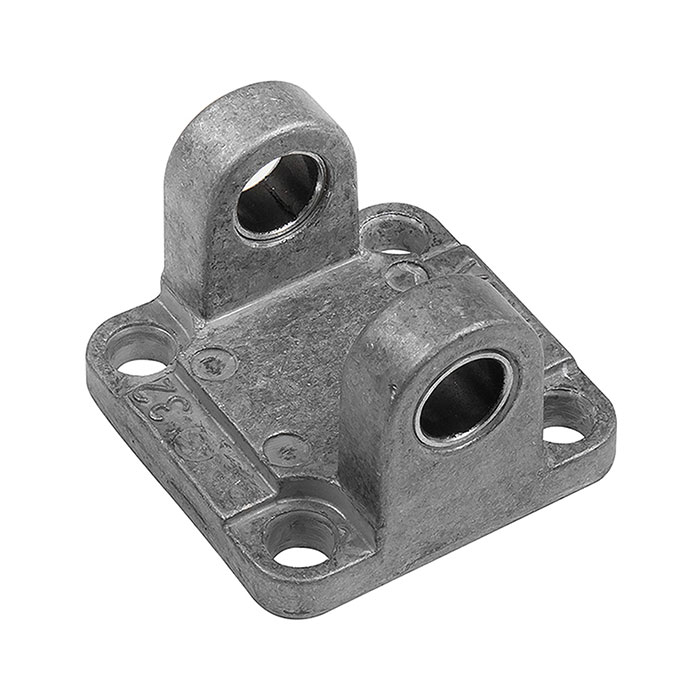

![[156672] RIEGLER Female hinge model with bushes, ISO 15552, ISO 21287, Ø63](/web/image/product.template/213408/image_128/%5B156672%5D%20RIEGLER%20Female%20hinge%20model%20with%20bushes%2C%20ISO%2015552%2C%20ISO%2021287%2C%20%C3%9863?unique=6e3c63c)
|
Typennummer: 453.015 |
25.05 € | |

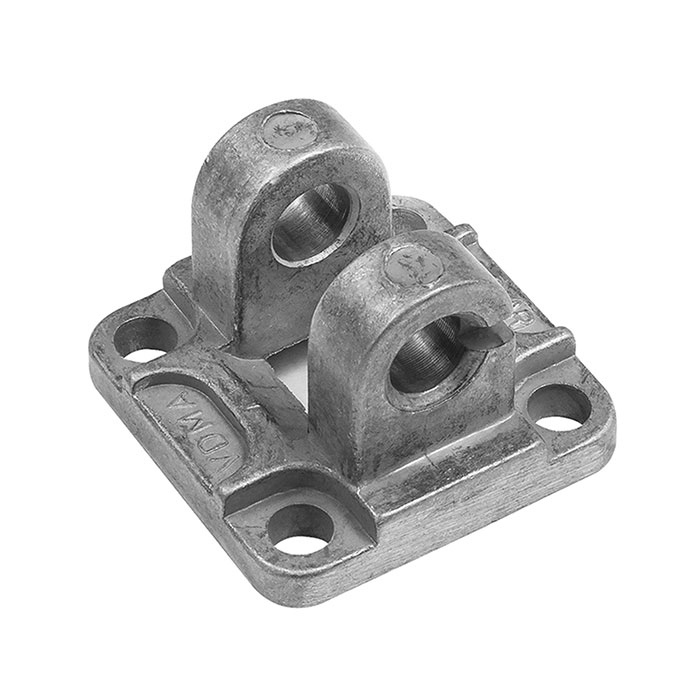

![[156683] RIEGLER Female hinge model for articulated male hinge model, Ø63](/web/image/product.template/213419/image_128/%5B156683%5D%20RIEGLER%20Female%20hinge%20model%20for%20articulated%20male%20hinge%20model%2C%20%C3%9863?unique=63a6660)
|
Typennummer: 453.026 |
23.79 € | |

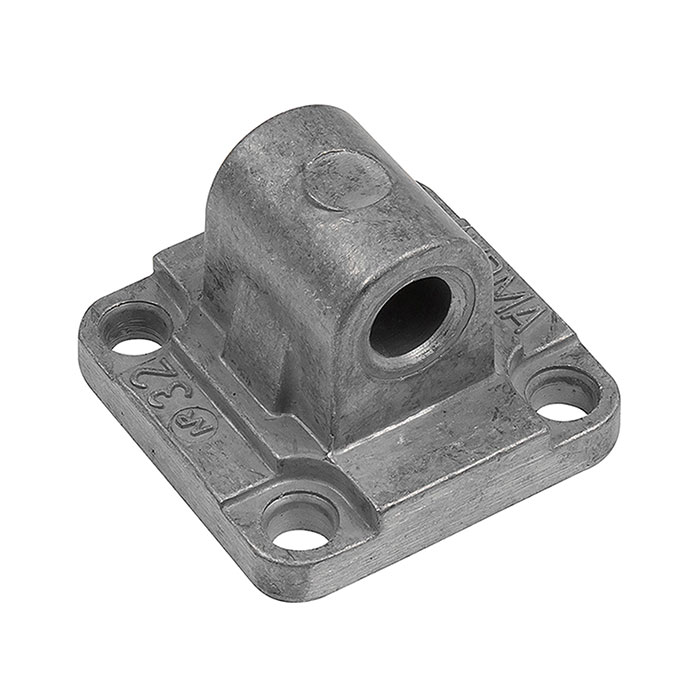

![[156704] RIEGLER Male hinge model, ISO 15552, ISO 21287, Ø63](/web/image/product.template/214445/image_128/%5B156704%5D%20RIEGLER%20Male%20hinge%20model%2C%20ISO%2015552%2C%20ISO%2021287%2C%20%C3%9863?unique=96ececb)
|
Typennummer: 453.047 |
19.39 € | |

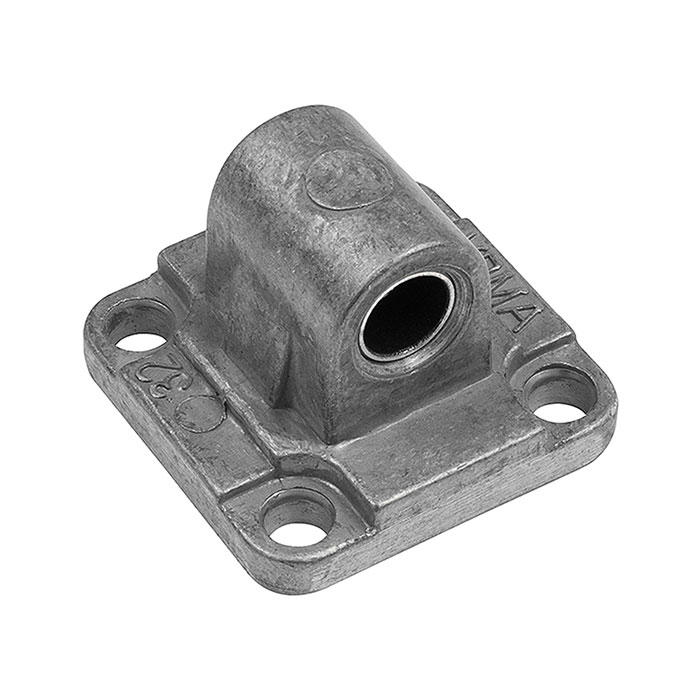

![[156715] RIEGLER Male hinge model with bushes, ISO 15552, ISO 21287, Ø63](/web/image/product.template/214456/image_128/%5B156715%5D%20RIEGLER%20Male%20hinge%20model%20with%20bushes%2C%20ISO%2015552%2C%20ISO%2021287%2C%20%C3%9863?unique=a48a8aa)
|
Typennummer: 453.058 |
22.55 € | |

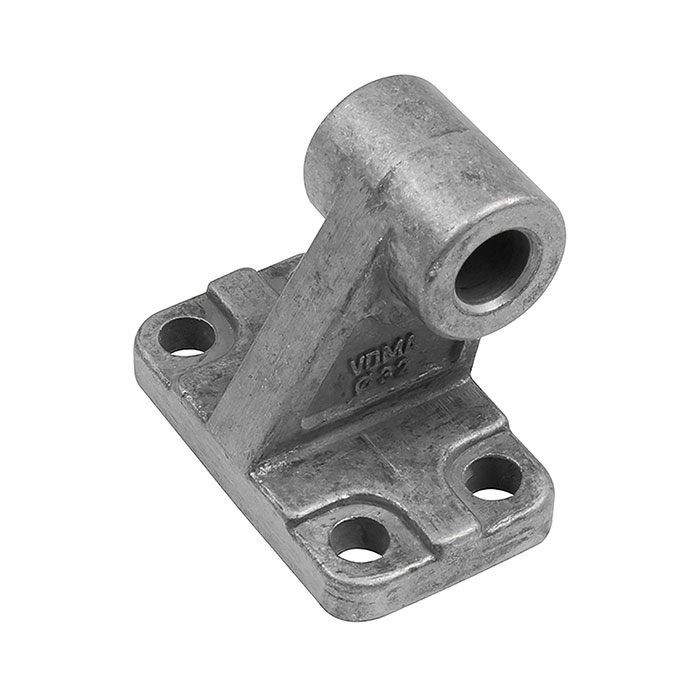

![[156726] RIEGLER Counter-hinge model CETOP RP107P, ISO 15552, ISO 21287, Ø63](/web/image/product.template/214467/image_128/%5B156726%5D%20RIEGLER%20Counter-hinge%20model%20CETOP%20RP107P%2C%20ISO%2015552%2C%20ISO%2021287%2C%20%C3%9863?unique=f747ce6)
|
Typennummer: 453.069 |
23.51 € | |

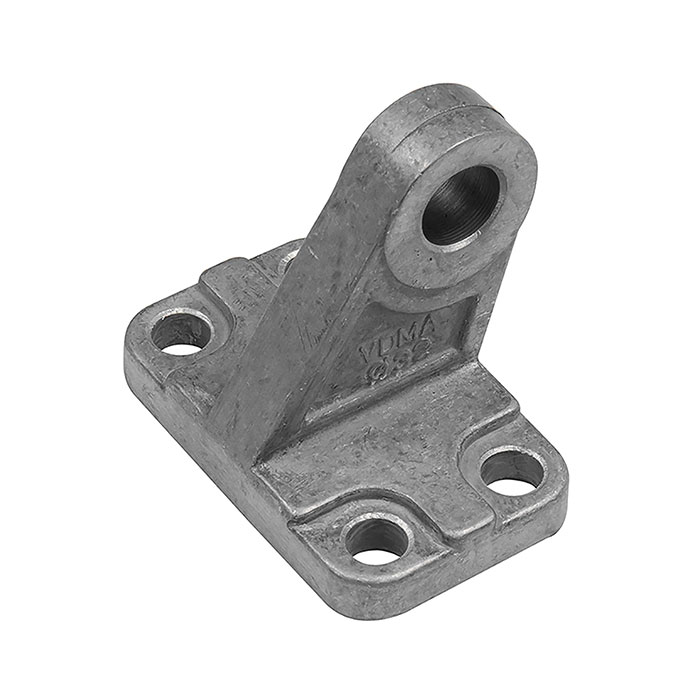

![[156736] RIEGLER Counter-hinge model, ISO 15552/ISO 21287, for fork mod. DIN 71752](/web/image/product.template/214477/image_128/%5B156736%5D%20RIEGLER%20Counter-hinge%20model%2C%20ISO%2015552-ISO%2021287%2C%20for%20fork%20mod.%20DIN%2071752?unique=7661978)
|
Typennummer: 453.079 |
29.49 € | |

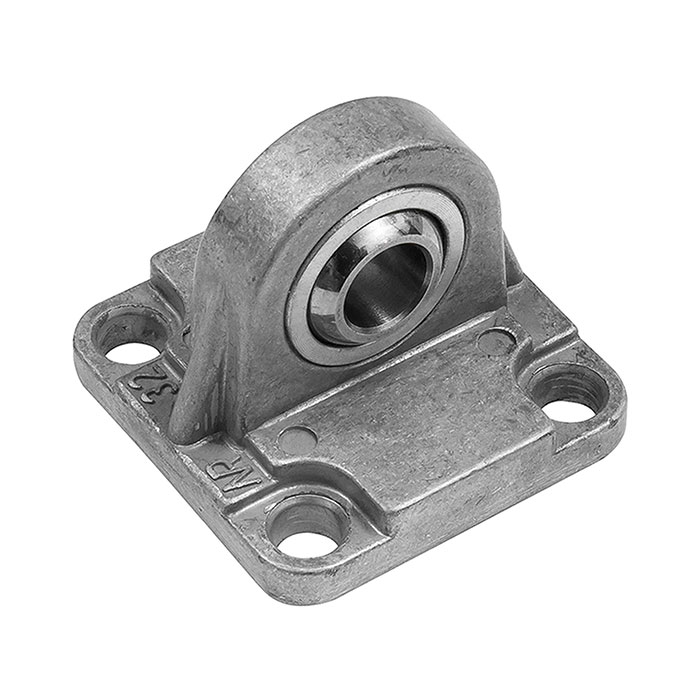

![[156746] RIEGLER Articulated male hinge model, ISO 15552, ISO 21287, Ø63](/web/image/product.template/214486/image_128/%5B156746%5D%20RIEGLER%20Articulated%20male%20hinge%20model%2C%20ISO%2015552%2C%20ISO%2021287%2C%20%C3%9863?unique=8e96a62)
|
Typennummer: 453.089 |
49.71 € | |

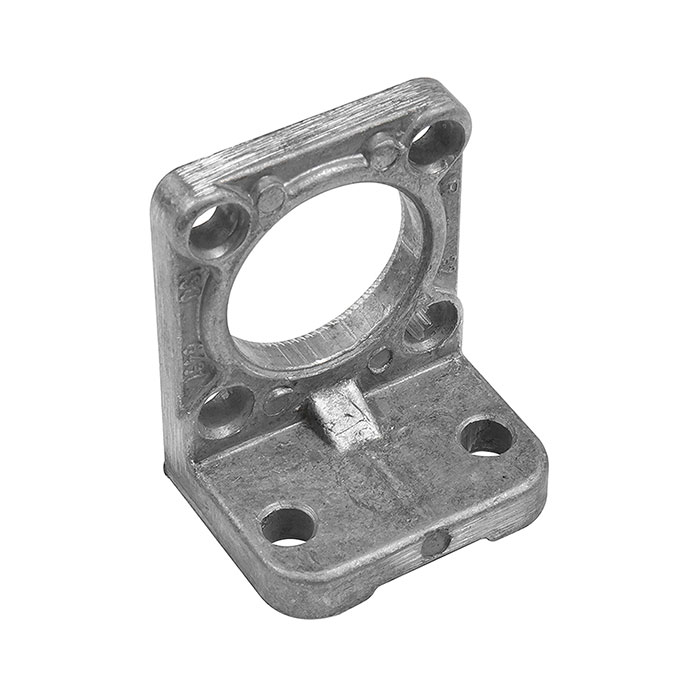

![[156757] RIEGLER Angle flange, ISO 15552, ISO 21287, Ø63](/web/image/product.template/214497/image_128/%5B156757%5D%20RIEGLER%20Angle%20flange%2C%20ISO%2015552%2C%20ISO%2021287%2C%20%C3%9863?unique=a7cbc0d)
|
Typennummer: 453.100 |
15.43 € | |
![[179923] RIEGLER Rod clevis AP2 ISO 8140, bore 16, M16x1.5](/web/image/product.template/216435/image_128/%5B179923%5D%20RIEGLER%20Rod%20clevis%20AP2%20ISO%208140%2C%20bore%2016%2C%20M16x1.5?unique=7b0f6fb)
|
Typennummer: GAKAP2M16X15 |
12.96 € | |
![[179934] RIEGLER Rod eye AP6 ISO 8139, bore 16, M16x1.5](/web/image/product.template/216446/image_128/%5B179934%5D%20RIEGLER%20Rod%20eye%20AP6%20ISO%208139%2C%20bore%2016%2C%20M16x1.5?unique=59463b8)
|
Typennummer: GEKAP6M16X15 |
39.09 € | |
![[179945] RIEGLER Self-aligning rod coupler, for piston rod thread M16x1.5](/web/image/product.template/216457/image_128/%5B179945%5D%20RIEGLER%20Self-aligning%20rod%20coupler%2C%20for%20piston%20rod%20thread%20M16x1.5?unique=16c6fea)
|
Typennummer: AKM16X15 |
67.84 € | |
![[194356] RIEGLER REED sensor for T-slots and rectangular slots,2-wire, 2.5 m cable](/web/image/product.template/216648/image_128/%5B194356%5D%20RIEGLER%20REED%20sensor%20for%20T-slots%20and%20rectangular%20slots%2C2-wire%2C%202.5%20m%20cable?unique=f37061a)
|
Typennummer: 235.03-M-1 |
20.19 € | |
![[194357] RIEGLER REED sensor for T-slots and rectangular slots, 2-wire, M8, 300mm](/web/image/product.template/216649/image_128/%5B194357%5D%20RIEGLER%20REED%20sensor%20for%20T-slots%20and%20rectangular%20slots%2C%202-wire%2C%20M8%2C%20300mm?unique=0207303)
|
Typennummer: 235.04-M-1 |
28.68 € | |
![[194358] RIEGLER HALL sensor for T-slots and rectangular slots,3-wire, 2.5 m cable](/web/image/product.template/216650/image_128/%5B194358%5D%20RIEGLER%20HALL%20sensor%20for%20T-slots%20and%20rectangular%20slots%2C3-wire%2C%202.5%20m%20cable?unique=62056c4)
|
Typennummer: 235.06-M-1 |
27.41 € | |
![[194359] RIEGLER HALL sensor for T-slots and rectangular slots, 3-wire, M8, 300mm](/web/image/product.template/216651/image_128/%5B194359%5D%20RIEGLER%20HALL%20sensor%20for%20T-slots%20and%20rectangular%20slots%2C%203-wire%2C%20M8%2C%20300mm?unique=93f5269)
|
Typennummer: 235.07-M-1 |
36.66 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

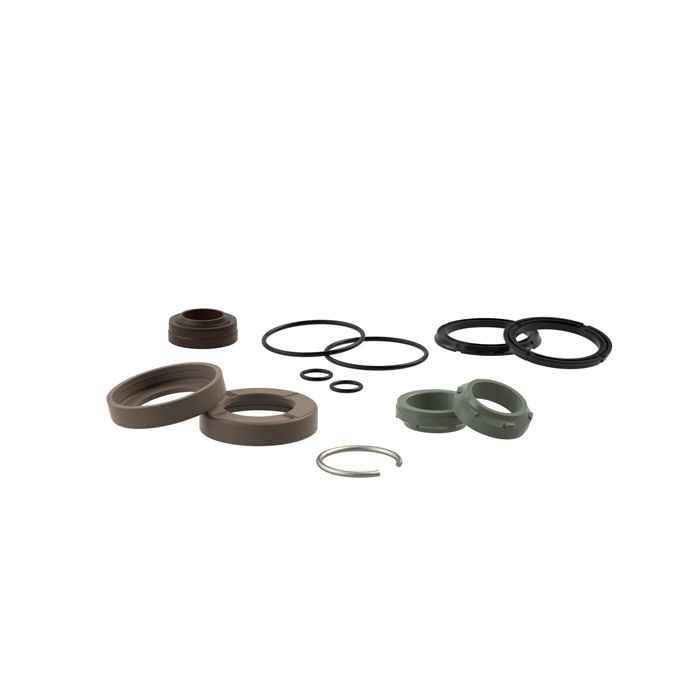

![[129696] RIEGLER Seal kit for standard cylinder ISO 15552, piston Ø 63, FKM](/web/image/product.template/273045/image_128/%5B129696%5D%20RIEGLER%20Seal%20kit%20for%20standard%20cylinder%20ISO%2015552%2C%20piston%20%C3%98%2063%2C%20FKM?unique=ab1bf05)
|
Type number: 237.26-M |
101.73 € | |

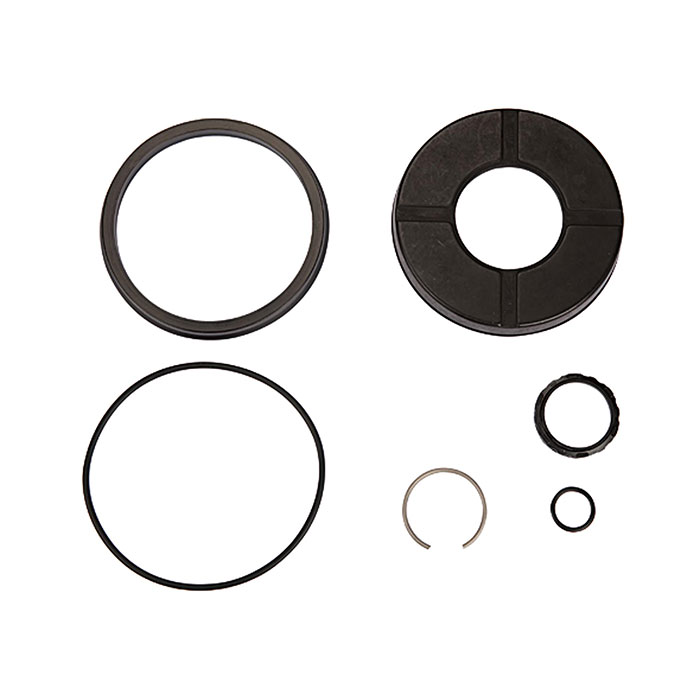

![[106288] RIEGLER Seal set (wear part) for standard cylinder, Piston Ø 63, NBR seal](/web/image/product.template/175345/image_128/%5B106288%5D%20RIEGLER%20Seal%20set%20%28wear%20part%29%20for%20standard%20cylinder%2C%20Piston%20%C3%98%2063%2C%20NBR%20seal?unique=8383095)
|
Type number: 235.26-M |
9.90 € | |

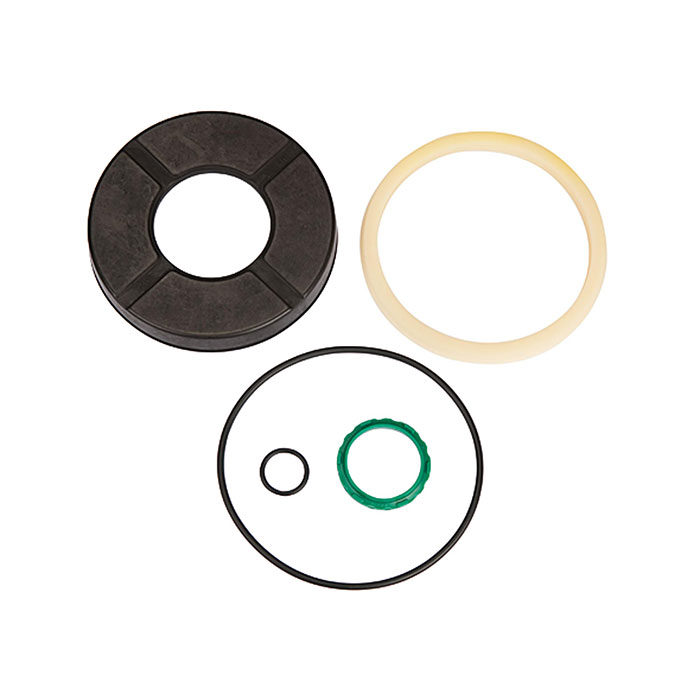

![[106295] RIEGLER Seal set (wear part) for standard cylinder, Piston Ø 63, PU seal](/web/image/product.template/175352/image_128/%5B106295%5D%20RIEGLER%20Seal%20set%20%28wear%20part%29%20for%20standard%20cylinder%2C%20Piston%20%C3%98%2063%2C%20PU%20seal?unique=9287685)
|
Type number: 236.26-M |
38.09 € | |
