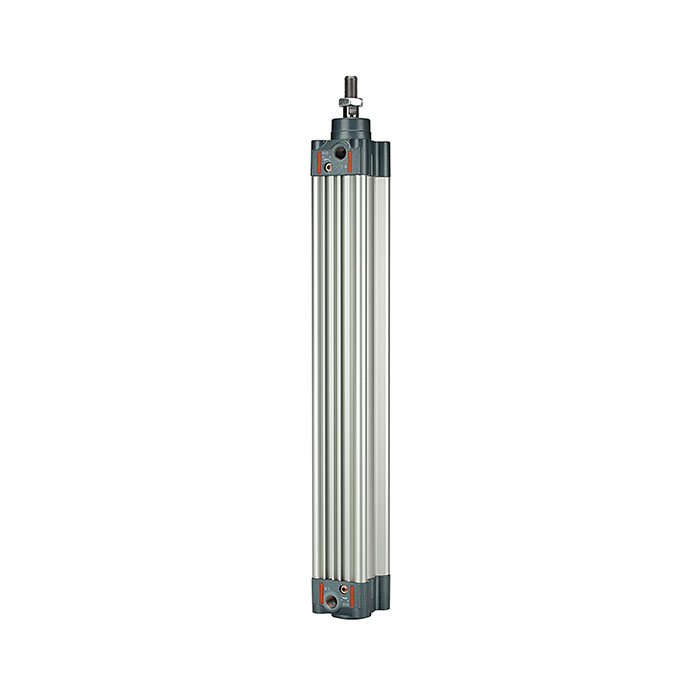

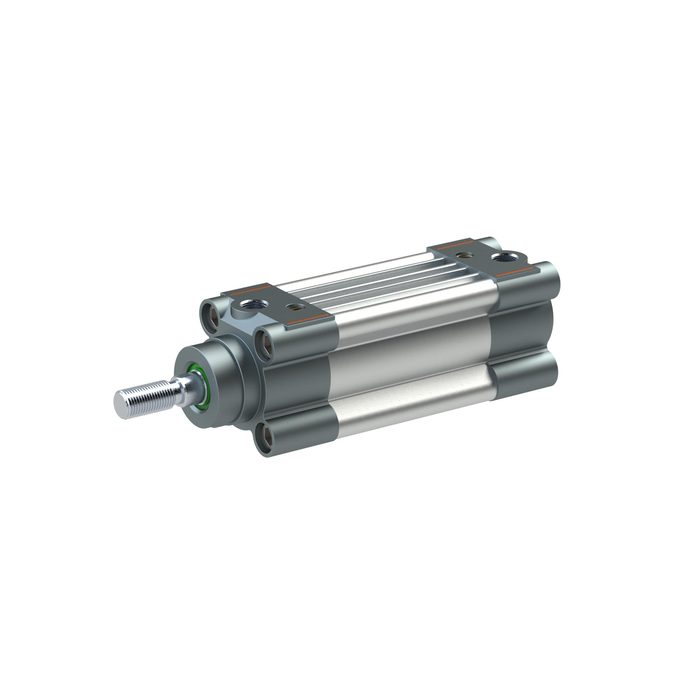

RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 800, G 1/4
Type number: 5.DMD.50800
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Standard cylinder, ISO 15552, double-acting, solenoid, piston Ø 50, stroke 800, G 1/4, max. working pressure 10 bar, temp. -10 °C to 80 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Medium | Lubricated or non-lubricated, filtered compressed air (if lubricated, then continuous) |
| Sealing material | NBR |
| Working pressure max. | 10 bar |
| Pipe | Aluminium profile tube with integrated T-slots, anodized |
| Structure | End caps / profile tube with self-tapping screws |
| Piston Ø | 50 mm |
| Function | double-acting |
| Response pressure min. | 0.3 bar |
| Stroke | 800 mm |
| Piston rods AG | M16x1.5 |
| Piston rod Ø | 20 mm |
| Piston rod thread | M16x1.5 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 |
| Piston rod | C45 steel, hard chrome-plated |
| Piston | POM |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Magnet | with magnet |
| Standard | according to ISO 15552 |
| Damping | with adjustable damping |
| Thread piston rod | External thread on the piston rod |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

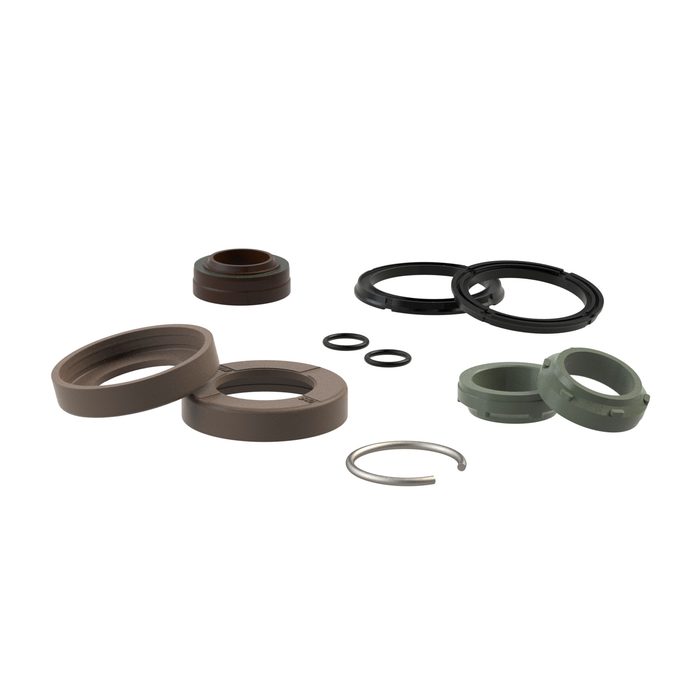

![[151370] RIEGLER Seal kit for standard cylinder ISO 15552, piston Ø 50, FKM](/web/image/product.template/276003/image_128/%5B151370%5D%20RIEGLER%20Seal%20kit%20for%20standard%20cylinder%20ISO%2015552%2C%20piston%20%C3%98%2050%2C%20FKM?unique=6642f80)
|
Typennummer: 237.25-M |
80.57 € | |
![[106287] RIEGLER Seal set (wear part) for standard cylinder, Piston Ø 50, NBR seal](/web/image/product.template/175344/image_128/%5B106287%5D%20RIEGLER%20Seal%20set%20%28wear%20part%29%20for%20standard%20cylinder%2C%20Piston%20%C3%98%2050%2C%20NBR%20seal?unique=4de5f83)
|
Type number: 235.25-M |
8.98 € | |

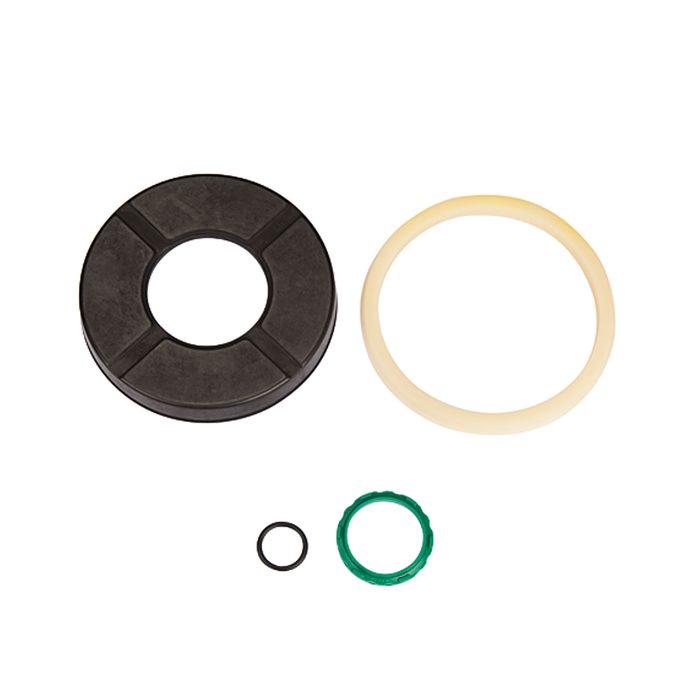

![[106294] RIEGLER Seal set (wear part) for standard cylinder, Piston Ø 50, PU seal](/web/image/product.template/175351/image_128/%5B106294%5D%20RIEGLER%20Seal%20set%20%28wear%20part%29%20for%20standard%20cylinder%2C%20Piston%20%C3%98%2050%2C%20PU%20seal?unique=2e2a2b9)
|
Type number: 236.25-M |
30.86 € | |
