RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 80, G 1/2
Type number: 5.DMD.125080
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Standard cylinder, ISO 15552, double-acting, solenoid, piston Ø 125, stroke 80, G 1/2, max. working pressure 10 bar, temp. -10 °C to 80 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Medium | Lubricated or non-lubricated, filtered compressed air (if lubricated, then continuous) |
| Sealing material | NBR |
| Working pressure max. | 10 bar |
| Pipe | Aluminium profile tube with integrated T-slots, anodized |
| Structure | End caps / profile tube with self-tapping screws |
| Piston Ø | 125 mm |
| Function | double-acting |
| Response pressure min. | 0.2 bar |
| Stroke | 80 mm |
| Piston rods AG | M27x2 |
| Piston rod Ø | 32 mm |
| Piston rod thread | M27x2 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/2 |
| Piston rod | C45 steel, hard chrome-plated |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Magnet | with magnet |
| Standard | according to ISO 15552 |
| Damping | with adjustable damping |
| Thread piston rod | External thread on the piston rod |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

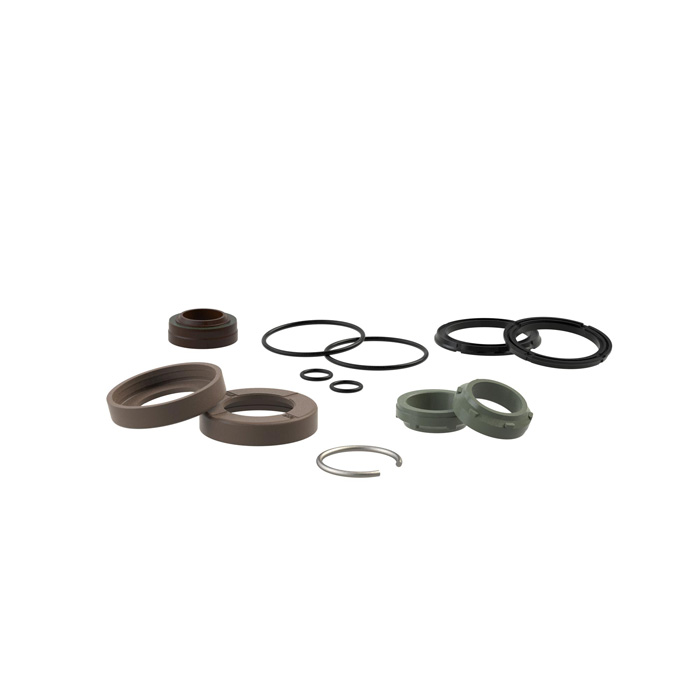

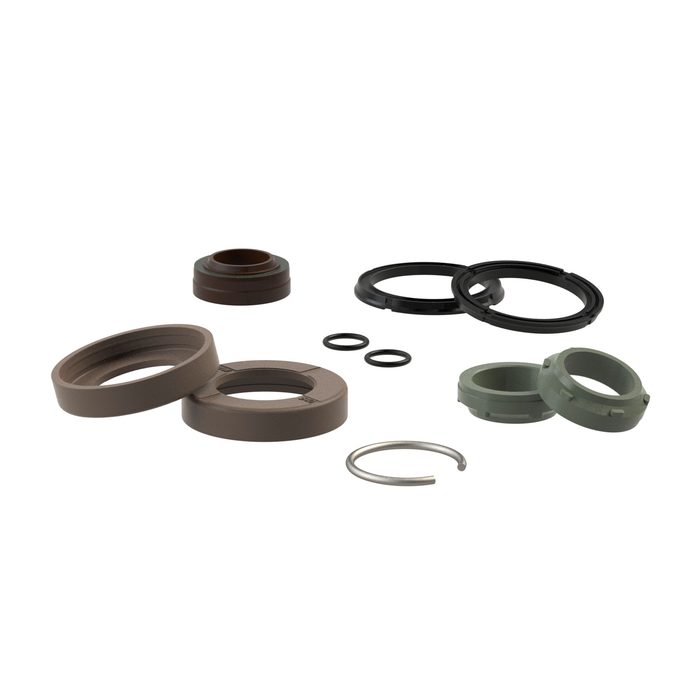

![[129697] RIEGLER Seal kit for standard cylinder ISO 15552, piston Ø 125, FKM](/web/image/product.template/273046/image_128/%5B129697%5D%20RIEGLER%20Seal%20kit%20for%20standard%20cylinder%20ISO%2015552%2C%20piston%20%C3%98%20125%2C%20FKM?unique=244fbbc)
|
Type number: 237.29-M |
225.29 € | |
![[106291] RIEGLER Seal set (wear part) for standard cylinder, Piston Ø125, NBR seal](/web/image/product.template/175348/image_128/%5B106291%5D%20RIEGLER%20Seal%20set%20%28wear%20part%29%20for%20standard%20cylinder%2C%20Piston%20%C3%98125%2C%20NBR%20seal?unique=afee6f6)
|
Type number: 235.29-M |
21.69 € | |

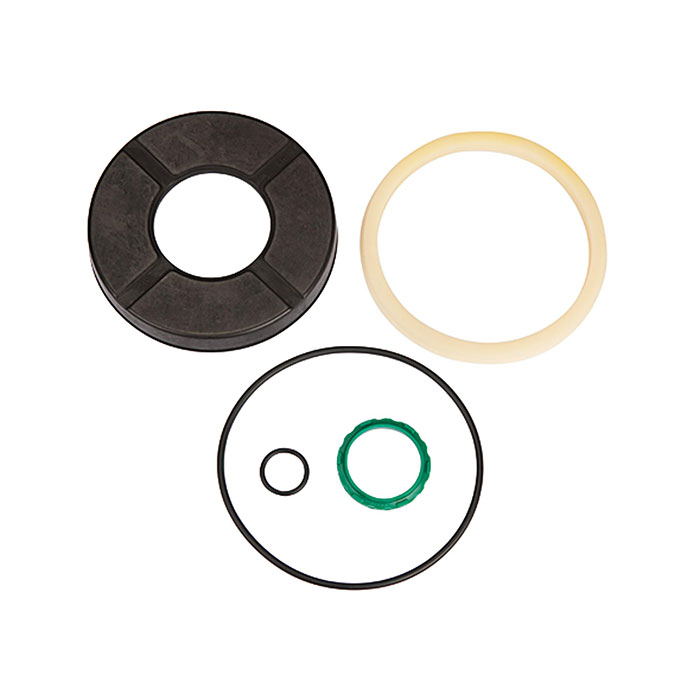

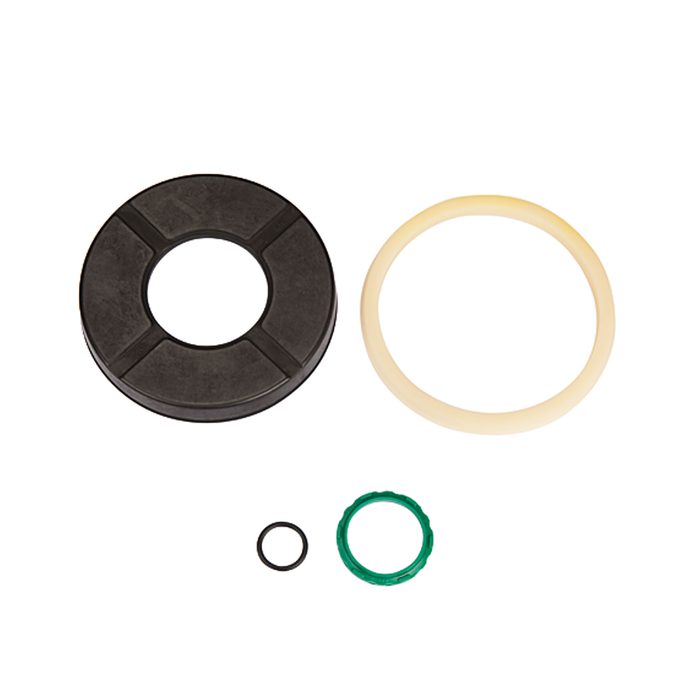

![[106298] RIEGLER Seal set (wear part) for standard cylinder, Piston Ø 125, PU seal](/web/image/product.template/175355/image_128/%5B106298%5D%20RIEGLER%20Seal%20set%20%28wear%20part%29%20for%20standard%20cylinder%2C%20Piston%20%C3%98%20125%2C%20PU%20seal?unique=4147f2b)
|
Type number: 236.29-M |
68.02 € | |
