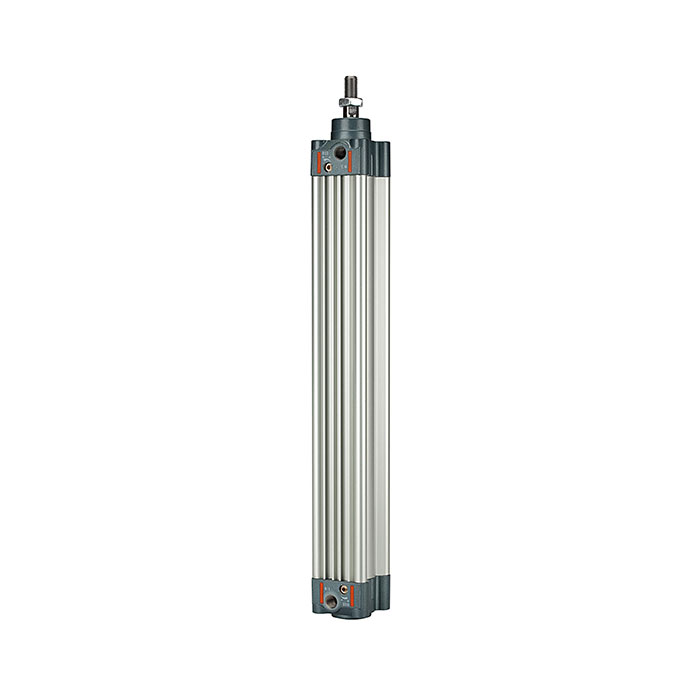

RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 800, G 1/4
Type number: 5.DMD.40800
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Standard cylinder for automation technology, max. 10 bar, G 1/4 - Type 5.DMD.40800
The RIEGLER standard cylinder, double-acting, solenoid, piston Ø 40, stroke 800, G 1/4 converts compressed air into linear force and movement - manufactured in accordance with ISO 15552 / ISO 6432. with NBR seals. Designed for a maximum operating pressure of 10 bar. The temperature range is between -10 °C and 80 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for lubricated or non-lubricated, filtered compressed air (if lubricated, then continuous). With piston Ø 40 mm, stroke 800 mm, C45 steel piston rod, hard chrome-plated - for powerful linear drive solutions. Standard-compliant and interchangeable across manufacturers.
Field of application
Typical areas of application: Automation, mechanical engineering and handling technology.
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Medium | Lubricated or non-lubricated, filtered compressed air (if lubricated, then continuous) |
| Sealing material | NBR |
| Working pressure max. | 10 bar |
| Pipe | Aluminium profile tube with integrated T-slots, anodized |
| Structure | End caps / profile tube with self-tapping screws |
| Piston Ø | 40 mm |
| Function | double-acting |
| Response pressure min. | 0.4 bar |
| Stroke | 800 mm |
| Piston rods AG | M12x1.25 |
| Piston rod Ø | 16 mm |
| Piston rod thread | M12x1.25 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 |
| Piston rod | C45 steel, hard chrome-plated |
| Piston | POM |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Magnet | with magnet |
| Standard | according to ISO 15552 |
| Damping | with adjustable damping |
| Thread piston rod | External thread on the piston rod |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

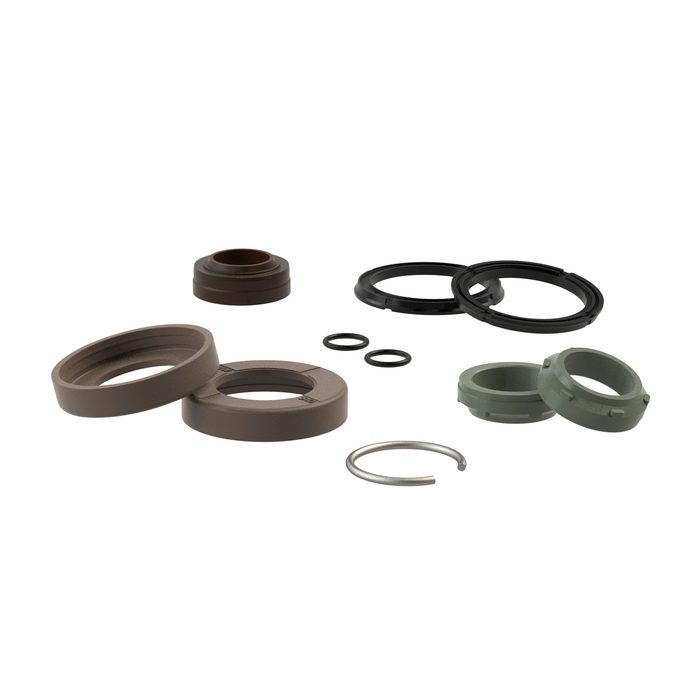

![[198282] RIEGLER Seal kit for standard cylinder ISO 15552, piston Ø 40, FKM](/web/image/product.template/276021/image_128/%5B198282%5D%20RIEGLER%20Seal%20kit%20for%20standard%20cylinder%20ISO%2015552%2C%20piston%20%C3%98%2040%2C%20FKM?unique=d86dca7)
|
Typennummer: 237.24-M |
73.13 € | |

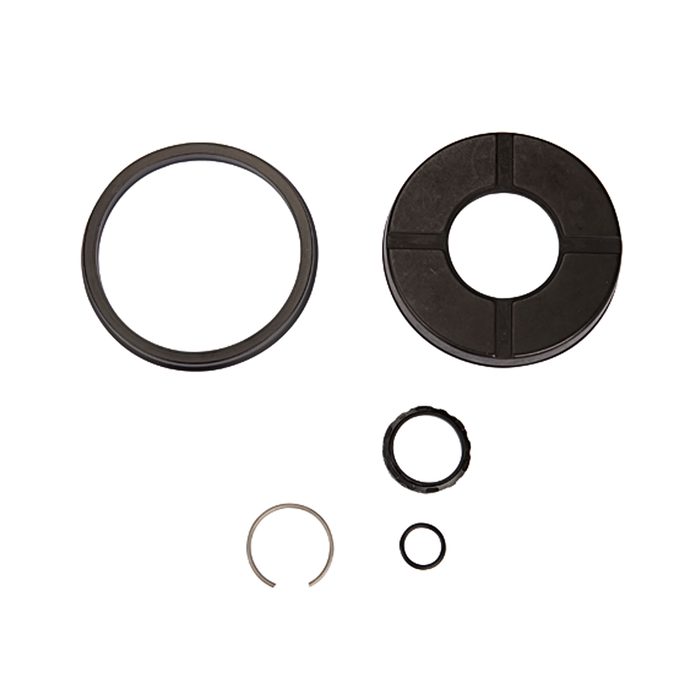

![[106286] RIEGLER Seal set (wear part) for standard cylinder, Piston Ø 40, NBR seal](/web/image/product.template/175343/image_128/%5B106286%5D%20RIEGLER%20Seal%20set%20%28wear%20part%29%20for%20standard%20cylinder%2C%20Piston%20%C3%98%2040%2C%20NBR%20seal?unique=0bb4c47)
|
Type number: 235.24-M |
8.20 € | |

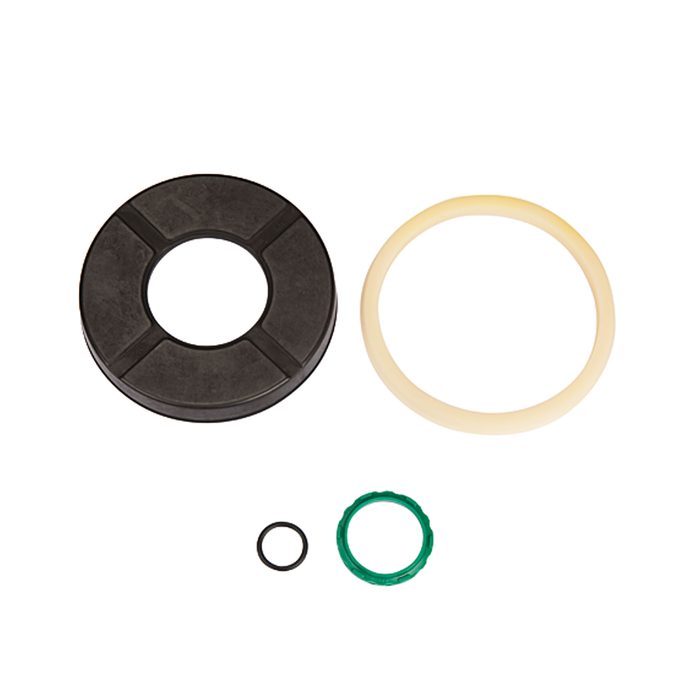

![[106293] RIEGLER Seal set (wear part) for standard cylinder, Piston Ø 40, PU seal](/web/image/product.template/175350/image_128/%5B106293%5D%20RIEGLER%20Seal%20set%20%28wear%20part%29%20for%20standard%20cylinder%2C%20Piston%20%C3%98%2040%2C%20PU%20seal?unique=e44014e)
|
