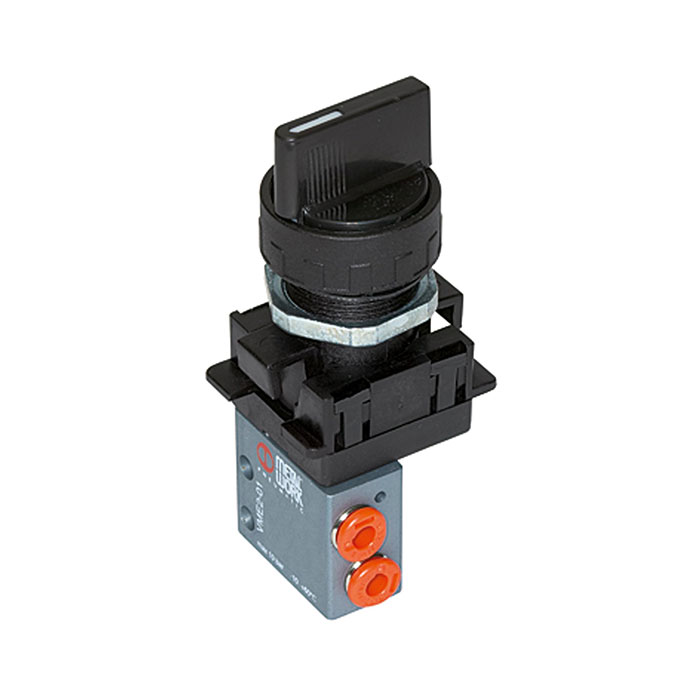

RIEGLER 3/2-way mini valve, manual, Rotating knob, NC, bistable, 4mm side
Type number: 512.213
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
3/2-way miniature valve, manual, rotary knob, NC, bistable, 4 mm lateral, operating pressure 0.5 - 10 bar, operating temperature -10 °C to 60 °C
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves VME series |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 10 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Spring | stainless steel |
| Actuating pressure at 6 bar | 8 N |
| Valve body | Aluminum |
| Push button | Nickel-plated brass |
| Function | 3/2 NC |
| Actuation | bistable |
| Nominal Ø | 2.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | Push-in connection Ø 4 mm on the side |
| RoHS material information | RoHS compliant |
| Flow rate | 35 Nl/min |
| Flow rate | 60 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106404] RIEGLER 3/2-way mini valve, manual, Rotating knob, NC, bistable, M5 side](/web/image/product.template/175461/image_128/%5B106404%5D%20RIEGLER%203-2-way%20mini%20valve%2C%20manual%2C%20Rotating%20knob%2C%20NC%2C%20bistable%2C%20M5%20side?unique=159f48f)
|
Type number: 512.214 |
43.51 € | |
![[106401] RIEGLER 3/2-way mini valve manual, Rotating knob, NC, monostable,4mm side](/web/image/product.template/175458/image_128/%5B106401%5D%20RIEGLER%203-2-way%20mini%20valve%20manual%2C%20Rotating%20knob%2C%20NC%2C%20monostable%2C4mm%20side?unique=7700fb0)
|
Type number: 512.203 |
43.98 € | |
![[106402] RIEGLER 3/2-way mini valve, manual, Rotating knob, NC, monostable,M5 side](/web/image/product.template/175459/image_128/%5B106402%5D%20RIEGLER%203-2-way%20mini%20valve%2C%20manual%2C%20Rotating%20knob%2C%20NC%2C%20monostable%2CM5%20side?unique=7700fb0)
|
Type number: 512.204 |
43.51 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

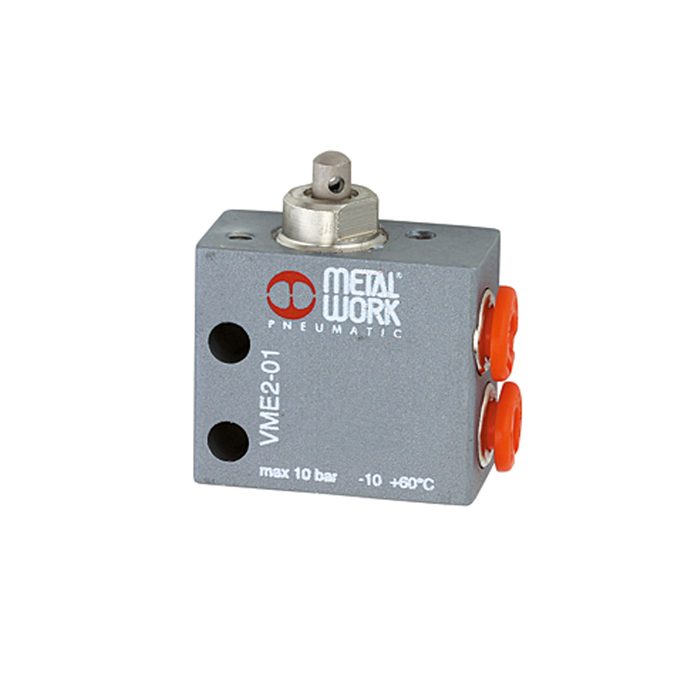

![[106387] RIEGLER 3/2-way miniature valve, Mechanical, Tappet, NC, 4 mm (side)](/web/image/product.template/175444/image_128/%5B106387%5D%20RIEGLER%203-2-way%20miniature%20valve%2C%20Mechanical%2C%20Tappet%2C%20NC%2C%204%20mm%20%28side%29?unique=7700fb0)
|
Type number: 511.131 |
19.24 € | |
![[106443] RIEGLER Adapter max. 2 valves, required for mounting on basic valve](/web/image/product.template/175500/image_128/%5B106443%5D%20RIEGLER%20Adapter%20max.%202%20valves%2C%20required%20for%20mounting%20on%20basic%20valve?unique=5a36da6)
|
Type number: A2V |
2.81 € | |

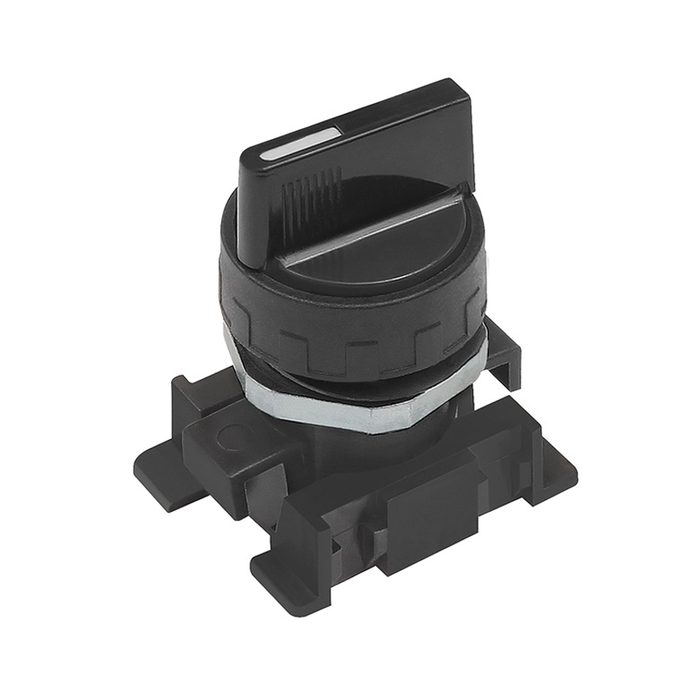

![[106447] RIEGLER Short rotating lever, black, 2 positions, bistable](/web/image/product.template/175504/image_128/%5B106447%5D%20RIEGLER%20Short%20rotating%20lever%2C%20black%2C%202%20positions%2C%20bistable?unique=7e66e54)
|
