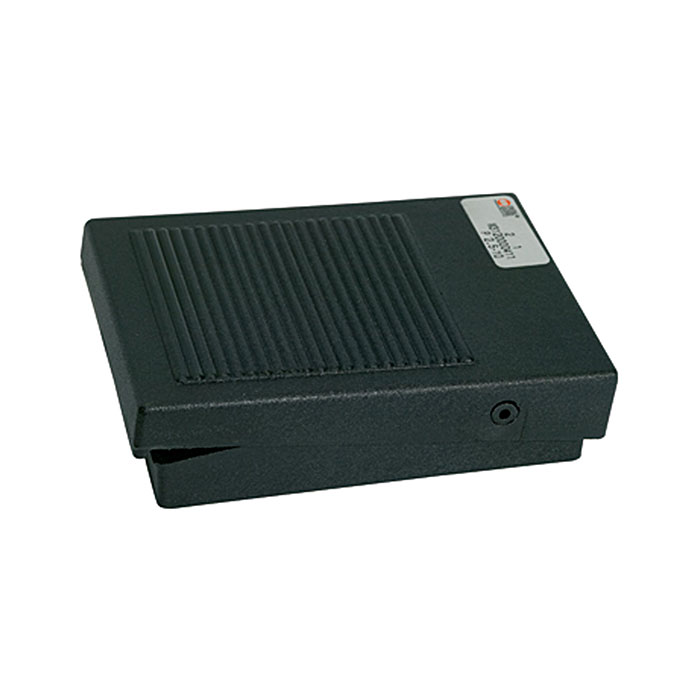

RIEGLER 3/2-way foot valve monostable, non-engaging without foot guard M5
Type number: 513.100
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-way foot valve monostable for pneumatic control, max. 10 bar, M5 - Type 513.100
The RIEGLER 3/2-way foot valve monostable, non-latching, without foot protection, M5 controls the direction of the compressed air flow for targeted movement sequences. The operating pressure range is 2.5 bar to 10 bar. The temperature range is between -10 °C and 60 °C. M5 connection thread - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. The flow rate is 95 Nl/min. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Series | Valves PEV series |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 10 bar |
| Symbol | 20 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | M5 |
| RoHS material information | RoHS compliant |
| Flow rate | 60 Nl/min |
| Flow rate | 95 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Flow rate measurement 1 | Flow rate at 6.3 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6.3 bar and Δp 1.0 bar |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

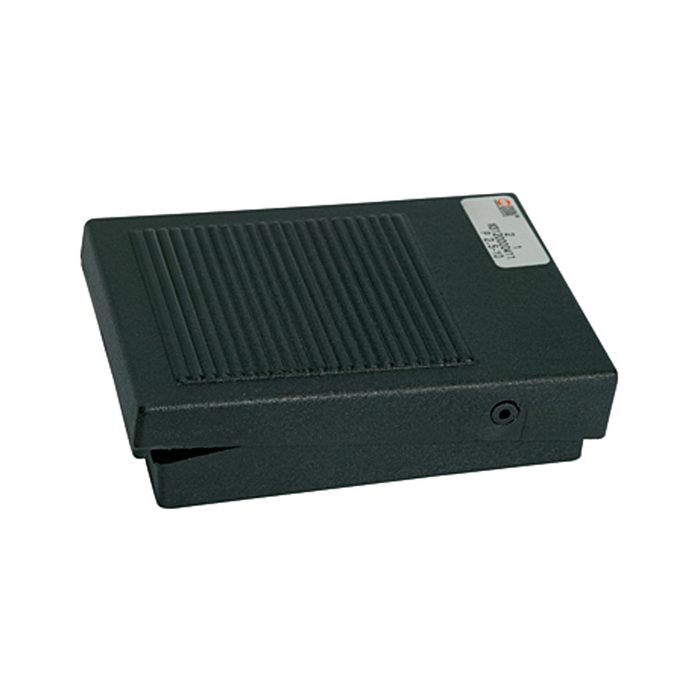

![[106663] RIEGLER 3/2-way foot valve monost. non-engaging without foot guard 4 mm](/web/image/product.template/175720/image_128/%5B106663%5D%20RIEGLER%203-2-way%20foot%20valve%20monost.%20non-engaging%20without%20foot%20guard%204%20mm?unique=4745bb0)
|
