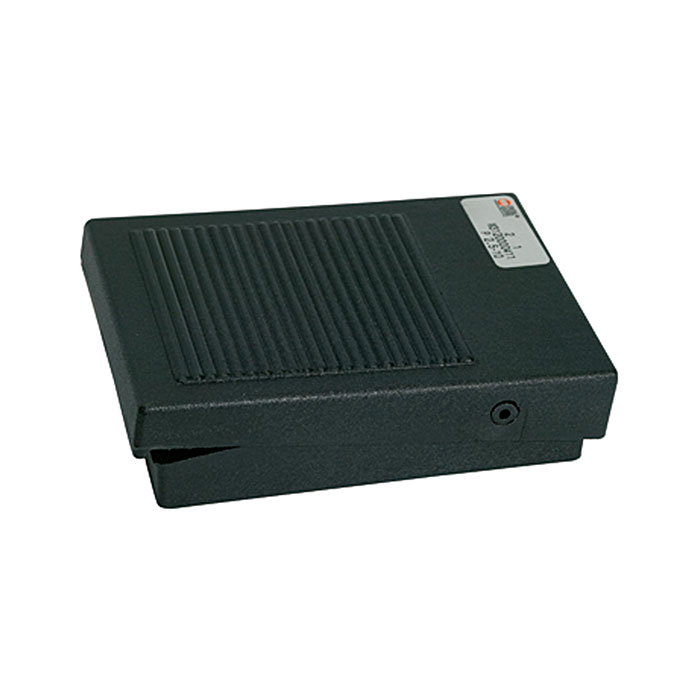

RIEGLER 3/2-way foot valve monost. non-engaging without foot guard 4 mm
Type number: 513.101
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-way foot valve monostable for pneumatic control, max. 10 bar, 4 mm - Type 513.101
The RIEGLER 3/2-way foot valve monostable, non-latching, without foot protection, 4 mm controls the direction of the compressed air flow for targeted movement sequences. The operating pressure range is 2.5 bar to 10 bar. The temperature range is between -10 °C and 60 °C. Connection thread 4 mm - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. The flow rate is 95 Nl/min. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Series | Valves PEV series |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 10 bar |
| Symbol | 20 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | 4 mm |
| RoHS material information | RoHS compliant |
| Flow rate | 60 Nl/min |
| Flow rate | 95 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Flow rate measurement 1 | Flow rate at 6.3 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6.3 bar and Δp 1.0 bar |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

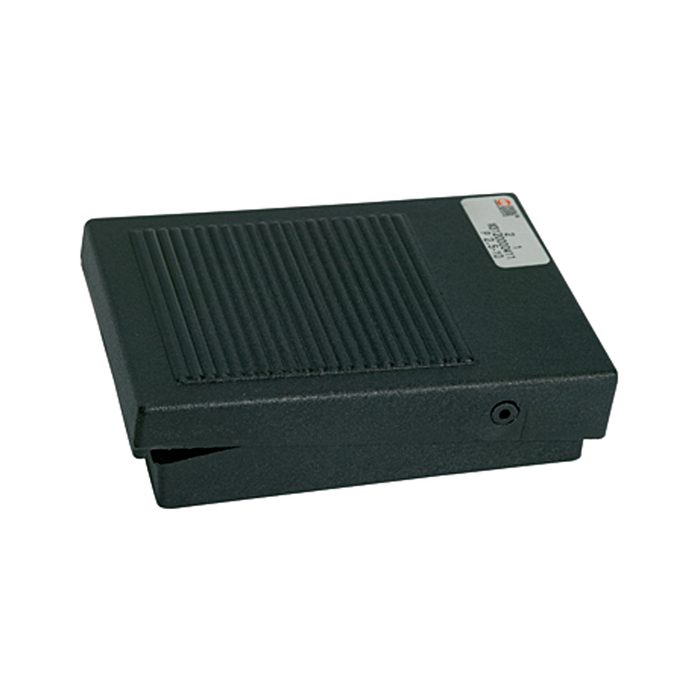

![[106662] RIEGLER 3/2-way foot valve monostable, non-engaging without foot guard M5](/web/image/product.template/175719/image_128/%5B106662%5D%20RIEGLER%203-2-way%20foot%20valve%20monostable%2C%20non-engaging%20without%20foot%20guard%20M5?unique=406a50e)
|
