RIEGLER Unidir. flow contr.valve Flow one-sided, thread-hose, G1/4 hoseØ6
Type number: 411.014-6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106721EAN :
4047322085144Weight :
0.05 kgRIEGLER One-way throttle check valve for pneumatic control, max. 10 bar, G 1/4 - Type 411.014-6
The RIEGLER one-way throttle check valve, threaded port, G 1/4, port Ø 6 regulates the speed of pneumatic actuators or blocks backflow. with NBR seals. Designed for a maximum operating pressure of 10 bar. The temperature range is between -20 °C and 60 °C. G 1/4 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Adjustment | manually or with a screwdriver |
| Thread | G 1/4 |
| Function | Exhaust air throttling |
| for hose Ø | 6 mm |
| A | 66.2 mm |
| B | 49 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Flow rate at 6.3 bar | 450 Nl/min |
| Vent flow rate at 6.3 | 550 Nl/min |
| I | 18.7 mm |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106722] RIEGLER Unidir. flow contr.valve Flow one-sided, thread-hose, G1/4 hoseØ8](/web/image/product.template/175779/image_128/%5B106722%5D%20RIEGLER%20Unidir.%20flow%20contr.valve%20Flow%20one-sided%2C%20thread-hose%2C%20G1-4%20hose%C3%988?unique=8934e96)
|
Type number: 411.014-8 |
16.77 € | |

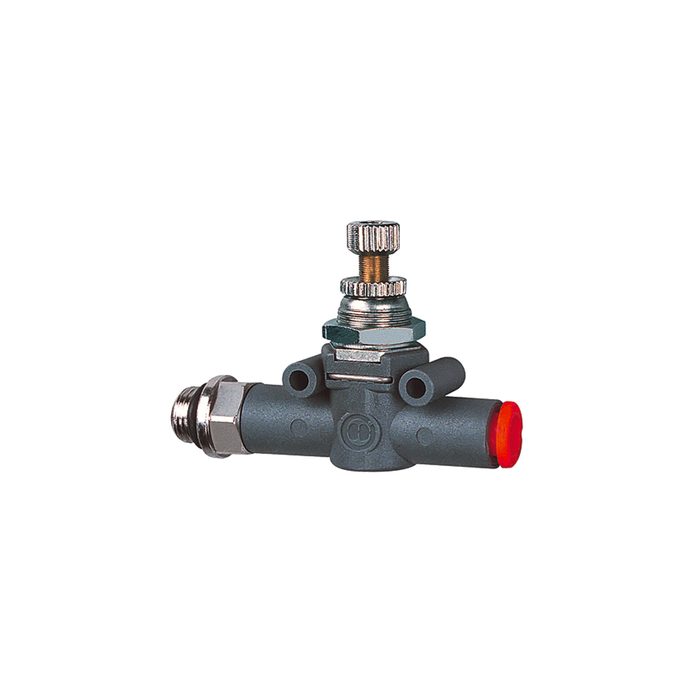

![[106718] RIEGLER Unidir. flow contr.valve Flow one-sided, thread-hose, G1/8 hoseØ4](/web/image/product.template/175775/image_128/%5B106718%5D%20RIEGLER%20Unidir.%20flow%20contr.valve%20Flow%20one-sided%2C%20thread-hose%2C%20G1-8%20hose%C3%984?unique=95f3249)
|
