RIEGLER Unidir. flow contr.valve Flow one-sided, thread-hose, G3/8 hoseØ8
Type number: 411.038-8
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
106723EAN :
4047322085199Weight :
0.08 kgThrottle check valve "lineonline", flow rate one-sided thread - hose G 3/8, for hose Ø 8 mm, operating pressure max. 10 bar
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Adjustment | manually or with a screwdriver |
| Thread | G 3/8 |
| Function | Exhaust air throttling |
| for hose Ø | 8 mm |
| A | 72.2 mm |
| B | 49 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Flow rate at 6.3 bar | 850 Nl/min |
| Vent flow rate at 6.3 | 950 Nl/min |
| I | 18.7 mm |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

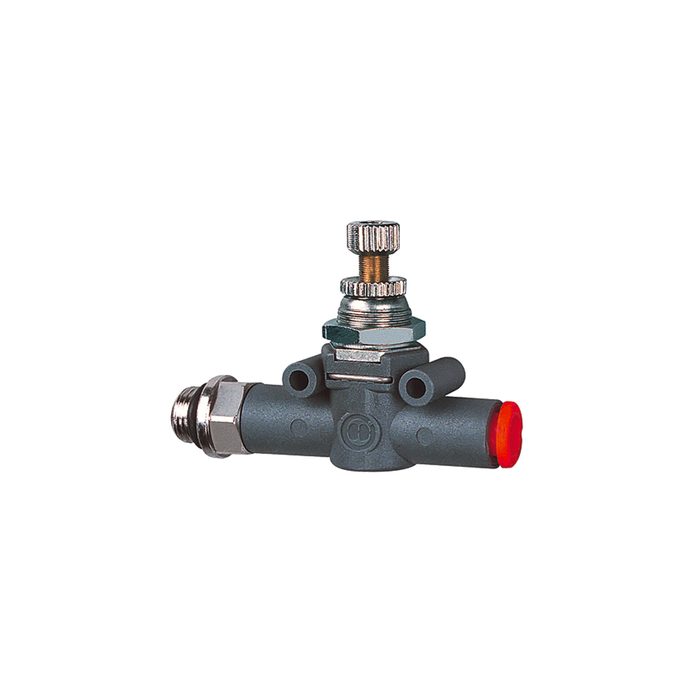

![[106721] RIEGLER Unidir. flow contr.valve Flow one-sided, thread-hose, G1/4 hoseØ6](/web/image/product.template/175778/image_128/%5B106721%5D%20RIEGLER%20Unidir.%20flow%20contr.valve%20Flow%20one-sided%2C%20thread-hose%2C%20G1-4%20hose%C3%986?unique=2d21066)
|
Type number: 411.014-6 |
13.89 € | |
![[106722] RIEGLER Unidir. flow contr.valve Flow one-sided, thread-hose, G1/4 hoseØ8](/web/image/product.template/175779/image_128/%5B106722%5D%20RIEGLER%20Unidir.%20flow%20contr.valve%20Flow%20one-sided%2C%20thread-hose%2C%20G1-4%20hose%C3%988?unique=1c3603e)
|
Type number: 411.014-8 |
17.01 € | |
![[106718] RIEGLER Unidir. flow contr.valve Flow one-sided, thread-hose, G1/8 hoseØ4](/web/image/product.template/175775/image_128/%5B106718%5D%20RIEGLER%20Unidir.%20flow%20contr.valve%20Flow%20one-sided%2C%20thread-hose%2C%20G1-8%20hose%C3%984?unique=c2a6c60)
|
Type number: 411.018-4 |
13.82 € | |
![[106719] RIEGLER Unidir. flow contr.valve Flow one-sided, thread-hose, G1/8 hoseØ6](/web/image/product.template/175776/image_128/%5B106719%5D%20RIEGLER%20Unidir.%20flow%20contr.valve%20Flow%20one-sided%2C%20thread-hose%2C%20G1-8%20hose%C3%986?unique=08f4db8)
|
Type number: 411.018-6 |
13.82 € | |
![[106720] RIEGLER Unidir. flow contr.valve Flow one-sided, thread-hose, G1/8 hoseØ8](/web/image/product.template/175777/image_128/%5B106720%5D%20RIEGLER%20Unidir.%20flow%20contr.valve%20Flow%20one-sided%2C%20thread-hose%2C%20G1-8%20hose%C3%988?unique=5e19d57)
|
Type number: 411.018-8 |
16.21 € | |
![[106717] RIEGLER Unidir. flow contr.valve Flow one-sided, thread-hose, M5 hoseØ4](/web/image/product.template/175774/image_128/%5B106717%5D%20RIEGLER%20Unidir.%20flow%20contr.valve%20Flow%20one-sided%2C%20thread-hose%2C%20M5%20hose%C3%984?unique=06ec935)
|
Type number: 411.005-4 |
13.82 € | |
