RIEGLER Bidir. flow contr. valve Flow both sides thread-hose M5 hose Ø4
Type number: 414.005-4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106734EAN :
4047322085311Weight :
0.02 kgRIEGLER Throttle valve on both sides for pneumatic control, max. 10 bar, M5 - Type 414.005-4
The RIEGLER throttle valve on both sides, threaded hose, M5, hose Ø 4 regulates the speed of pneumatic actuators or blocks return flow. with NBR seals. Designed for a maximum operating pressure of 10 bar. The temperature range is between -20 °C and 60 °C. M5 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Adjustment | manually or with a screwdriver |
| Thread | M5 |
| Function | Compressed air supply as required |
| for hose Ø | 4 mm |
| A | 47.7 mm |
| B | 35 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Flow rate at 6.3 bar | 155 Nl/min |
| Vent flow rate at 6.3 | 160 Nl/min |
| I | 12.7 mm |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106738] RIEGLER Bidir. flow contr. valve Flow both sides thread-hose G1/4 hose Ø6](/web/image/product.template/175795/image_128/%5B106738%5D%20RIEGLER%20Bidir.%20flow%20contr.%20valve%20Flow%20both%20sides%20thread-hose%20G1-4%20hose%20%C3%986?unique=89b8ba7)
|
Type number: 414.014-6 |
13.15 € | |
![[106739] RIEGLER Bidir. flow contr. valve Flow both sides thread-hose G1/4 hose Ø8](/web/image/product.template/175796/image_128/%5B106739%5D%20RIEGLER%20Bidir.%20flow%20contr.%20valve%20Flow%20both%20sides%20thread-hose%20G1-4%20hose%20%C3%988?unique=db85d57)
|
Type number: 414.014-8 |
15.99 € | |
![[106735] RIEGLER Bidir. flow contr. valve Flow both sides thread-hose G1/8 hose Ø4](/web/image/product.template/175792/image_128/%5B106735%5D%20RIEGLER%20Bidir.%20flow%20contr.%20valve%20Flow%20both%20sides%20thread-hose%20G1-8%20hose%20%C3%984?unique=32c25d9)
|
Type number: 414.018-4 |
13.10 € | |

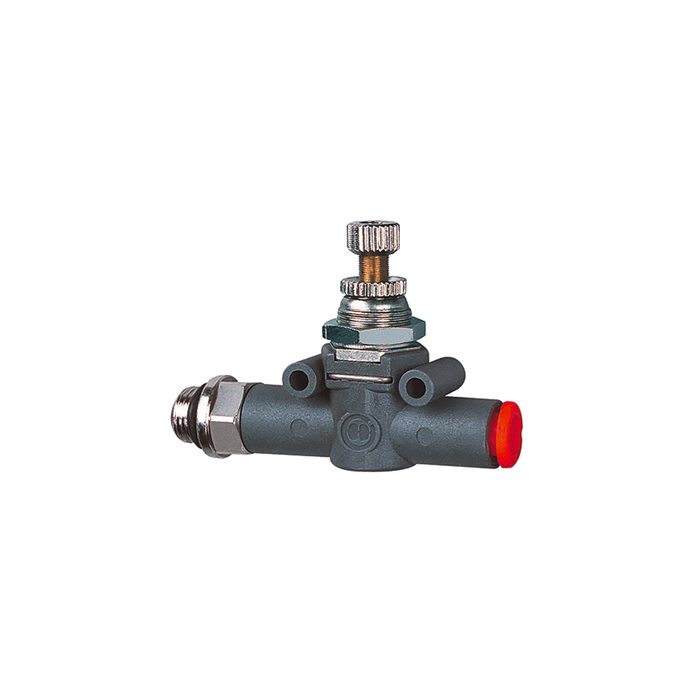

![[106736] RIEGLER Bidir. flow contr. valve Flow both sides thread-hose G1/8 hose Ø6](/web/image/product.template/175793/image_128/%5B106736%5D%20RIEGLER%20Bidir.%20flow%20contr.%20valve%20Flow%20both%20sides%20thread-hose%20G1-8%20hose%20%C3%986?unique=b0209d8)
|
