RIEGLER Bidir. flow contr. valve Flow both sides thread-hose G3/8 hose Ø8
Type number: 414.038-8
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106740EAN :
4047322085373Weight :
0.08 kgRIEGLER Throttle valve on both sides for pneumatic control, max. 10 bar, G 3/8 - Type 414.038-8
The RIEGLER throttle valve on both sides, threaded hose, G 3/8, hose Ø 8 regulates the speed of pneumatic actuators or blocks backflow. with NBR seals. Designed for a maximum operating pressure of 10 bar. The temperature range is between -20 °C and 60 °C. G 3/8 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Adjustment | manually or with a screwdriver |
| Thread | G 3/8 |
| Function | Compressed air supply as required |
| for hose Ø | 8 mm |
| A | 72.2 mm |
| B | 49 mm |
| Flow rate at 6.3 bar | 850 Nl/min |
| Vent flow rate at 6.3 | 950 Nl/min |
| I | 18.7 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

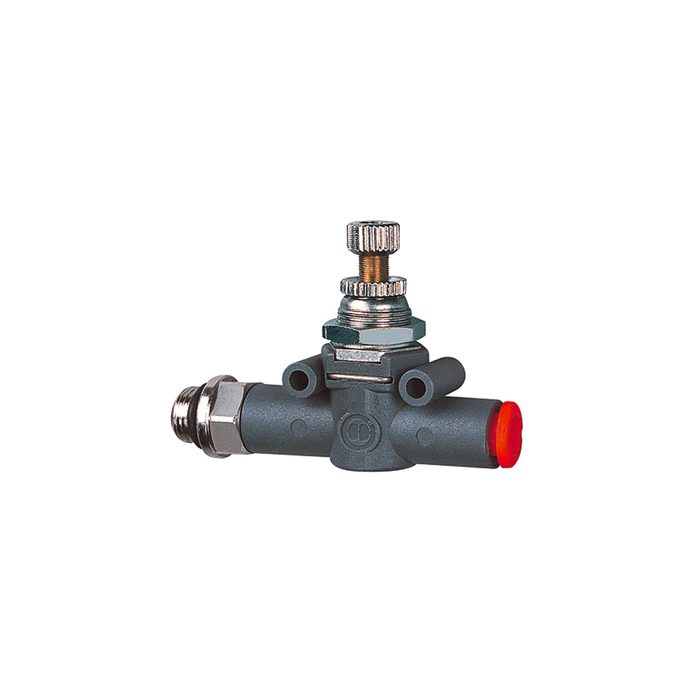

![[106738] RIEGLER Bidir. flow contr. valve Flow both sides thread-hose G1/4 hose Ø6](/web/image/product.template/175795/image_128/%5B106738%5D%20RIEGLER%20Bidir.%20flow%20contr.%20valve%20Flow%20both%20sides%20thread-hose%20G1-4%20hose%20%C3%986?unique=89b8ba7)
|
