RIEGLER Pressure regulator »lineonline«, G 1/8 (inlet), hose Ø 8 (outlet)
Type number: 421.018-8
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106744EAN :
4047322085625Weight :
0.07 kgRIEGLER Pressure regulator "lineonline" for pneumatic control, 1 bar - Type 421.018-8
The RIEGLER "lineonline" pressure regulator, G 1/8 (inlet), hose Ø 8 (outlet) regulates the speed of pneumatic drives or blocks backflow. with NBR seals. The operating pressure range is 2 bar to 10 bar. The control range extends from 1 bar to 8 bar. The temperature range is between -20 °C and 60 °C. G 1/8 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Operating pressure min. | 2 bar |
| Max. operating pressure | 10 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Thread | G 1/8 |
| Control range min. | 1 bar |
| Control range max. | 8 bar |
| for hose Ø | 8 mm |
| A | 61.5 mm |
| B | 52 mm |
| Flow rate at 6.3 bar | 600 Nl/min |
| I | 14.6 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

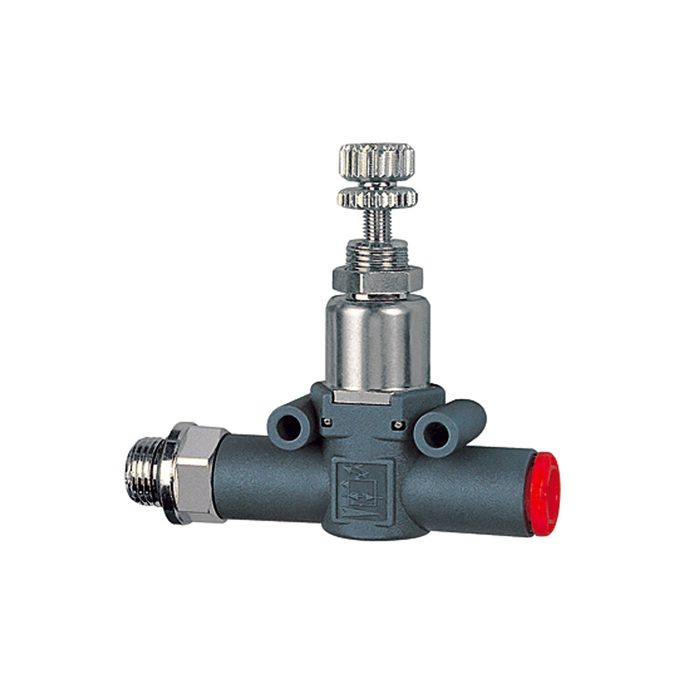

![[106745] RIEGLER Pressure regulator »lineonline«, G 1/4 (inlet), hose Ø 6 (outlet)](/web/image/product.template/175802/image_128/%5B106745%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBlineonline%C2%AB%2C%20G%201-4%20%28inlet%29%2C%20hose%20%C3%98%206%20%28outlet%29?unique=85a7db1)
|
