RIEGLER Pressure regulator »lineonline«, G 1/4 (inlet), hose Ø 6 (outlet)
Type number: 421.014-6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106745EAN :
4047322085595Weight :
0.04 kgRIEGLER Pressure regulator "lineonline" for pneumatic control, 1 bar - Type 421.014-6
The RIEGLER "lineonline" pressure regulator, G 1/4 (inlet), hose Ø 6 (outlet) regulates the speed of pneumatic drives or blocks backflow. with NBR seals. The operating pressure range is 2 bar to 10 bar. The control range extends from 1 bar to 8 bar. The temperature range is between -20 °C and 60 °C. G 1/4 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Operating pressure min. | 2 bar |
| Max. operating pressure | 10 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Thread | G 1/4 |
| Control range min. | 1 bar |
| Control range max. | 8 bar |
| for hose Ø | 6 mm |
| A | 66.2 mm |
| B | 58 mm |
| Flow rate at 6.3 bar | 400 Nl/min |
| I | 18.7 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106746] RIEGLER Pressure regulator »lineonline«, G 1/4 (inlet), hose Ø 8 (outlet)](/web/image/product.template/175803/image_128/%5B106746%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBlineonline%C2%AB%2C%20G%201-4%20%28inlet%29%2C%20hose%20%C3%98%208%20%28outlet%29?unique=768f8cc)
|
Type number: 421.014-8 |
32.78 € | |
![[106743] RIEGLER Pressure regulator »lineonline«, G 1/8 (inlet), hose Ø 6 (outlet)](/web/image/product.template/175800/image_128/%5B106743%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBlineonline%C2%AB%2C%20G%201-8%20%28inlet%29%2C%20hose%20%C3%98%206%20%28outlet%29?unique=6a8dcab)
|
Type number: 421.018-6 |
29.85 € | |
![[106744] RIEGLER Pressure regulator »lineonline«, G 1/8 (inlet), hose Ø 8 (outlet)](/web/image/product.template/175801/image_128/%5B106744%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBlineonline%C2%AB%2C%20G%201-8%20%28inlet%29%2C%20hose%20%C3%98%208%20%28outlet%29?unique=f6a15d7)
|
Type number: 421.018-8 |
32.00 € | |

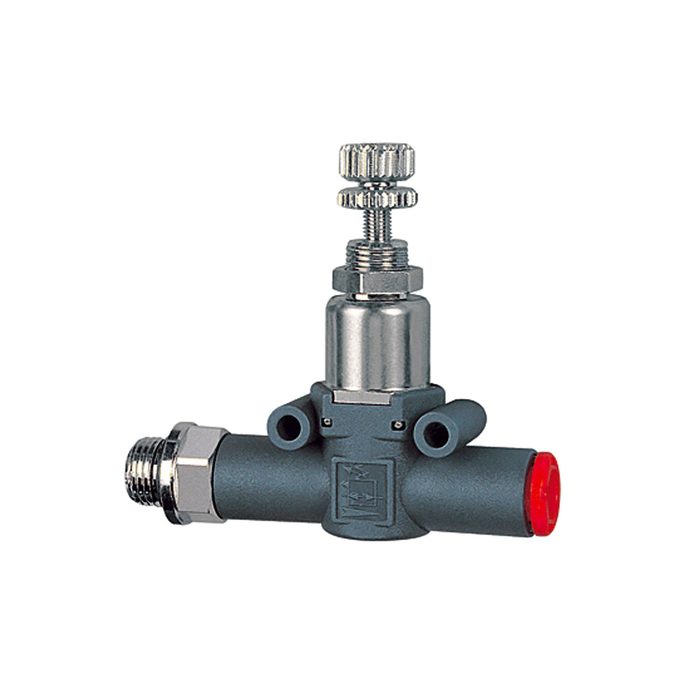

![[106747] RIEGLER Pressure regulator »lineonline«, G 3/8 (inlet), hose Ø 8 (outlet)](/web/image/product.template/175804/image_128/%5B106747%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBlineonline%C2%AB%2C%20G%203-8%20%28inlet%29%2C%20hose%20%C3%98%208%20%28outlet%29?unique=3d662ac)
|
Type number: 421.038-8 |
34.97 € | |
