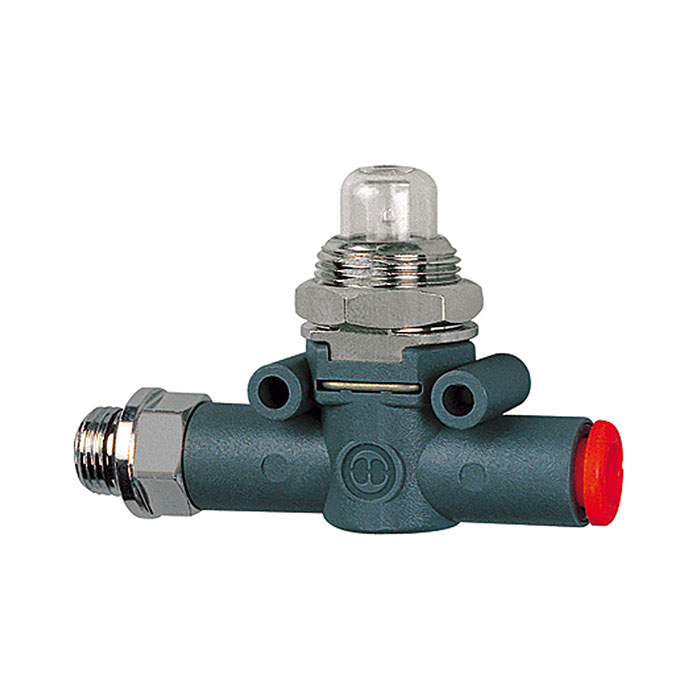

RIEGLER Pressure display »lineonline«, Thread - hose, G 1/4, for hose Ø 8
Type number: 471.014-8
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106788EAN :
4047322091879Weight :
0.05 kgRIEGLER Pressure indicator for pneumatic control, max. 10 bar, G 1/4 - Type 471.014-8
The RIEGLER pressure indicator, thread (in) - hose (out), G 1/4, slot 8 controls the speed of pneumatic actuators or blocks backflow. with NBR seals. The operating pressure range is 2 bar to 10 bar. The temperature range is between -20 °C and 60 °C. G 1/4 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Operating pressure min. | 2 bar |
| Max. operating pressure | 10 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Thread | G 1/4 |
| for hose Ø | 8 mm |
| A | 70.6 mm |
| B | 41 mm |
| I | 18.7 mm |
| Class name | PLUS |
