RIEGLER Pressure display »lineonline«, Thread - hose, G 3/8, for hose Ø 8
Type number: 471.038-8
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106789EAN :
4047322091909Weight :
0.06 kgRIEGLER Pressure indicator for pneumatic control, max. 10 bar, G 3/8 - Type 471.038-8
The RIEGLER pressure indicator, thread (in) - hose (out), G 3/8, slot 8 controls the speed of pneumatic actuators or blocks backflow. with NBR seals. The operating pressure range is 2 bar to 10 bar. The temperature range is between -20 °C and 60 °C. G 3/8 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Operating pressure min. | 2 bar |
| Max. operating pressure | 10 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Thread | G 3/8 |
| for hose Ø | 8 mm |
| A | 72.2 mm |
| B | 41 mm |
| I | 18.7 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106787] RIEGLER Pressure display »lineonline«, Thread - hose, G 1/4, for hose Ø 6](/web/image/product.template/175844/image_128/%5B106787%5D%20RIEGLER%20Pressure%20display%20%C2%BBlineonline%C2%AB%2C%20Thread%20-%20hose%2C%20G%201-4%2C%20for%20hose%20%C3%98%206?unique=2ebfd72)
|
Type number: 471.014-6 |
18.84 € | |
![[106788] RIEGLER Pressure display »lineonline«, Thread - hose, G 1/4, for hose Ø 8](/web/image/product.template/175845/image_128/%5B106788%5D%20RIEGLER%20Pressure%20display%20%C2%BBlineonline%C2%AB%2C%20Thread%20-%20hose%2C%20G%201-4%2C%20for%20hose%20%C3%98%208?unique=3ed518b)
|
Type number: 471.014-8 |
20.19 € | |
![[106785] RIEGLER Pressure display »lineonline«, Thread - hose, G 1/8, for hose Ø 6](/web/image/product.template/175842/image_128/%5B106785%5D%20RIEGLER%20Pressure%20display%20%C2%BBlineonline%C2%AB%2C%20Thread%20-%20hose%2C%20G%201-8%2C%20for%20hose%20%C3%98%206?unique=b85b60e)
|
Type number: 471.018-6 |
18.58 € | |

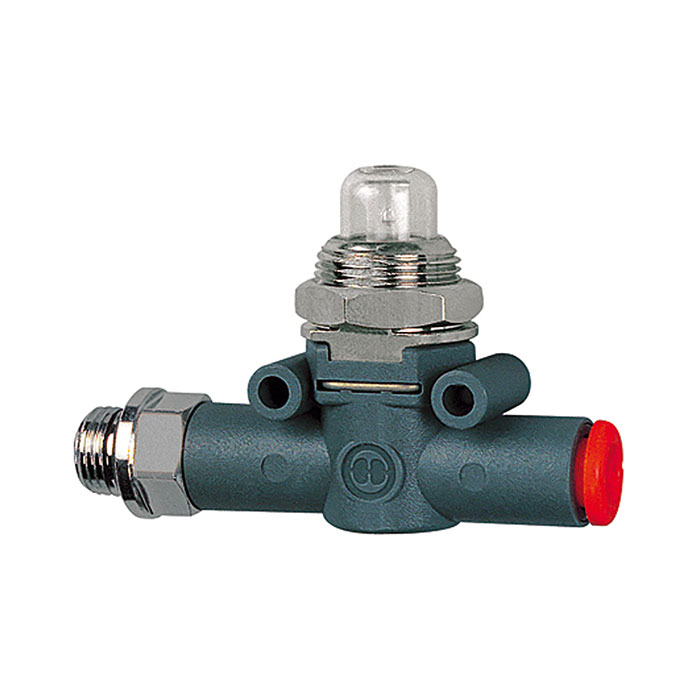

![[106786] RIEGLER Pressure display »lineonline«, Thread - hose, G 1/8, for hose Ø 8](/web/image/product.template/175843/image_128/%5B106786%5D%20RIEGLER%20Pressure%20display%20%C2%BBlineonline%C2%AB%2C%20Thread%20-%20hose%2C%20G%201-8%2C%20for%20hose%20%C3%98%208?unique=b7ce196)
|
