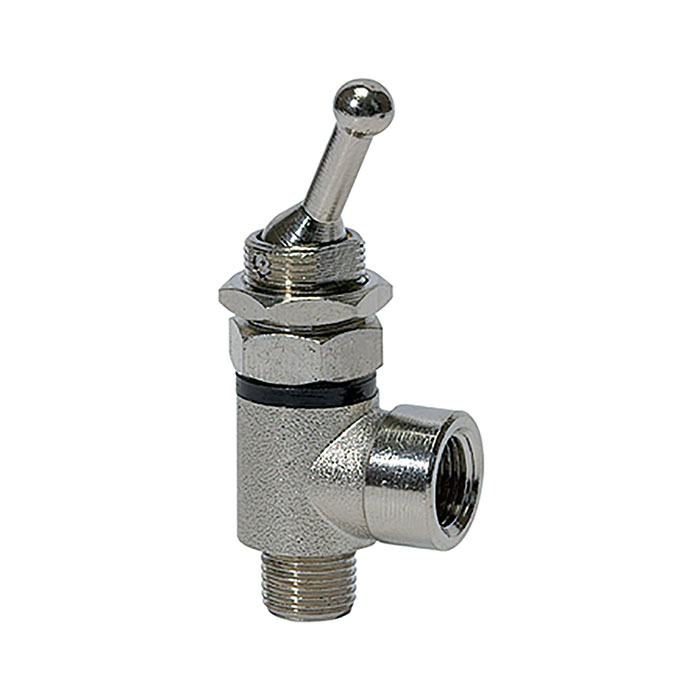

RIEGLER 2/2-way toggle lever valve, both sides, screw connection, G 1/8

https://www.filcom-technik.de/web/image/product.template/176066/image_1920?unique=b7da967

Type number: 360.018-1/8

25.68 € 25.68 EUR 25.68 € VAT Included

29.97 € VAT Included

Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.

Product no. :

107009

EAN :

4047322181204

Category :

Toggle Valves

Weight :

0.05 kg

2/2-way toggle valve, on both sides, threaded connection hose G 1/8 female, G 1/8, PN max. 8 bar, temp. -20 °C to 80 °C, MS nickel-plated.

Temperature range min. -20 °C
Temperature range max. 80 °C
Sealing material NBR
Operating pressure min. 0 bar
Max. operating pressure 8 bar
Interior parts Brass bright
Banjo bolt Nickel-plated brass
Swivel arm Nickel-plated brass
Captive seals Polyamide glass fiber reinforced
Rocker arm Nickel-plated brass
Thread G 1/8
Control panel thread M12x0.75 (sheet thickness max. 4 mm)
SW 14 mm
Function 2/2-way
for hose G 1/8 female thread mm
Connection type Threaded connection
B 55 mm
C 16 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
Connection Pressure connection on both sides
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N, CW617N
Class name PLUS
