RIEGLER Kamlok quick-connect socket, C type, Alu, I.D. 75, for plug Ø 92
Type number: 1112.30
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108032EAN :
4047322403108Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.73 kgRIEGLER Kamlok quick coupling socket for compressed air supply, max. 16 bar - Type 1112.30
The RIEGLER Kamlok quick coupling socket, type C, aluminum, LW 75, for plug Ø 92 enables quick connection according to the Kamlock system. with NBR seals, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 68 °C. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 68 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| for inner hose Ø | 75 |
| for plug Ø | 92 mm |
| A | 131.8 mm |
| C | 159 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108033] RIEGLER Kamlok quick-connect socket, C type, Alu, I.D. 100, for plug Ø120](/web/image/product.template/191931/image_128/%5B108033%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%2C%20C%20type%2C%20Alu%2C%20I.D.%20100%2C%20for%20plug%20%C3%98120?unique=549150c)
|
Type number: 1112.40 |
25.43 € | |
![[108026] RIEGLER Kamlok quick-connect socket, C type, Alu, I.D. 19, for plug Ø 32](/web/image/product.template/191924/image_128/%5B108026%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%2C%20C%20type%2C%20Alu%2C%20I.D.%2019%2C%20for%20plug%20%C3%98%2032?unique=4899220)
|
Type number: 1112.34 |
5.68 € | |
![[108027] RIEGLER Kamlok quick-connect socket, C type, Alu, I.D. 25, for plug Ø 37](/web/image/product.template/191925/image_128/%5B108027%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%2C%20C%20type%2C%20Alu%2C%20I.D.%2025%2C%20for%20plug%20%C3%98%2037?unique=089fcd3)
|
Type number: 1112.10 |
6.19 € | |
![[108028] RIEGLER Kamlok quick-connect socket, C type, Alu, I.D. 32, for plug Ø 45](/web/image/product.template/191926/image_128/%5B108028%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%2C%20C%20type%2C%20Alu%2C%20I.D.%2032%2C%20for%20plug%20%C3%98%2045?unique=4ab932d)
|
Type number: 1112.114 |
8.46 € | |

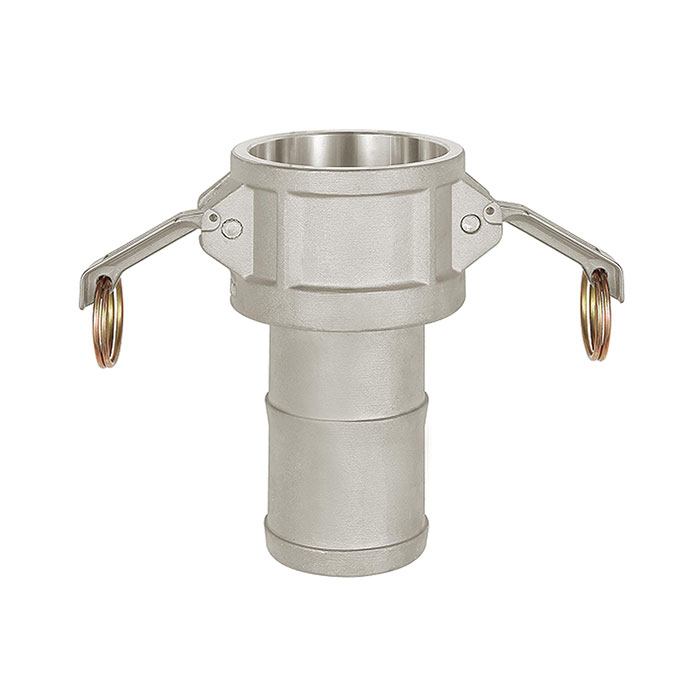

![[108029] RIEGLER Kamlok quick-connect socket, C type, Alu, I.D. 38, for plug Ø 53](/web/image/product.template/191927/image_128/%5B108029%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%2C%20C%20type%2C%20Alu%2C%20I.D.%2038%2C%20for%20plug%20%C3%98%2053?unique=12aebbc)
|
