RIEGLER Kamlok quick-connect socket, C type, Alu, I.D. 100, for plug Ø120
Type number: 1112.40
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108033EAN :
4047322403115Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.95 kgRIEGLER Kamlok quick coupling socket for compressed air supply, max. 16 bar - Type 1112.40
The RIEGLER Kamlok quick coupling socket, type C, aluminum, LW 100, f. plug Ø 120 enables quick connection according to the Kamlock system. with seals made of NBR, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 68 °C. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 68 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| for inner hose Ø | 100 |
| for plug Ø | 120 mm |
| A | 159.9 mm |
| C | 162.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108026] RIEGLER Kamlok quick-connect socket, C type, Alu, I.D. 19, for plug Ø 32](/web/image/product.template/191924/image_128/%5B108026%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%2C%20C%20type%2C%20Alu%2C%20I.D.%2019%2C%20for%20plug%20%C3%98%2032?unique=4899220)
|
Type number: 1112.34 |
5.68 € | |
![[108027] RIEGLER Kamlok quick-connect socket, C type, Alu, I.D. 25, for plug Ø 37](/web/image/product.template/191925/image_128/%5B108027%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%2C%20C%20type%2C%20Alu%2C%20I.D.%2025%2C%20for%20plug%20%C3%98%2037?unique=089fcd3)
|
Type number: 1112.10 |
6.19 € | |
![[108028] RIEGLER Kamlok quick-connect socket, C type, Alu, I.D. 32, for plug Ø 45](/web/image/product.template/191926/image_128/%5B108028%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%2C%20C%20type%2C%20Alu%2C%20I.D.%2032%2C%20for%20plug%20%C3%98%2045?unique=4ab932d)
|
Type number: 1112.114 |
8.46 € | |
![[108029] RIEGLER Kamlok quick-connect socket, C type, Alu, I.D. 38, for plug Ø 53](/web/image/product.template/191927/image_128/%5B108029%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%2C%20C%20type%2C%20Alu%2C%20I.D.%2038%2C%20for%20plug%20%C3%98%2053?unique=12aebbc)
|
Type number: 1112.112 |
9.33 € | |
![[108030] RIEGLER Kamlok quick-connect socket, C type, Alu, I.D. 50, for plug Ø 63](/web/image/product.template/191928/image_128/%5B108030%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%2C%20C%20type%2C%20Alu%2C%20I.D.%2050%2C%20for%20plug%20%C3%98%2063?unique=6b2e067)
|
Type number: 1112.20 |
11.48 € | |
![[108031] RIEGLER Kamlok quick-connect socket, C type, Alu, I.D. 63, for plug Ø 76](/web/image/product.template/191929/image_128/%5B108031%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%2C%20C%20type%2C%20Alu%2C%20I.D.%2063%2C%20for%20plug%20%C3%98%2076?unique=c6d5281)
|
Type number: 1112.212 |
13.74 € | |

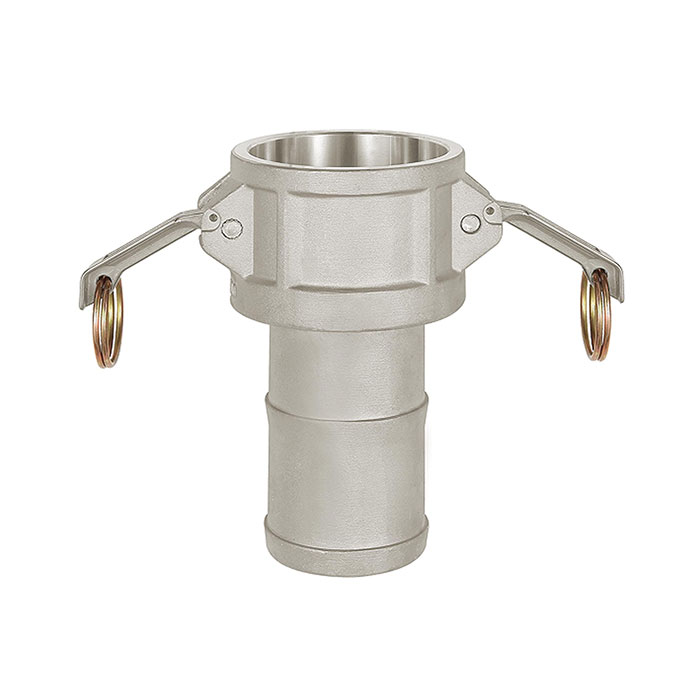

![[108032] RIEGLER Kamlok quick-connect socket, C type, Alu, I.D. 75, for plug Ø 92](/web/image/product.template/191930/image_128/%5B108032%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%2C%20C%20type%2C%20Alu%2C%20I.D.%2075%2C%20for%20plug%20%C3%98%2092?unique=5401ca0)
|
