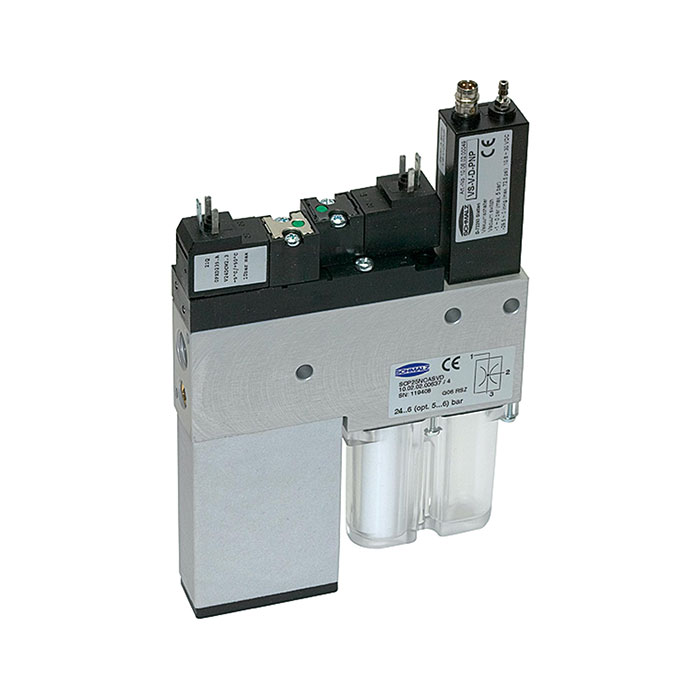

RIEGLER Compact ejector »CP«, Digital vacuum switch, Nozzle size 2 mm, NC
Type number: CP 203
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Compact ejector "CP", digital vacuum switch, nozzle size 2.0 mm, NC, compressed air/vacuum connection G 1/4 IG, G 3/8 IG, PN 5 - 6 bar
| Operating pressure min. | 5 bar |
| Max. operating pressure | 6 bar |
| Base body | Anodized aluminum |
| Integrated | NC blow-off valve, filter, silencer, non-return valve |
| Height | 168 mm |
| Width | 22 mm |
| Length | 113 mm |
| Nozzle size | 2 mm |
| Compressed air connection | G 1/4 FEMALE THREAD |
| Vacuum connection | G 3/8 IG |
| Rest position suction valve | NC |
| Suction capacity max. | 116 l/min |
| Air consumption suction | 190 l/min |
| Weight | 465 g |
| Class name | MAX |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

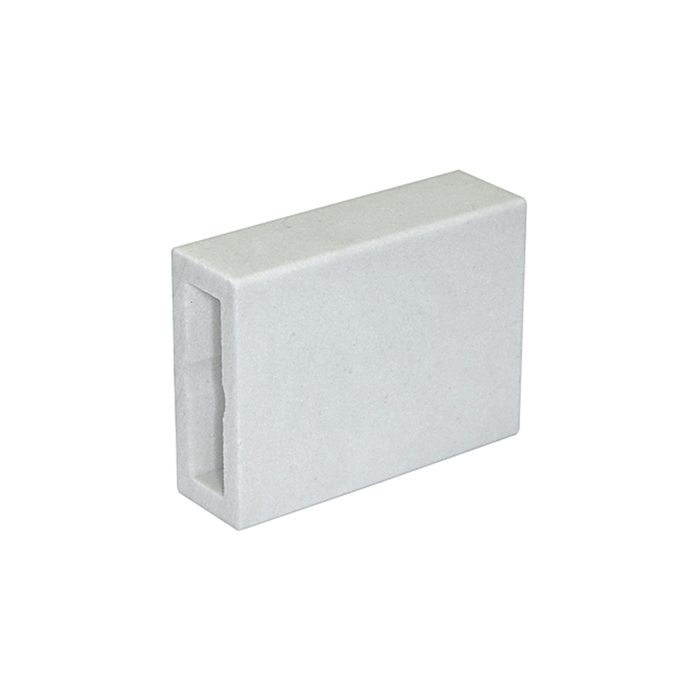

![[108417] RIEGLER Replacement silencer for compact ejector type »Compact pump«](/web/image/product.template/192314/image_128/%5B108417%5D%20RIEGLER%20Replacement%20silencer%20for%20compact%20ejector%20type%20%C2%BBCompact%20pump%C2%AB?unique=ce1a69c)
|
Type number: ASK 651 |
28.95 € | |
