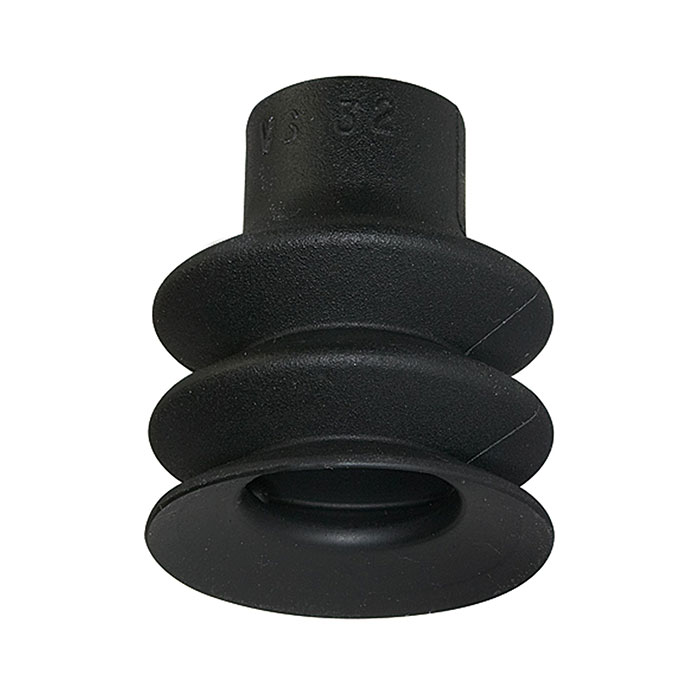

RIEGLER Bellows suction cup, Round 2.5 folds, Material NBR, »FG« Ø 52 mm
Type number: FG 2552-1
EAN: 4047322212427
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.

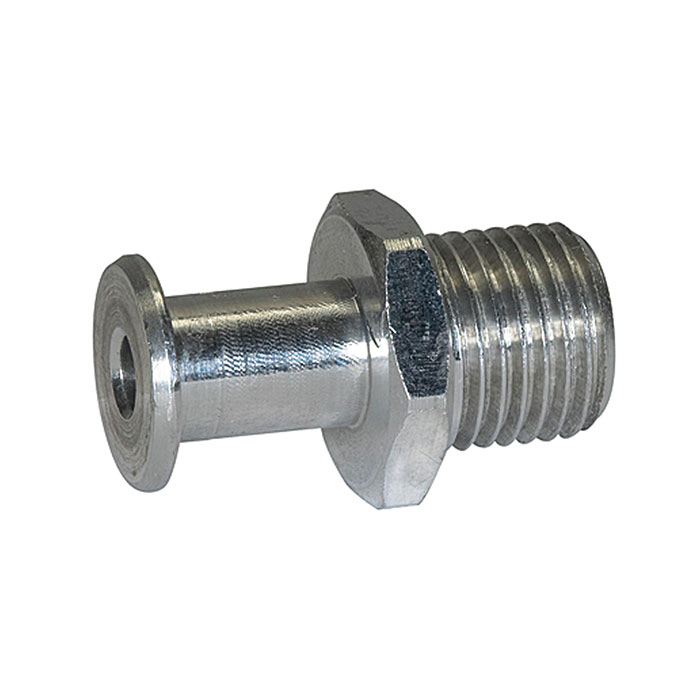

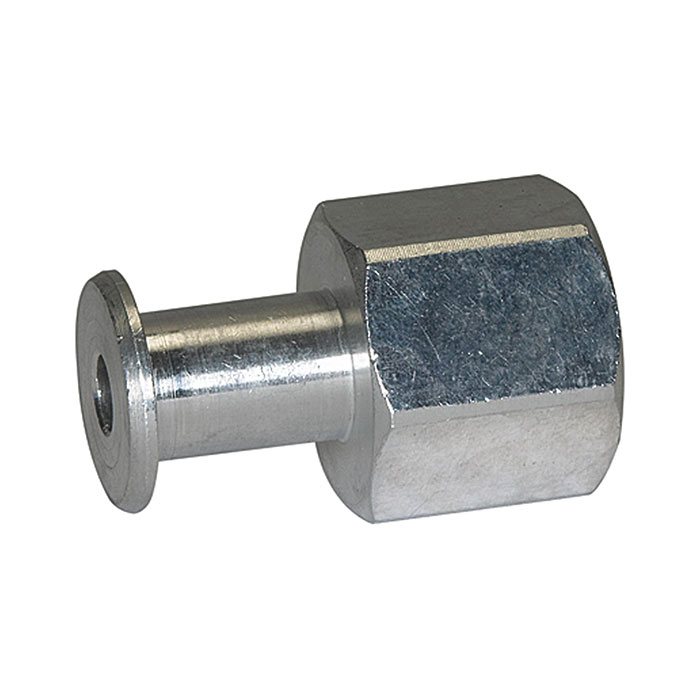

Bellows suction cup, round 2.5 folds, material NBR, "FG", suitable for connection nipple female G 1/4, suitable for connection nipple male G 1/4, Ø52mm
| Diameter | 52 mm |
| Suitable connection nipple IG | G 1/4 |
| Suitable connection nipple AG | G 1/4 |
| Overall height with nipple IG | 64.0 mm |
| Overall height with nipple AG | 53.0 mm |
| Suction power | 27 N |
| Volume | 62 cm³ |
| Workpiece radius convex min. | 75 mm |
| Recommended hose Ø | 6 mm |
| Tear-off force | 96 N |
